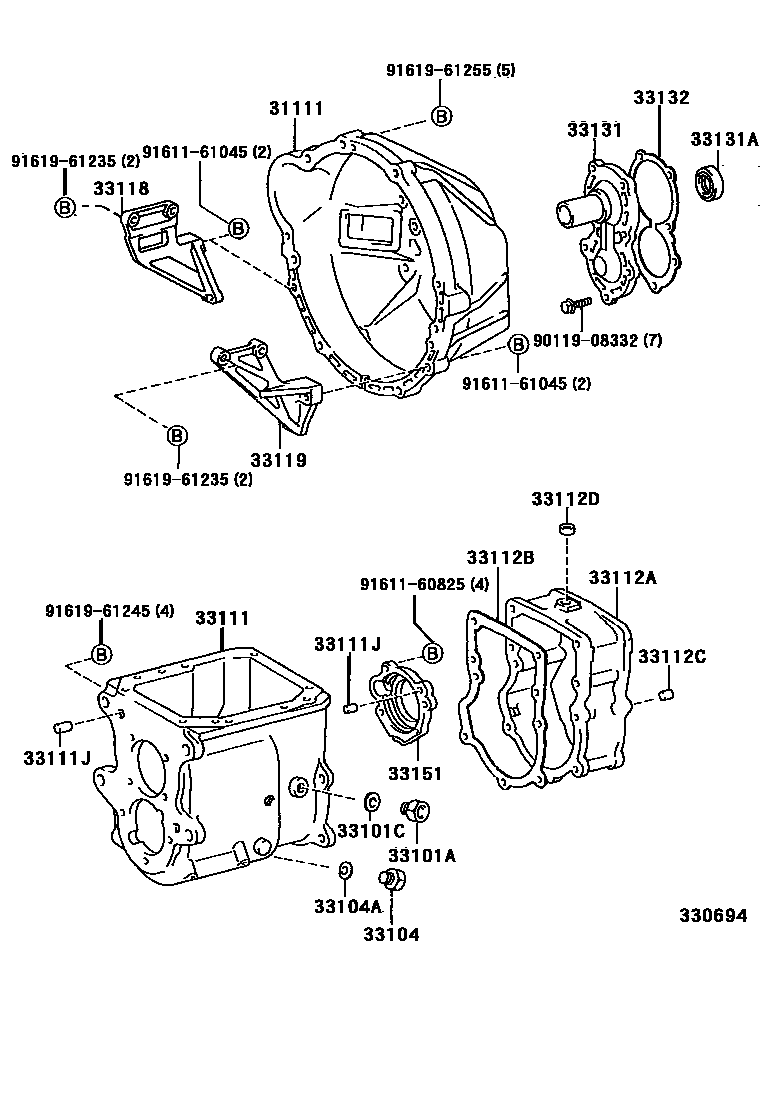

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H55 0002 1H55 0003 1R150,R151 0004 1R151 0005 1G52 0006 1R150 0007 1R151

31111HOUSING, CLUTCH

main31111-25030iLJ7#199001-199111

main31111-35010iRJ7#199001-199305

sub31111-35011

main31111-35011iRJ7#199305-199604

main31111-60160iBJ73199001-199402

main31111-60230iHZJ7#199001-199908

main31111-60240iPZJ7#199001-199110

sub31111-60241

main31111-60241iPZJ75199110-199208

main31111-60260iLJ70199111-199501

main31111-60270iKZJ7#199305-199604

main31111-60321iHZJ7#199908-200108

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iHZJ7#199001-200108

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iHZJ7#199001-200108

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLJ73199001-200108

main90341-18057iHZJ7#199001-199908

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

33111CASE, MANUAL TRANSMISSION

main33101-35050iRJ7#199001-199604

sub33101-35051

main33101-60020iLJ7#,PZJ7#199001-199501

main33101-60030iKZJ7#199305-199512

main33101-60040iHZJ7#199908-200108

sub33101-60041

main33101-60060iKZJ7#199512-199604

main33111-60080iBJ73,HZJ7#199001-199908

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iBJ73,HZJ7#199001-199908

L=14,OD=10

main90250-12002iRJ7#199001-200108

L=16,OD=12

main90250-12146iBJ73,HZJ7#199001-199908

L=17,OD=12

main90250-12216iBJ73,HZJ7#199001-199908

L=14,OD=12

33112AADAPTER, TRANSFER

main36117-60021iBJ73,HZJ7#199001-199908

main36117-60050iKZJ7#199001-199604

main36117-60060iRJ7#199001-199604

33112BGASKET, TRANSFER ADAPTER

main33142-60020iBJ73,HZJ7#199001-199908

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12216iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199908

33112DSEAL, OIL(FOR TRANSFER ADAPTER)

main90312-17001iBJ73,HZJ7#199001-199908

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLJ7#199001-199501

main33118-35020iRJ7#199001-199604

main33118-36021iBJ73199001-199402

main33118-60030iHZJ7#199001-199801

sub33118-60060

main33118-60040iPZJ7#199001-199208

main33118-60050iKZJ7#199305-199604

main33118-60060iHZJ7#199801-200108

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLJ7#199001-199501

main33119-35021iRJ7#199001-199604

main33119-36041iBJ73199001-199402

sub33119-36042

main33119-60030iHZJ7#199001-199111

sub33119-60031

main33119-60031iHZJ7#199111-199801

sub33119-60070

main33119-60040iPZJ7#199001-199208

main33119-60050iKZJ7#199305-199604

main33119-60070iHZJ7#199801-200108

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iRJ7#199001-199604

main33131-35030iLJ7#199001-199008

sub33131-35031

main33131-35031iLJ73199008-199604

sub33131-35032

main33131-60040iBJ73,HZJ7#199001-199908

main33131-60080iHZJ71,74,78,79,PZJ7#199001-200108

sub33131-60081

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iRJ7#199001-199007

sub90311-30014

main90311-30014iRJ7#199007-199604

main90311-32012iHZJ7#199001-200108

main90311-32013iBJ73,HZJ7#199001-199908

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iRJ7#199001-199604

main33132-60020iBJ73,HZJ7#199001-199908

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iLJ73199001-200108

main33151-35030iRJ7#199001-199604

main33151-60010iBJ73,HZJ7#199001-199908

9011908332

main90119-08332

9161160825

main91611-60825

9161161045

main91611-61045

9161961235

main91619-61235

9161961245

main91619-61245

9161961255

main91619-61255

23 parts on this diagram · 7 diagrams in section
