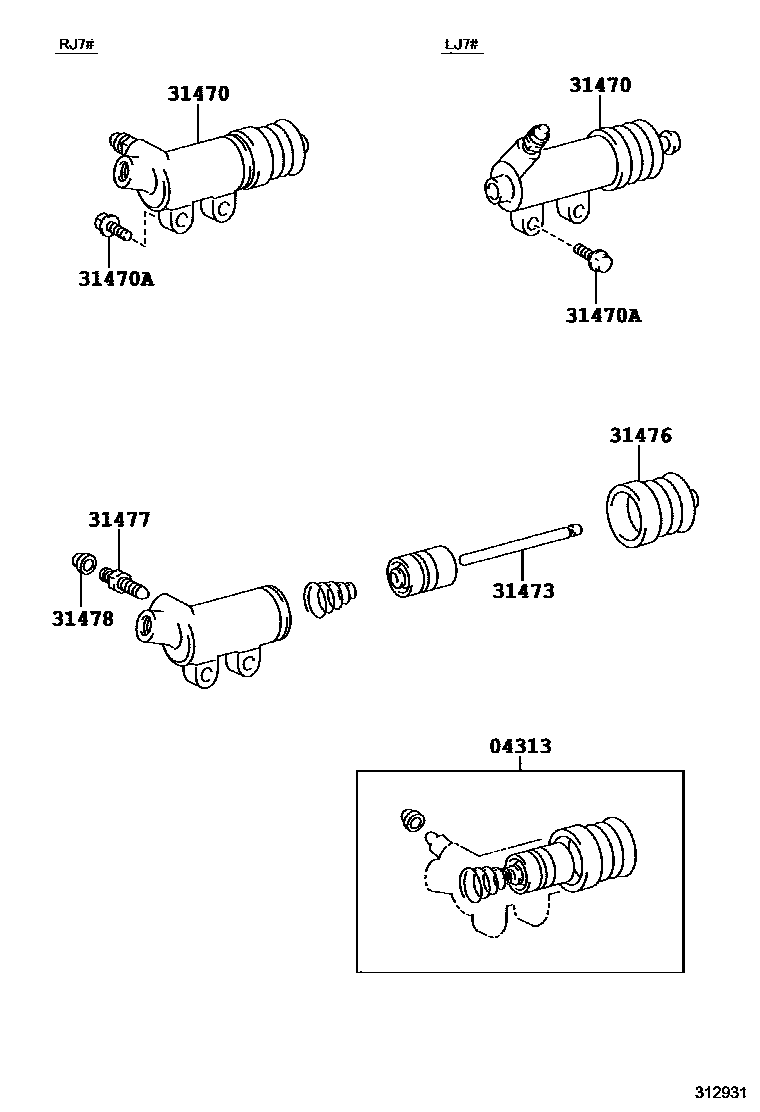

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iRJ7#;LJ70..RHD199001-199410

main04313-17010iLJ73199305-199604

main04313-18010iKZJ7#199311-199408

sub04313-18020

main04313-18020iKZJ7#199408-199604

main04313-22020iLJ7#..LHD199001-199006

sub04313-12030

main04313-28020iHZJ7#199908-200108

main04313-60050iBJ73199001-199006

main04313-60081iBJ73,HZJ7#199001-199908

main04313-60090iPZJ7#199001-199109

sub04313-60100

main04313-60100iPZJ75199109-199208

main04313-60120iKZJ7#199305-199311

sub04313-10010

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLJ7#..LHD199001-199304

sub31470-35110

main31470-30260iRJ7#199001-199410

main31470-35090iLJ70..RHD199001-199305

sub31470-35091

main31470-35110iLJ73199305-199501

main31470-60101iBJ73199001-199004

sub31470-60102

main31470-60102iBJ73199004-199402

main31470-60160iHZJ7#199001-199004

sub31470-60161

main31470-60161iHZJ7#199004-199908

main31470-60170iPZJ7#199001-199004

sub31470-60171

main31470-60171iPZJ7#199004-199208

main31470-60200iKZJ7#199305-199408

sub31470-60201

main31470-60201iKZJ7#199408-199604

main31470-60220iRJ7#199410-199604

main31470-60290iHZJ7#199908-200108

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iBJ73199001-199402

main91611-60820iLJ7#..LHD199001-199305

sub91611-G0820

main91611-60825iHZJ7#,PZJ7#,RJ7#199001-200108

*8-1.25PX25-25

sub91611-B0825

main91611-B0825iHZJ7#199305-200108

*8-1.25PX25-25

main91611-G0820iLJ73199305-199501

*8-1.25PX20-20

main91651-40825iLJ70..RHD199001-199305

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iRJ7#199410-199604

main31473-22010iLJ7#,RJ7#199001-199410

main31473-35050iLJ73199305-199501

main31473-60080iBJ73199001-199402

main31473-60130iHZJ7#,PZJ7#199001-199908

main31473-60140iKZJ7#199305-199311

sub31473-60141

main31473-60141iKZJ7#199311-199604

sub31473-60142

main31473-60141iHZJ7#200101-200108

L=73.2-73.8

sub31473-60142

main31473-60170iHZJ7#199908-200101

L=77.7-78.3

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLJ70199001-200108

main31476-36010iBJ73199001-199908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLJ73199001-200108

main47547-60020iLJ70..RHD199001-199305

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ73,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200108

7 parts on this diagram · 4 diagrams in section
