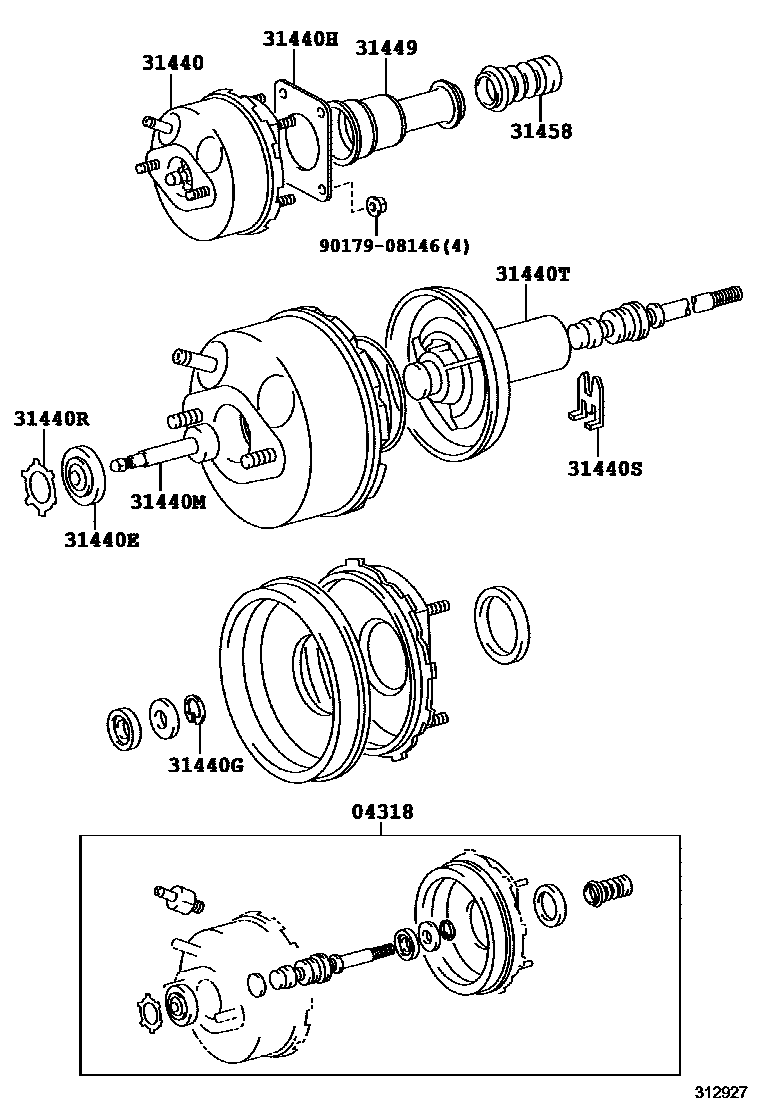

CLUTCH BOOSTER

0001 1 0002 1

04318BOOSTER KIT, CLUTCH

main04318-60070iHZJ7#,PZJ7#199001-199501

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-60120iHZJ7#,PZJ7#199001-199501

31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)

main44621-28120iHZJ7#,PZJ7#199001-199501

31440GRING, E(FOR CLUTCH BOOSTER AIR VALVE)

main96160-01000iHZJ7#,PZJ7#199001-199501

31440HGASKET, CLUTCH BOOSTER BRACKET

main44785-14010iHZJ7#,PZJ7#199001-199501

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520iHZJ7#,PZJ7#199001-199501

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120iHZJ7#,PZJ7#199001-199501

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36010iHZJ7#,PZJ7#199001-199501

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-87502iHZJ7#,PZJ7#199001-199501

31449COVER, CLUTCH BOOSTER PISTON

main31449-60010iHZJ7#,PZJ7#199001-199501

31458BOOT, CLUTCH BOOSTER PISTON COVER

main31458-60010iHZJ7#,PZJ7#199001-199501

9017908146

main90179-08146

12 parts on this diagram · 2 diagrams in section
