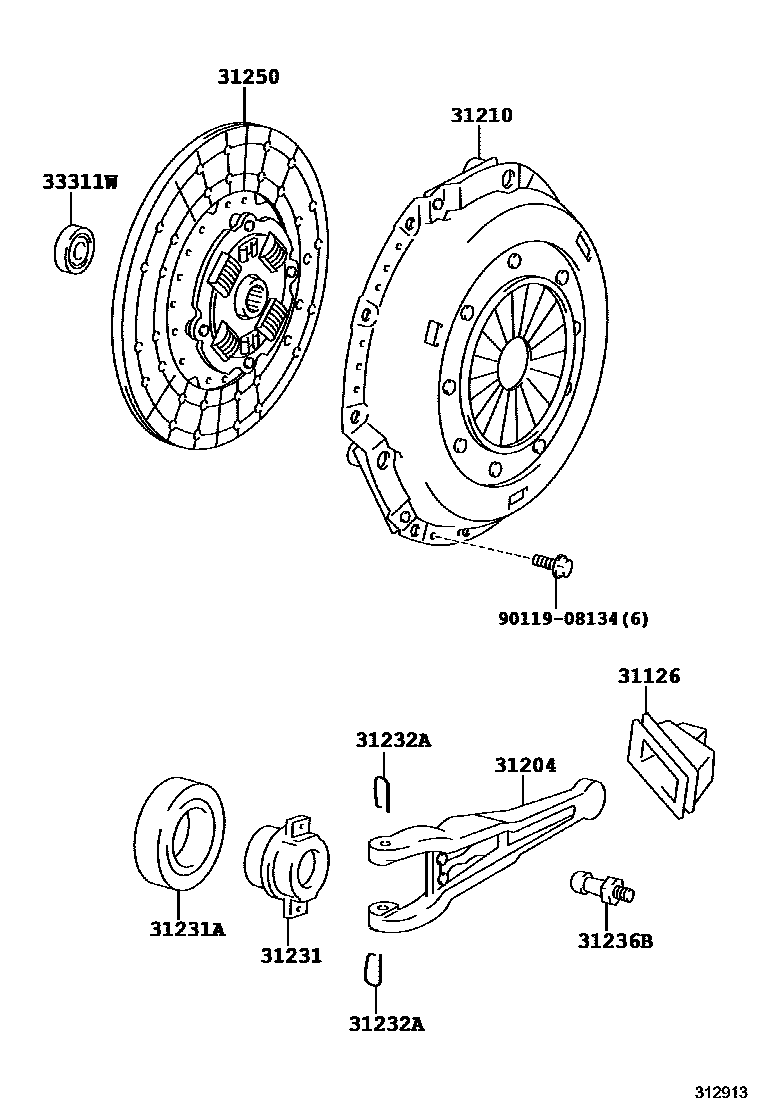

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLJ7#,RJ7#199001-199604

main31126-26020iLJ73199104-199501

main31126-60021iBJ73199001-199402

main31126-60050iHZJ71,74,78,79,PZJ7#199001-200108

main31126-60070iHZJ7#199001-199908

main31126-60080iKZJ7#199305-199604

sub31126-60081

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRJ7#199001-199604

main31204-35031iLJ7#199001-199501

main31204-36110iHZJ7#199001-200108

main31204-60070iBJ73199001-199402

main31204-60090iKZJ7#199305-199604

31210COVER ASSY, CLUTCH

main31210-35110iRJ7#199001-199604

sub31210-53040

main31210-35180iLJ7#199208-199305

sub31210-35181

main31210-35181iLJ73199305-199501

sub31210-35330

main31210-36160iHZJ7#199001-200108

sub31210-36161

main31210-60130iPZJ7#199001-199208

sub31210-60190

main31210-60170iKZJ7#199305-199604

sub31210-60171

31231HUB, CLUTCH RELEASE BEARING

main31231-60051iBJ73199001-199402

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45013iBJ73199001-199402

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLJ73199001-199501

main31232-35030iRJ7#199001-199604

main31232-36010iPZJ7#199001-199208

main31232-36020iHZJ7#199001-200108

main31232-36030iKZJ7#199305-199604

TYPE A:REFER TO ILLUSTRATION

main31232-60020iBJ73199001-199402

main31232-60030iKZJ7#199305-199604

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iRJ7#199001-199604

main31236-35030iHZJ7#,LJ7#,PZJ7#199001-200108

main31236-60030iBJ73199001-199402

main31236-60060iKZJ7#199305-199604

31250DISC ASSY, CLUTCH

main31250-22290iRJ7#199001-199203

sub31250-22320

main31250-22320iRJ7#199203-199604

sub31250-35370

main31250-25130iLJ7#199208-199501

sub31250-26180

main31250-35220iLJ7#199001-199208

sub31250-35221

main31250-35340iKZJ7#199305-199604

sub31250-35341

main31250-60170iBJ73199001-199402

sub31250-60171

main31250-60220iHZJ7#199001-199412

sub31250-60222

main31250-60222iHZJ7#199412-200004

sub31250-60223

main31250-60223iHZJ7#200004-200108

sub31250-60224

main31250-60240iPZJ7#199001-199208

sub31250-35330

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLJ7#,RJ7#199001-199604

sub90363-12024

main90363-12010iHZJ71,74,78,79,PZJ7#199001-200108

main90363-15004iBJ73199001-199402

main90363-15017iHZJ7#199001-199908

9011908134

main90119-08134

10 parts on this diagram · 5 diagrams in section
