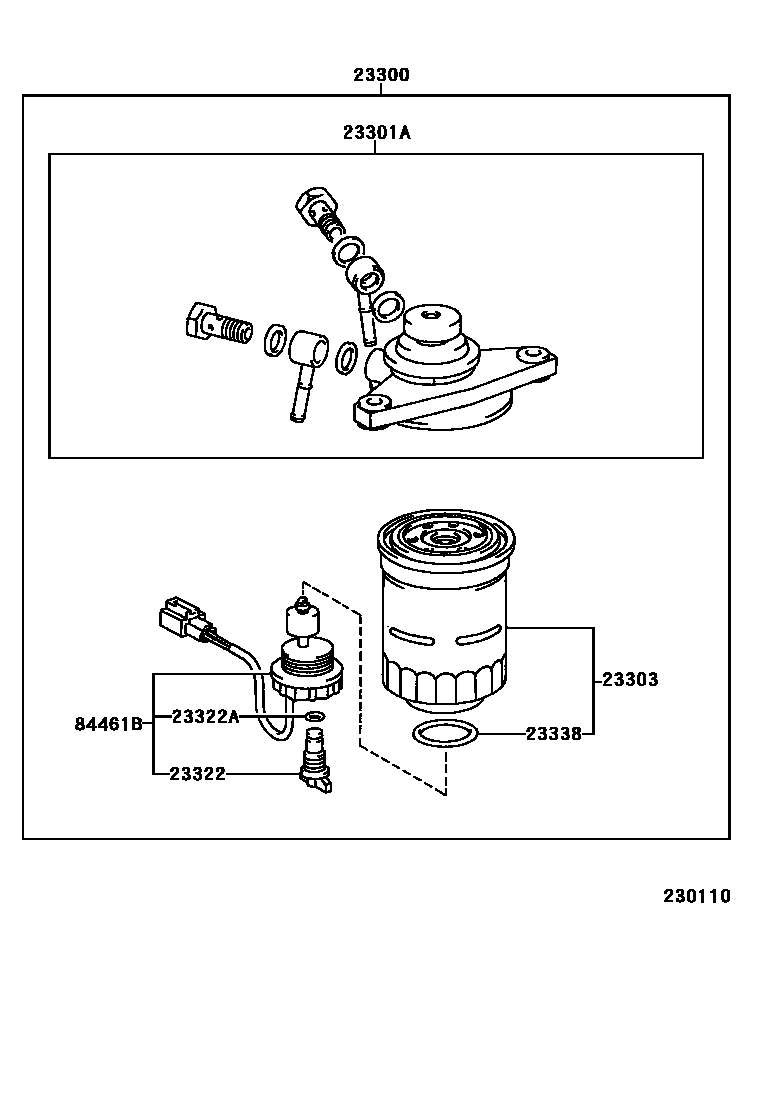

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

23300FILTER ASSY, FUEL

main23300-35060i22R..RJ70199001-199305

main23300-64091i3B..BJ73199001-199402

23301ACAP ASSY, FUEL FILTER

main23301-17060i1PZ..PZJ7#199001-199908

main23301-17090i1PZ..PZJ7#199001-199208

W(FUEL HEATER)

main23301-17090i1HZ..HZJ7#199208-199908

COLD AREA SPEC

main23301-54550i2LT..LJ7#199001-199305

COLD AREA SPEC & W(FUEL HEATER)

main23301-54560i2LT..LJ7#199001-199305

main23301-54620i2LT..LJ7#199305-199604

main23301-54630i2LT..LJ7#199305-199501

COLD AREA SPEC & W(FUEL HEATER)

main23301-54630i1KZT..KZJ70..RHD..VX199305-199604

COLD AREA SPEC

main23301-64090i3B..BJ73199001-199402

main23380-17470i1HZ..HZJ7#199908-200108

sub23380-17471

main23380-17480i1HZ..HZJ7#199908-200108

W(FUEL HEATER)

sub23380-17481

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2LT..LJ7#199001-199908

main23390-64480i1HZ..HZJ7#199908-200108

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1KZT..KZJ7#199001-199908

main23322-64020i3B..BJ73199001-199402

main23388-64470i1HZ..HZJ7#199908-200108

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LT..LJ7#199001-200108

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1HZ..HZJ7#199001-200108

84461BSWITCH, LEVEL WARNING

main84461-12050iBJ73199001-199402

main84461-35060iPZJ7#199001-199908

main84461-60040iLJ7#199001-199604

main84461-60080iHZJ7#199908-200108

sub84461-60081

7 parts on this diagram · 6 diagrams in section
