WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

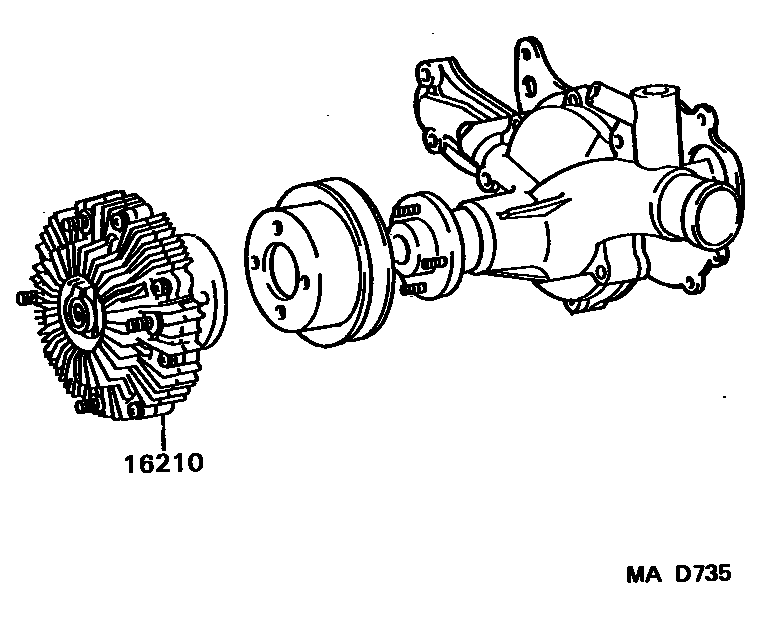

16210COUPLING ASSY, FLUID

main16210-17040i1HZ..HZJ7#199001-199908

sub16210-17010

main16210-17050i1HZ..HZJ7#199908-200108

main16210-38060i22RE..RJ7#199001-199604

main16210-54170i2LT..LJ7#199001-199006

sub16210-54200

main16210-54190i3B..BJ73199001-199009

sub16210-54200

main16210-54200i3B..BJ73199006-199501

main16210-67010i1KZT..KZJ7#199305-199604

1 parts on this diagram · 6 diagrams in section
