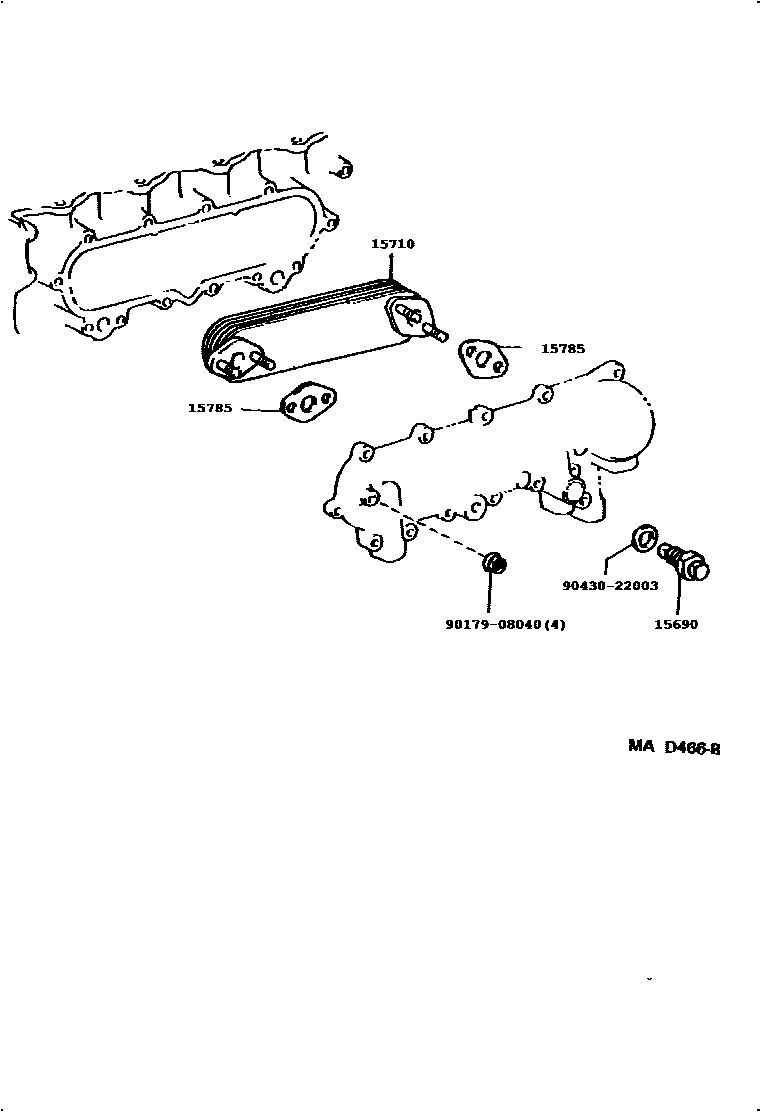

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0005 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-35020i22RE..RJ7#199001-199604

main15690-64010i1HZ..HZJ7#199001-200108

sub15690-64011

15710COOLER ASSY, OIL

main15710-17010i1PZ..PZJ7#199001-199208

sub15710-17011

main15710-17020i1HZ..HZJ7#199001-200104

sub15710-17021

main15710-17021i1HZ..HZJ7#200104-200108

main15710-35030i22RE..RJ7#199001-199604

main15710-54050i2LT..LJ7#199001-199501

main15710-67040i1KZT..KZJ7#199305-199604

15785GASKET, OIL COOLER

main15785-17010i1PZ..PZJ7#199001-199204

sub15785-66010

main15785-66010i1PZ..PZJ75199204-200108

9017908040

main90179-08040

9043022003

main90430-22003

5 parts on this diagram · 4 diagrams in section
