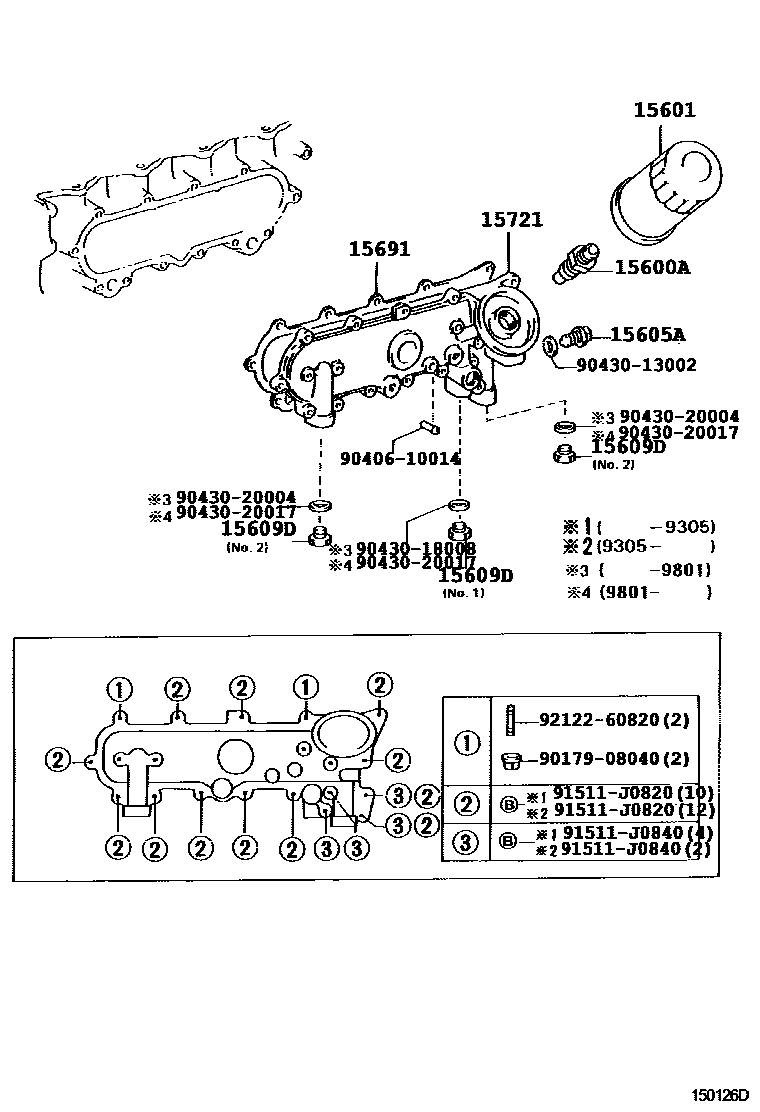

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

15600AUNION(FOR OIL FILTER)

main15116-54020i2LT..LJ7#199001-199106

sub15116-54021

main15116-54021i1HZ..HZJ7#199106-200108

main90404-20173i22R..RJ70199001-199305

main90404-27001i1PZ..PZJ7#199001-199305

sub15116-54021

15601FILTER SUB-ASSY, OIL

main90915-03002i22R#..RJ7#199001-199204

sub90915-20001

main90915-03006i2LT..LJ7#199001-199106

sub90915-30002

main90915-20001i22RE..RJ7#199204-199604

sub90915-20003

main90915-30002i1PZ..PZJ7#199106-200108

15605AVALVE SUB-ASSY, OIL CHECK

main15605-17020i1HZ..HZJ7#199001-200108

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54110i2LT..LJ7#199001-199005

main15609-54111i2LT..LJ7#199005-199501

sub15609-54112

sub15407-54040

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-18006i1HZ..HZJ7#199001-199801

NO.1

main90341-20002i1PZ..PZJ7#199001-199801

NO.2

main90341-20002i1KZT..KZJ7#199305-200108

15691GASKET, OIL FILTER

main15692-54030i2LT..LJ7#199001-199501

sub15692-54050

main15725-17010i1HZ..HZJ7#199001-200108

15721COVER, OIL COOLER

main15721-17010i1PZ..PZJ7#199001-199401

main15721-17020i1HZ..HZJ7#199001-199401

COLD SPEC

main15721-17020i1HZ..HZJ7#199401-199705

main15721-17021i1HZ..HZJ7#199705-199801

sub15721-17022

main15721-17022i1HZ..HZJ7#199801-200108

9017908040

main90179-08040

9040610014

main90406-10014

9043013002

main90430-13002

9043018008

main90430-18008

9043020004

main90430-20004

9043020017

main90430-20017

91511J0820

main91511-J0820

91511J0840

main91511-J0840

9212260820

main92122-60820

16 parts on this diagram · 5 diagrams in section
