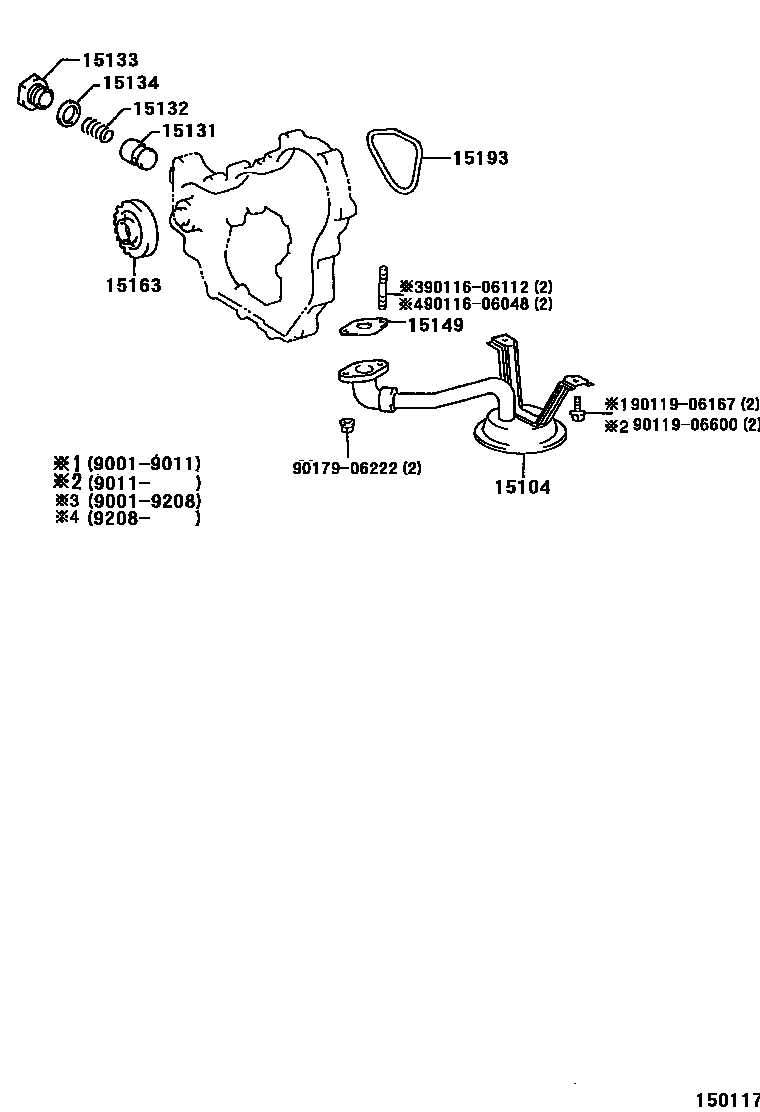

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15104STRAINER SUB-ASSY, OIL

main15104-17020i1HZ..HZJ7#199001-199208

sub15104-17050

sub90116-06048

main15104-17050i1HZ..HZJ7#199208-199805

main15104-17070i1HZ..HZJ7#199805-200108

main15104-35010i22RE..RJ7#199001-199604

main15104-54160i2LT..LJ7#199001-199501

sub15104-54161

main15104-67020i1KZT..KZJ7#199305-199604

15131VALVE, OIL PUMP RELIEF

main15131-17010i1PZ..PZJ7#199001-200108

main15131-38030i22R#..RJ7#199001-199604

main15131-46040i1KZT..KZJ7#199305-199604

main15131-54010i2LT..LJ7#199001-199501

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1HZ..HZJ7#199001-200108

main15132-46010i22RE..RJ7#199001-199604

main15132-54010i2LT..LJ7#199001-199501

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1HZ..HZJ7#199001-200108

main15133-20010i22R#..RJ7#199001-199604

main15133-54010i2LT..LJ7#199001-199501

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1HZ..HZJ7#199001-199508

main15134-20010i22R#..RJ7#199001-199604

main15134-67020i1KZT..KZJ7#199308-200108

15149GASKET, OIL STRAINER FLANGE

main15149-17010i1HZ..HZJ7#199001-200108

main15149-67010i1KZT..KZJ7#199305-199604

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-17010i1PZ..PZJ7#199001-200108

15193GASKET, OIL PUMP

main15193-17010i1HZ..HZJ7#199001-200108

main15193-67010i1KZT..KZJ7#199305-199604

9011606048

main90116-06048

9011606112

main90116-06112

9011906167

main90119-06167

9011906600

main90119-06600

9017906222

main90179-06222

13 parts on this diagram · 6 diagrams in section
