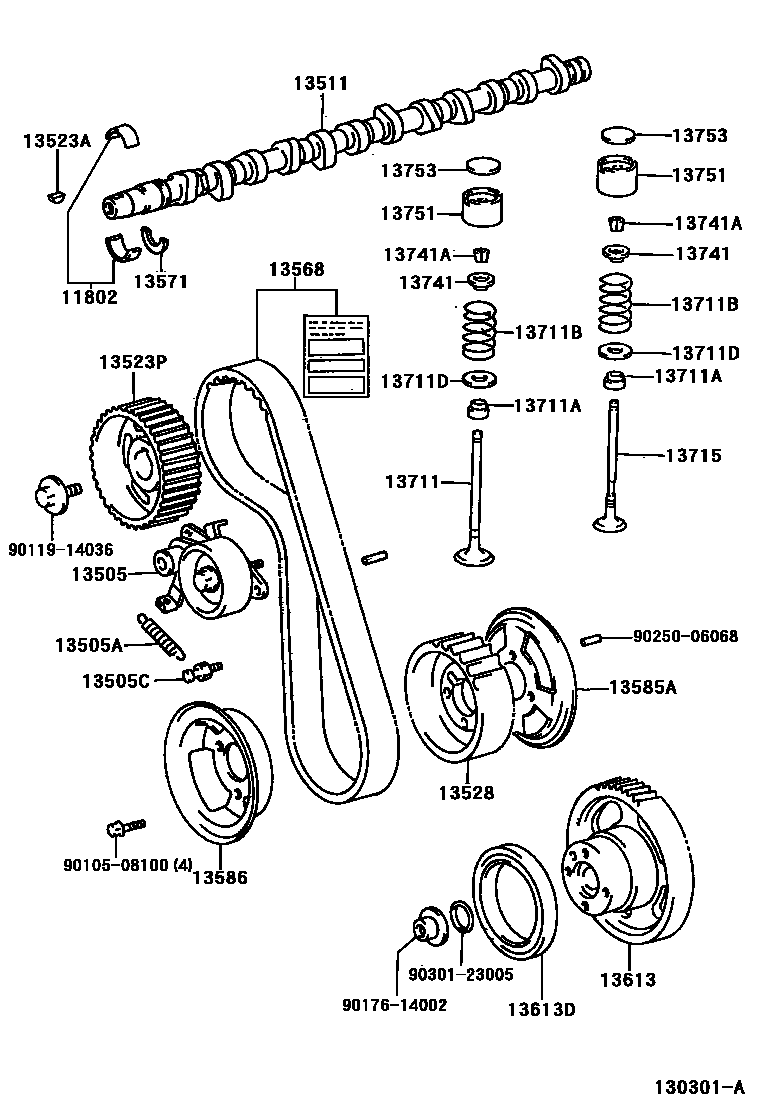

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13571PLATE, CAMSHAFT THRUST
13585AFLANGE, CAMSHAFT TIMING PULLEY, NO.1
13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2
13613GEAR, INJECTION PUMP DRIVE
13613DBEARING, RADIAL BALL
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.40
T=2.35
T=2.45
T=2.50,MARK=T01
T=2.60,MARK=T06
T=2.70,MARK=T11
T=2.80,MARK=T16
T=2.90,MARK=T21
T=3.00,MARK=T26
T=3.10,MARK=T31
T=3.20,MARK=T36
T=3.30,MARK=T41
T=2.55,MARK=T42
T=2.65,MARK=T43
T=2.75,MARK=T44
T=2.85,MARK=T45
T=2.95,MARK=T46
T=3.05,MARK=T47
T=3.15,MARK=T48
T=3.25,MARK=T49
9010508100
main90105-08100
9011914036
main90119-14036
9017614002
main90176-14002
9025006068
main90250-06068
9030123005
main90301-23005
29 parts on this diagram · 6 diagrams in section
