CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

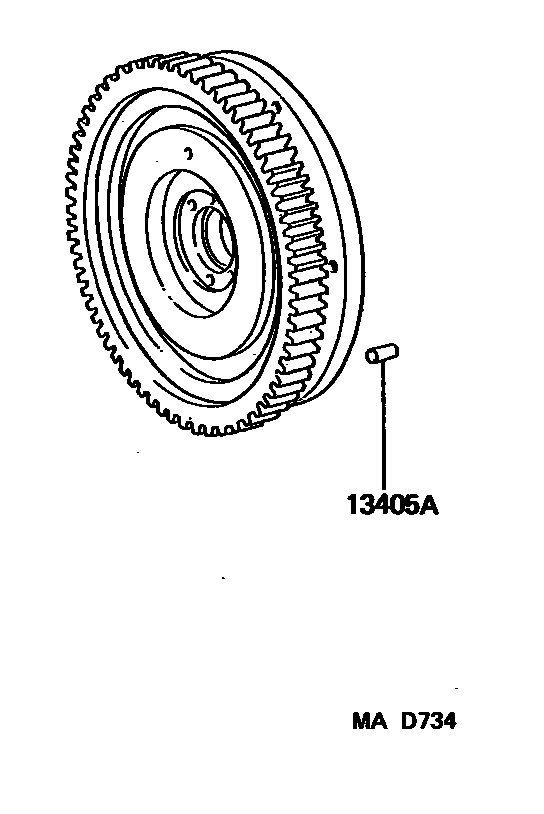

13405FLYWHEEL SUB-ASSY

main13405-17010i1HZ..HZJ7#199001-200108

main13405-35021i22RE..RJ7#199001-199604

main13405-54060i2LT..LJ7#199001-199208

main13405-54080i2LT..LJ7#199208-199501

main13405-67020i1KZT..KZJ7#199305-199604

main13450-18010i1PZ..PZJ7#199001-199208

sub13450-18011

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i22RE..RJ7#199001-199604

L=23,OD=8

main90250-10192i1HZ..HZJ7#199001-200108

L=22,OD=10

2 parts on this diagram · 6 diagrams in section
