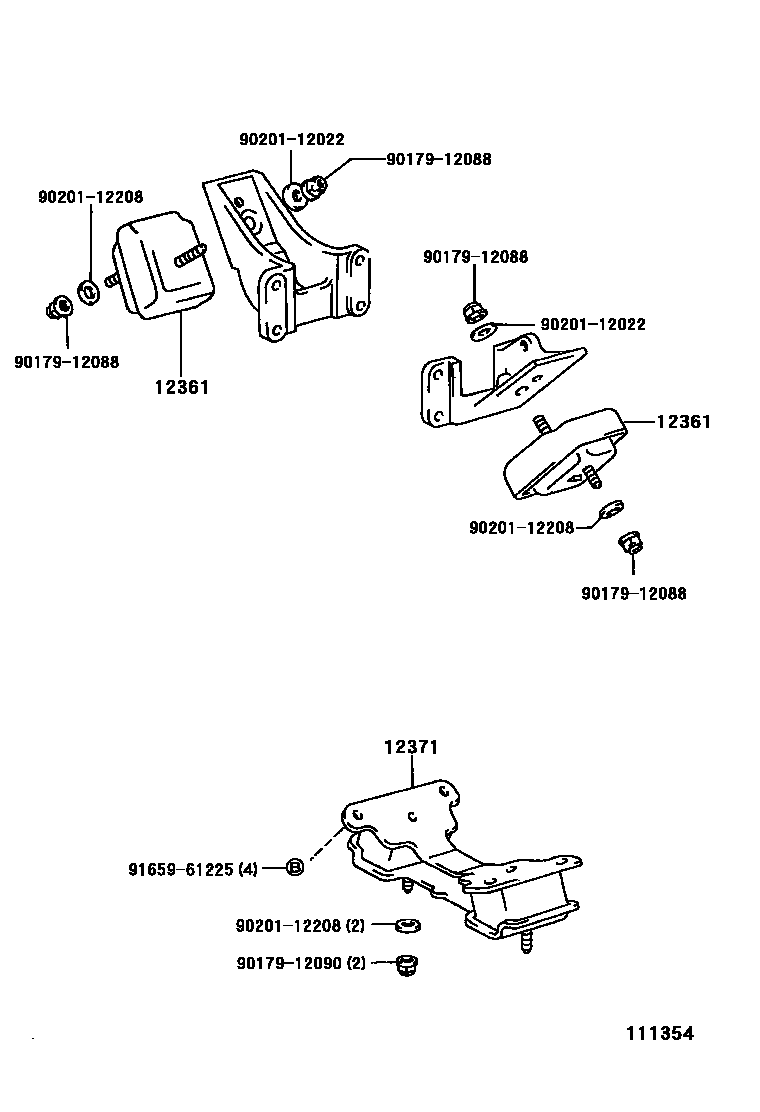

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17020i1PZ..PZJ7#199001-200108

main12361-54121i2LT..LJ7#199001-199501

main12361-58061i3B..BJ73199001-199402

main12361-67020i1KZT..KZJ7#199305-199604

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17010i1HZ..HZJ7#199001-199908

main12371-17030i1PZ..PZJ7#199001-199208

main12371-17080i1HZ..HZJ7#199908-200108

main12371-54100i2LT..LJ7#199001-199604

main12371-58021i3B..BJ73199001-199402

main12371-67041i1KZT..KZJ7#199305-199604

9017912088

main90179-12088

9017912090

main90179-12090

9020112022

main90201-12022

9020112208

main90201-12208

9165961225

main91659-61225

7 parts on this diagram · 6 diagrams in section
