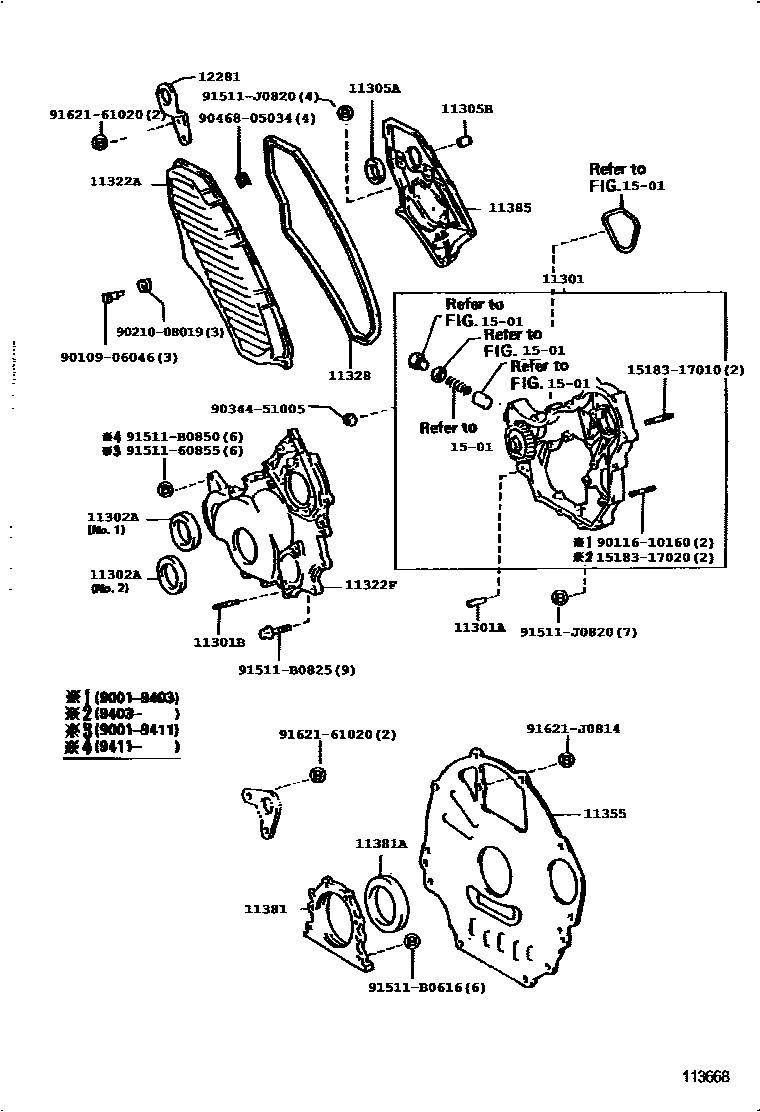

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-17020i1PZ..PZJ7#199001-199408

sub11301-17021

main11301-17021i1HZ..HZJ7#199408-199805

main11301-17030i1HZ..HZJ7#199805-200108

main11311-54050i2LT..LJ7#199001-199108

sub11311-54051

main11311-54051i2LT..LJ7#199108-199501

sub11311-54052

sub15115-54022

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08054i1PZ..PZJ7#199001-200108

L=23,OD=8

main90250-08120i1KZT..KZJ7#199305-199604

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10160i1HZ..HZJ7#199001-200108

main92132-60828i2LT..LJ7#199001-199501

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R#..RJ7#199001-199604

main11302-67010i1KZT..KZJ7#199305-199604

sub11302-67020

main11321-54020i2LT..LJ7#199001-199501

sub11321-54021

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45006i22R#..RJ7#199001-199006

sub90311-45011

main90311-45011i22RE..RJ7#199006-199311

sub90311-45014

main90311-45014i22RE..RJ7#199311-199604

main90311-50017i1KZT..KZJ7#199305-199604

sub90311-50051

main90311-58006i1HZ..HZJ7#199001-200108

NO.1

main90311-58007i1HZ..HZJ7#199001-200108

NO.2

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i2LT..LJ7#199001-199102

sub90311-32018

main90311-32017i1PZ..PZJ7#199001-199808

sub90311-32020

main90311-32019i1HZ..HZJ7#199808-200108

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11021i2LT..LJ7#199001-200108

11322ACOVER, TIMING BELT, NO.1

main11321-17010i1PZ..PZJ7#199001-199805

main11321-17040i1HZ..HZJ7#199805-200108

11322FCOVER, TIMING GEAR, NO.2

main11322-17010i1PZ..PZJ7#199001-199411

main11322-17011i1HZ..HZJ7#199411-199805

main11322-17030i1HZ..HZJ7#199805-200108

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-17010i1HZ..HZJ7#199001-199805

main11328-17030i1HZ..HZJ7#199805-200108

sub11328-43040

main11328-35020i22R#..RJ7#199001-199004

sub11328-35030

main11328-35030i22R#..RJ7#199004-199604

main11328-54021i2LT..LJ7#199001-199501

main11328-67020i1KZT..KZJ7#199305-199604

11355PLATE, REAR END

main11355-17010i1HZ..HZJ7#199001-199710

sub11355-17011

main11355-17011i1HZ..HZJ7#199710-200108

main11355-18010i1PZ..PZJ7#199001-199208

main11355-35010i22R#..RJ7#199001-199604

main11355-54030i2LT..LJ7#199001-199501

main11355-67010i1KZT..KZJ7#199305-199604

11381RETAINER, ENGINE REAR OIL SEAL

main11381-17010i1HZ..HZJ7#199001-200108

main11381-38010i22RE..RJ7#199001-199604

main11381-54020i2LT..LJ7#199001-199501

sub11381-54030

sub90116-08404

main11381-67020i1KZT..KZJ7#199305-199604

11381ASEAL, ENGINE REAR OIL

main90311-80004i22R#..RJ7#199001-199006

sub90311-80010

main90311-80010i22RE..RJ7#199006-199604

main90311-85004i2LT..LJ7#199001-199102

sub90311-85006

main90311-85006i2LT..LJ7#199102-199209

sub90311-85009

main90311-85007i2LT..LJ7#199209-199501

main90311-95008i1KZT..KZJ7#199001-200108

11385RETAINER, CAMSHAFT OIL SEAL

main11382-17010i1HZ..HZJ7#199001-199805

main11382-17030i1HZ..HZJ7#199805-200108

main11382-54020i2LT..LJ7#199001-199501

main11382-67010i1KZT..KZJ7#199305-199604

12281HANGER, ENGINE, NO.1

main12281-17020i1HZ..HZJ7#199501-199801

sub12281-17021

sub12281-17030

main12281-17021i1HZ..HZJ7#199801-200108

1501

1518317010BOLT, UNION(FOR OIL PUMP)

main15183-17010

1518317020BOLT, UNION(FOR OIL PUMP)

main15183-17020

9010906046

main90109-06046

9011610160

main90116-10160

9021008019

main90210-08019

9034451005

main90344-51005

9046805034

main90468-05034

9151160855

main91511-60855

91511B0616

main91511-B0616

91511B0825

main91511-B0825

91511B0850

main91511-B0850

91511J0820

main91511-J0820

9162161020

main91621-61020

91621J0814

main91621-J0814

30 parts on this diagram · 7 diagrams in section
