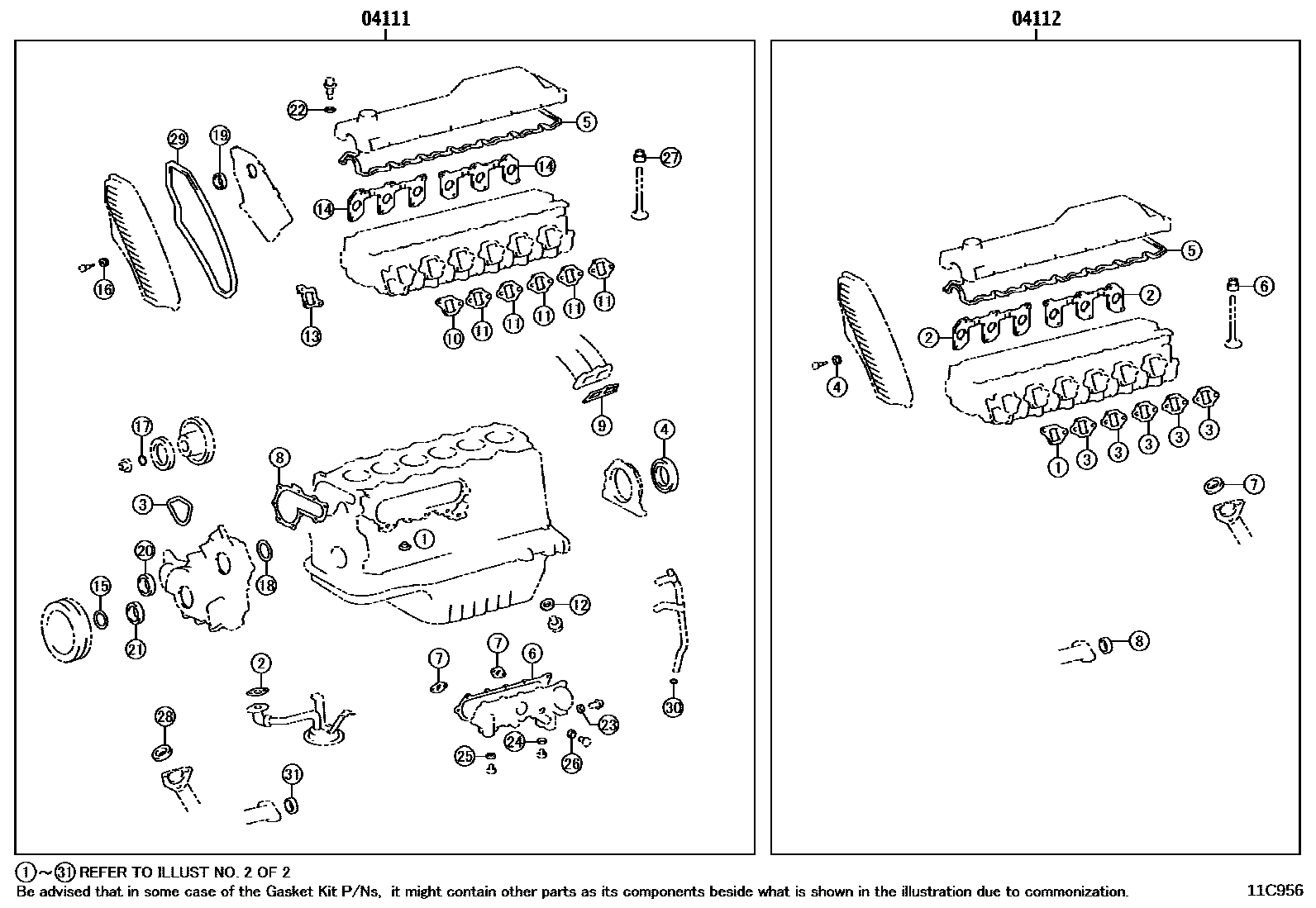

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i1HZ..HZJ7#199001-199705

sub04111-17011

main04111-17011i1HZ..HZJ7#199705-199707

main04111-17012i1HZ..HZJ7#199707-199805

main04111-17030i1PZ..PZJ7#199001-199208

main04111-17080i1HZ..HZJ7#199805-199908

main04111-17100i1HZ..HZJ7#199908-200108

main04111-35100i22R..RJ70199001-199008

sub04111-35101

main04111-35101i22R..RJ70199008-199011

sub04111-35102

main04111-35102i22R..RJ70199011-199305

sub04111-35103

main04111-35360i22RE..RJ7#199008-199604

main04111-35420i22RE..RJ7#199001-199008

sub04111-35360

main04111-54102i2LT..LJ7#199001-199108

sub04111-54103

main04111-54103i2LT..LJ7#199108-199501

sub04111-54104

main04111-67020i1KZT..KZJ7#199305-199604

sub04111-67021

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i1HZ..HZJ7#199001-199705

sub04112-17011

main04112-17011i1HZ..HZJ7#199705-199707

main04112-17012i1HZ..HZJ7#199707-199805

main04112-17030i1PZ..PZJ7#199001-199208

main04112-17080i1HZ..HZJ7#199805-199908

main04112-17100i1HZ..HZJ7#199908-200108

main04112-35090i22R..RJ70199001-199008

sub04112-35091

main04112-35091i22R..RJ70199008-199011

sub04112-35092

main04112-35092i22R..RJ70199011-199305

sub04112-35093

main04112-35330i22RE..RJ7#199008-199604

main04112-35380i22RE..RJ7#199001-199008

sub04112-35330

main04112-54100i2LT..LJ7#199001-199108

sub04112-54101

main04112-54101i2LT..LJ7#199108-199501

sub04112-54102

main04112-67020i1KZT..KZJ7#199305-199604

2 parts on this diagram · 18 diagrams in section
