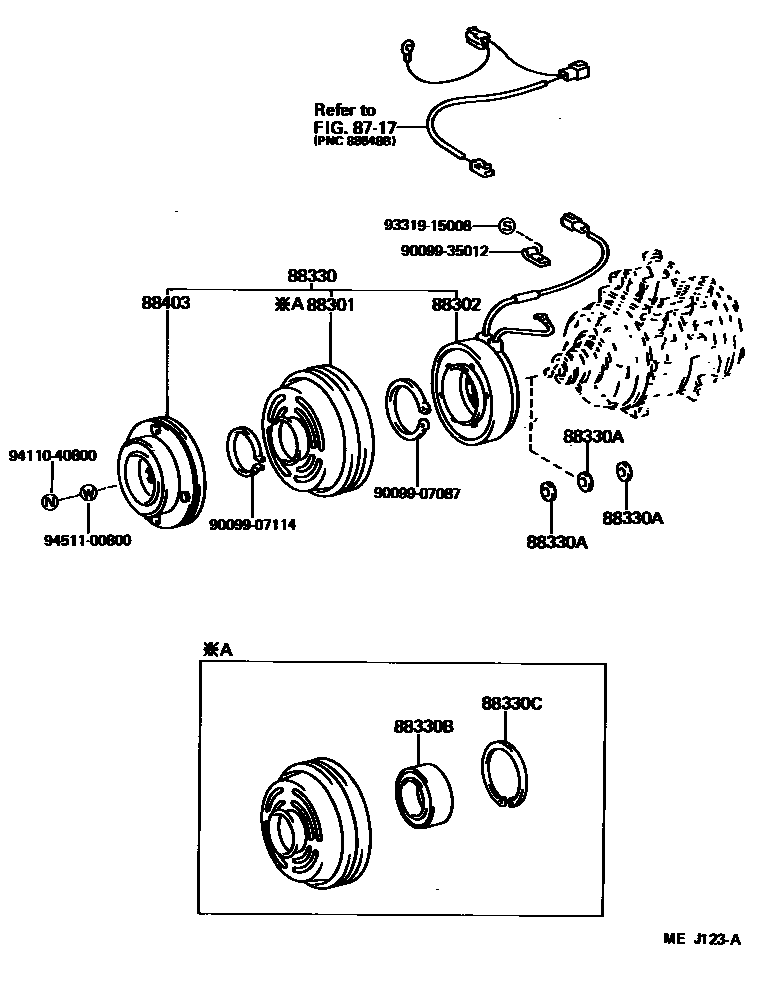

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

8717

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12180iBJ73..VM198904-199001

main88412-22030iBJ73..LX,STD198608-199001

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iBJ73..LX,STD198608-199001

main88411-35020iBJ73..VM198904-199001

sub88411-30540

88330CLUTCH ASSY, MAGNET

main88410-22080iBJ73..LX,STD198608-199001

sub88410-60140

main88410-60180iBJ73..VM198904-199001

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iBJ73..LX,STD198703-199001

T=0.5

main88335-14020iBJ73..VM198904-199001

main90099-01108iBJ73..LX,STD198608-198703

T=0.5

main90099-01350iBJ73..LX,STD198608-198703

T=0.1

main90099-01351iBJ73..LX,STD198608-198703

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iBJ73..LX,STD198608-199001

main90099-10162iBJ73..LX,STD198703-198808

sub90099-10133

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iBJ73..LX,STD198703-199001

main90099-07114iBJ73..LX,STD198608-198703

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iBJ73..LX,STD198703-199001

main88403-14030iBJ73..LX,STD198608-198703

sub88403-12030

main88403-16011iBJ73..VM198904-199001

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

14 parts on this diagram · 5 diagrams in section
