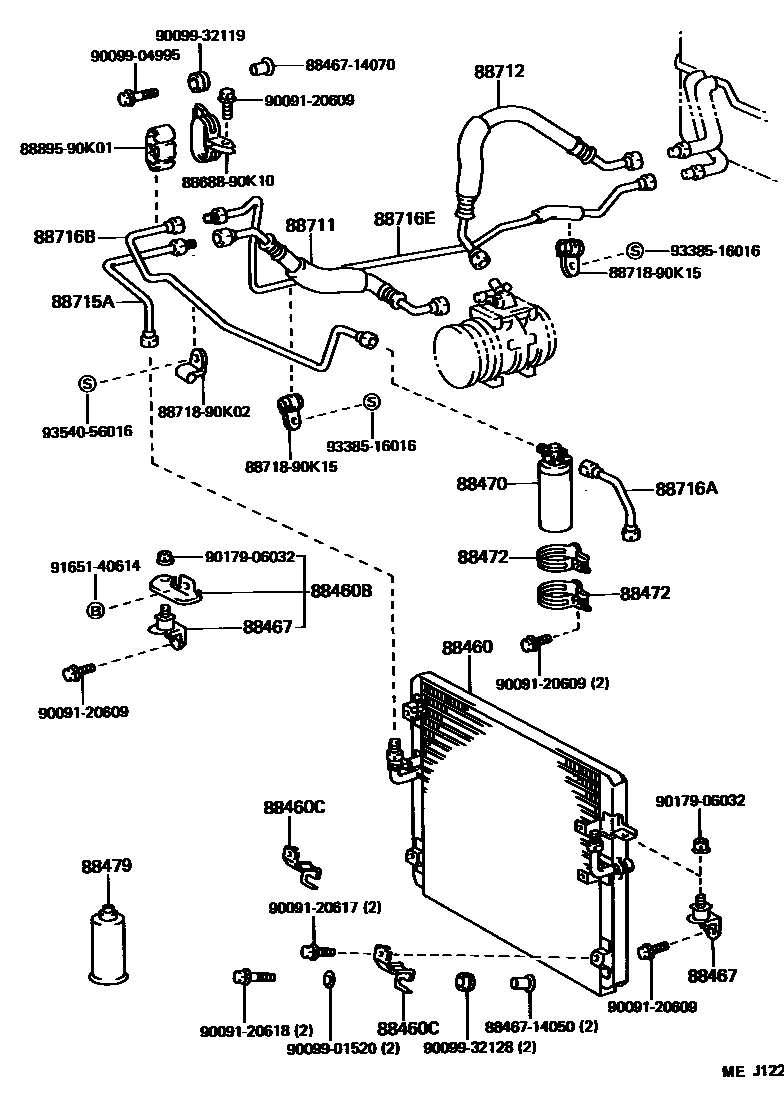

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88460CONDENSER ASSY, COOLER

main88340-90K00iBJ73..LX,STD198608-199001

sub88340-60010

main88460-90K00iBJ73..VM198904-199001

88460BBRACKET, COOLER CONDENSER, NO.1

main88409-90K01iBJ73..LX,STD198608-199001

sub88409-60010

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-90K01iBJ73..LX,STD198608-199001

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060iBJ73..LX,STD198608-199001

88470RECEIVER & DRYER ASSY, COOLER

main88450-90K04iBJ73..VM198904-199001

main88470-12050iBJ73..LX,STD198608-198708

sub88470-14010

main88470-14010iBJ73..LX,STD198708-199001

sub04884-33110

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iBJ73..LX,STD198608-199001

main88472-90K00iBJ73..VM198904-199001

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iBJ73..LX,STD198608-199001

400G

sub90986-02004

sub90986-02005

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-90K01iBJ73..LX,STD198608-199001

main88711-90K08iBJ73..VM198904-199001

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-90K16iBJ73..LX,STD198608-199001

main88712-90K18iBJ73..VM198904-199001

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-90K00iBJ73..LX,STD198608-199001

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-90K02iBJ73..LX,STD198608-199001

main88716-90K35iBJ73..VM198904-199001

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-90K05iBJ73..LX,STD198608-199001

main88716-90K36iBJ73..VM198904-199001

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-90K04iBJ73..LX,STD198608-199001

main88726-90K01iBJ73..VM198904-199001

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8868890K10BRACKET, COOLER DIAPHRAGM

main88688-90K10

8871890K02PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K02

8871890K15PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K15

8889590K01HOLDER, FUSE

main88895-90K01

9009120609

main90091-20609

9009120617

main90091-20617

9009120618

main90091-20618

9009901520

main90099-01520

9009904995

main90099-04995

9009932119

main90099-32119

9009932128

main90099-32128

9017906032

main90179-06032

9165140614

main91651-40614

9338516016

main93385-16016

9354056016

main93540-56016

30 parts on this diagram · 2 diagrams in section
