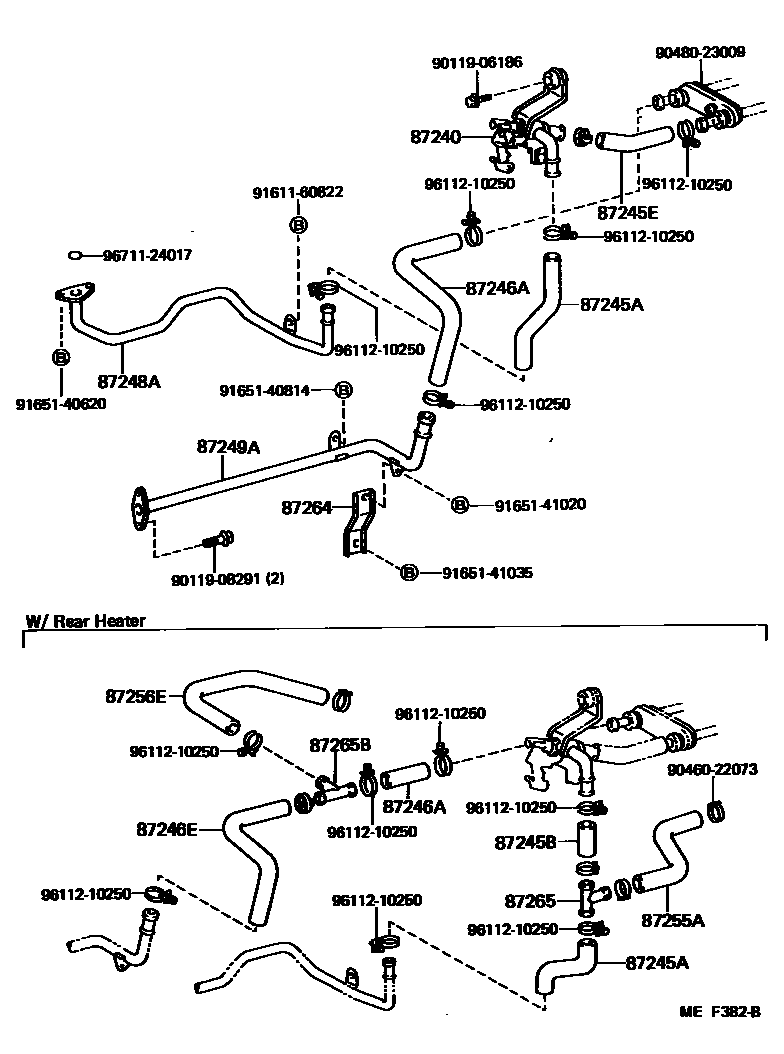

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1AUSTRIA SPEC 0004 1 0005 1 0006 1 0007 1AUSTRIA SPEC 0008 1

87240VALVE ASSY, HEATER WATER

main87240-90K00iBJ70,73,75,LJ7#,RJ7#..LX,STD,VX198411-199001

main87240-90K01iBJ71198510-199001

main87240-90K07iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

87245AHOSE, HEATER WATER, INLET A

main87245-90K00iLJ70198411-198510

FR HEATER

main87245-90K02iRJ70198411-198510

FR HEATER

main87245-90K04iBJ70,73,75198411-199001

main87245-90K12iLJ70198411-198510

W/RR HEATER

main87245-90K20iRJ70198411-198510

RR HEATER

main87245-90K38iRJ7#198510-198812

FR HEATER

main87245-90K44iBJ71198510-199001

main87245-90K45iLJ7#..LX,STD;LJ70..LHD..VX198510-199001

main87245-90K46iLJ7#198510-199001

W/RR HEATER

main87245-90K50iRJ7#198510-198812

RR HEATER

main87245-90K57iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main87245-90K63iRJ7#198812-199001

FR HEATER

sub87245-90K66

main87245-90K64iRJ7#198812-199001

RR HEATER

87245BHOSE, HEATER WATER, INLET B

main87245-90K13iLJ70198411-199001

main87245-90K21iRJ70198411-198510

W/RR HEATER

sub99556-30300

main87245-90K42iBJ71198510-199001

main87245-90K49iRJ7#198510-198812

main87245-90K56iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main87245-90K61iRJ7#198812-199001

87245EHOSE, HEATER WATER, INLET E

main87245-1B060iBJ7#,LJ7#,RJ7#198411-199001

87246AHOSE, HEATER WATER, OUTLET A

main87245-89180iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

sub87245-89170

main87245-90K01iLJ70198411-198510

FR HEATER

main87245-90K03iRJ7#198411-199001

FR HEATER

main87245-90K15iLJ70198411-199001

RR HEATER

sub87245-89170

main87245-90K21iRJ7#198411-199001

RR HEATER

sub99556-30300

main87245-90K30iBJ70,73,75..HT198411-199001

RR HEATER

main87245-90K40iLJ7#198510-199001

FR HEATER

main99556-30100iBJ71198510-199001

*H,L=60

main99556-30320iBJ7#198411-198508

*H,L=320

sub99556-30500

main99556-30500iBJ70,73,75..LX,STD198508-199001

*H,L=320

87246EHOSE, HEATER WATER, OUTLET E

main87245-90K14iLJ70198411-198510

W/RR HEATER

main87245-90K22iRJ7#198411-199001

W/RR HEATER

main87245-90K41iLJ7#198510-199001

main87245-90K58iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main99556-30055iBJ7#198411-198508

*H,L=55

sub99556-30100

main99556-30100iBJ7#198508-199001

*H,L=55

87248APIPE, HEATER WATER INLET, A

main87208-14280iRJ7#198812-199001

sub87208-35170

main87208-90K00iRJ7#198411-198812

main87208-90K08iBJ71198510-199001

main87248-90K19iBJ70,73,75..HT198411-198808

W/RR HEATER

main87248-90K27iBJ70,73,75..HT198808-199001

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-20062iRJ7#198411-199001

main87248-90K18iBJ70,73,75198411-198808

main87248-90K25iBJ71198510-199001

main87248-90K26iBJ70,73,75198808-199001

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-90K18iLJ7#198411-199001

main87245-90K23iRJ70198411-198510

main87245-90K51iBJ71198510-199001

main87245-90K59iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main99556-20055iBJ7#..HT198411-198508

*H,L=55

sub99556-20100

main99556-20100iBJ70,73,75..HT198508-199001

*H,L=55

sub99556-20110

main99556-20100iRJ7#198510-198812

*H,L=70

sub99556-20110

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-90K19iLJ7#198411-199001

main87245-90K24iRJ7#198411-199001

main87245-90K29iBJ70,73,75..HT198411-199001

main87245-90K43iBJ71198510-199001

87264BRACKET, HEATER WATER HOSE

main87263-14140iRJ7#198411-199001

87265CONNECTOR, HEATER WATER HOSE

main87208-90K19iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main87248-95400iLJ7#,RJ7#198411-199001

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87208-90K21iLJ7#..LHD..LX198810-199001

AUSTRIA SPEC

main87248-95400iBJ70,73,75,LJ7#,RJ7#..HT,SOT198411-199001

9011906186

main90119-06186

9011908291

main90119-08291

9046022073

main90460-22073

9048023009

main90480-23009

9161160822

main91611-60822

9165140620

main91651-40620

9165140814

main91651-40814

9165141020

main91651-41020

9165141035

main91651-41035

9611210250

main96112-10250

9671124017

main96711-24017

24 parts on this diagram · 8 diagrams in section
