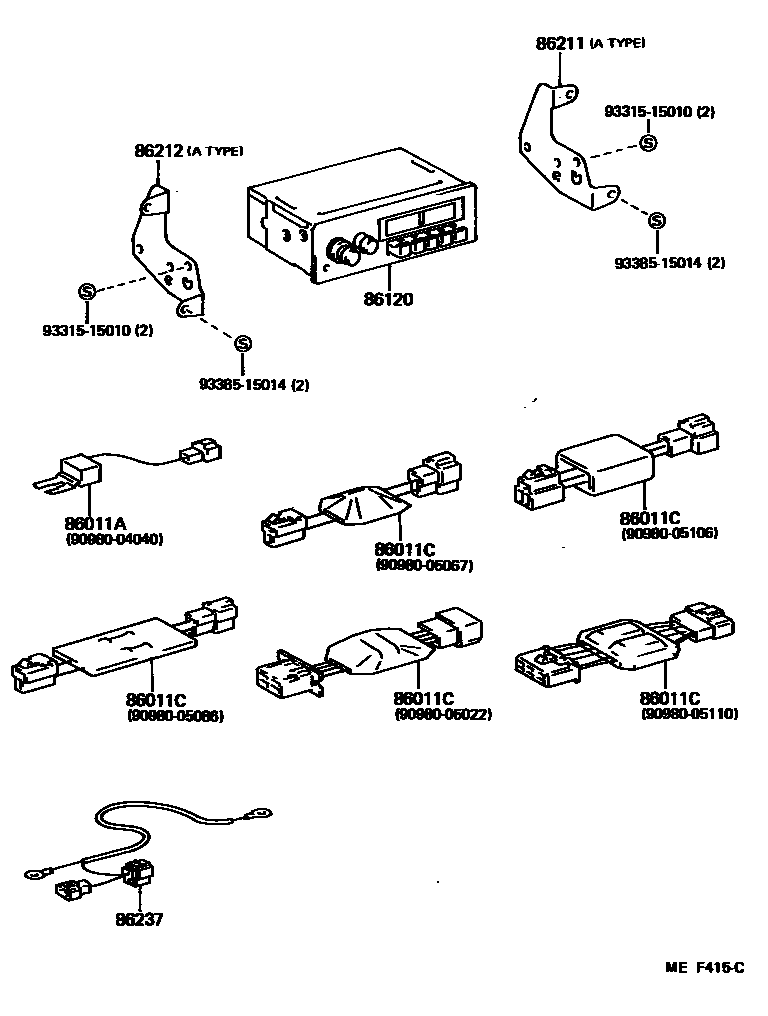

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04040iBJ7#,LJ70,RJ70..STD198411-198608

REGULATOR

86011CFILTER, NOISE

main90980-05022iBJ7#,LJ7#,RJ7#198411-199001

WIPER MOTOR

main90980-05067iBJ7#,LJ7#,RJ7#198411-199001

STOP LAMP SWITCH

main90980-05086iBJ7#,LJ7#,RJ7#198411-199001

HEATER

main90980-05106iBJ7#,LJ7#,RJ7#198411-199001

OIL PRESSURE SWITCH

main90980-05109iBJ7#..LHD..(LX,STD)198701-199001

24V,REGULATOR

main90980-05110iBJ7#,LJ7#,RJ7#198411-199001

12V,REGULATOR

86120RECEIVER ASSY, RADIO

main86120-17100iLJ70..RHD..VX198608-199001

12V,*67

main86120-32110iBJ7#,LJ7#,RJ70..LHD198608-198708

12V,LW/MW/UKW MPX,*ELT

main86120-32111iBJ7#,LJ7#,RJ7#..LHD198708-199001

FUJITSU TEN,12V,LW/MW/UKW MPX,*ELT

main86120-32240iBJ73,LJ7#,RJ70..LHD198608-198708

12V,LW/MW/UKW,*ELT

main86120-32241iBJ73,LJ7#,RJ7#..LHD198708-199001

FUJITSU TEN,12V,LW/MW/UKW,*ELT

main86120-90K03iBJ73,LJ7#,RJ7#198411-198608

12V,LW/MW/UKW

main86120-90K04iBJ7#..STD198411-198608

24V,LW/MW/UKW

86211BRACKET, RADIO, NO.1

main86211-90K00iBJ7#,LJ7#,RJ7#..LHD..(LX,STD,VX)198608-199001

B TYPE

main86211-90K01iBJ7#,LJ7#,RJ7#198411-198607

A TYPE

sub86211-90K02

main86211-90K02iBJ7#,LJ7#,RJ7#..LHD198607-199001

A TYPE

86212BRACKET, RADIO, NO.2

main86212-90K00iBJ7#,LJ7#,RJ7#..LHD..(LX,STD,VX)198608-199001

B TYPE

main86212-90K01iBJ7#,LJ7#,RJ7#198411-198607

A TYPE

sub86212-90K02

main86212-90K02iBJ7#,LJ7#,RJ7#..LHD198607-199001

A TYPE

86237WIRE, CONDENSER

main86237-90K01iRJ7#198510-198608

9098004040

main90980-04040

9098005022

main90980-05022

9098005067

main90980-05067

9098005086

main90980-05086

9098005106

main90980-05106

9098005110

main90980-05110

9331515010

main93315-15010

9338515014

main93385-15014

14 parts on this diagram · 2 diagrams in section
