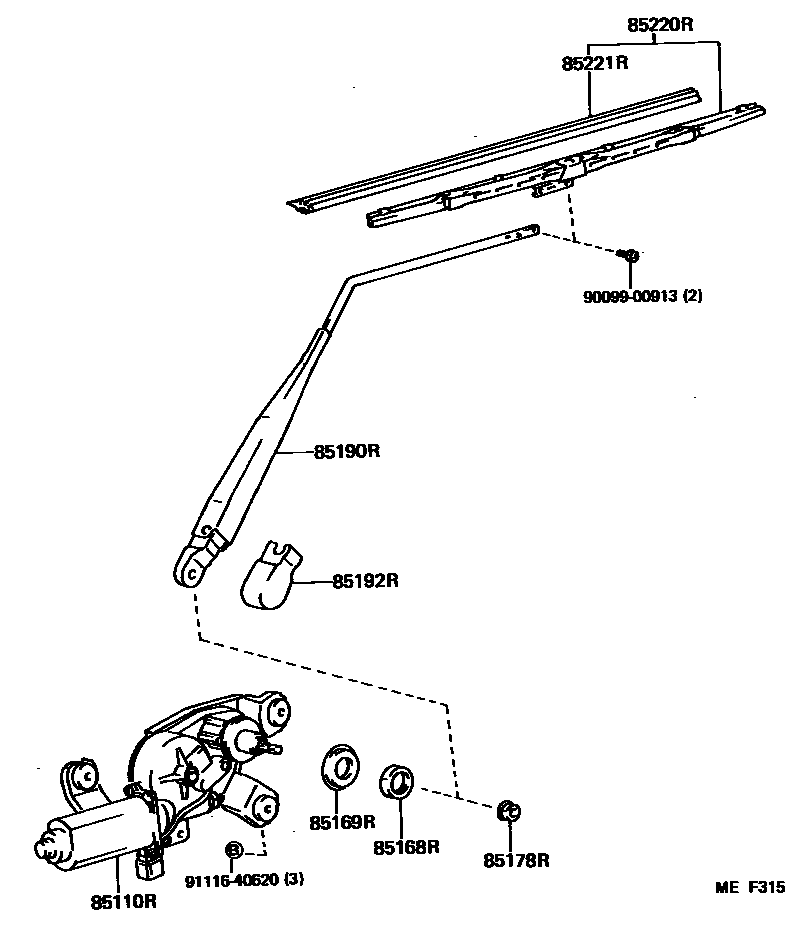

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-90K05iBJ73,LJ7#,RJ7#..HT198411-199001

12V

main85110-90K06iBJ70,73198411-198510

24V

main85110-90K06iBJ7#..HT198510-199001

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iBJ70,73,LJ70,RJ70..HT198411-199001

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iBJ70,73,LJ70,RJ70..HT198411-199001

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iBJ7#,LJ7#,RJ7#..HT198411-199001

sub90179-06159

85190RARM ASSY, REAR WIPER

main85190-90K06iBJ70,73,LJ70,RJ70..HT198411-199001

85192RCOVER, REAR WIPER ARM

main85195-95J01iBJ70,73,LJ70,RJ70..HT198411-199001

85220RBLADE ASSY, REAR WIPER

main85220-22300iBJ70,73,LJ70,RJ70..HT198411-199001

85221RBLADE, REAR WIPER

main85221-16070iBJ70,73,LJ70,RJ70..HT198411-199001

sub85214-12H90

9009900913

main90099-00913

9111640620

main91116-40620

10 parts on this diagram · 1 diagram in section
