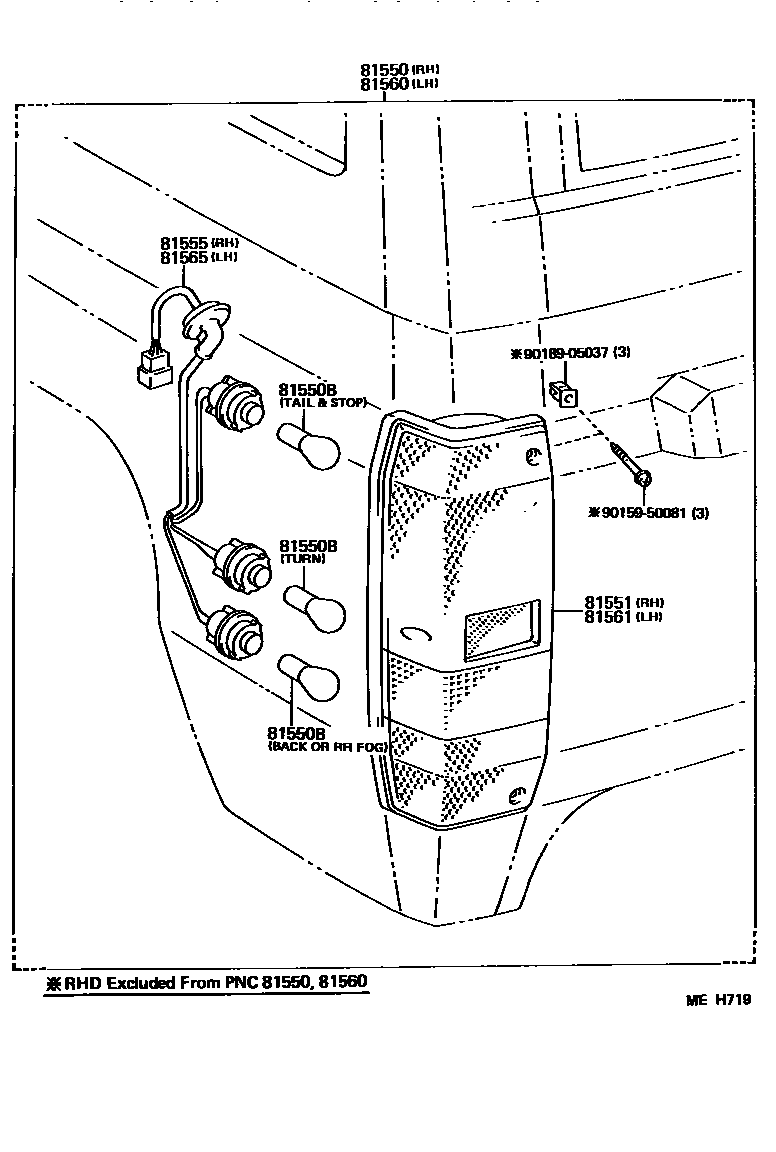

REAR COMBINATION LAMP

0001 1 0003 1 0005 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-69115iBJ73,LJ70,RJ70¥16,900198411-198510

12V

main81550-69145iBJ7#..HT¥16,900198411-198510

24V

main81550-69155iBJ75..PIC¥12,900198411-198608

sub81550-90K06¥12,400

main81550-90K00iLJ70..RHD..LX¥17,000198608-199001

main81550-90K03iBJ70..RHD¥16,700198608-198808

main81550-90K06iBJ75..PIC¥12,400198608-198706

sub81550-90K17¥14,600

main81550-90K12iBJ7#..LHD..HT..(LX,STD)¥15,800198510-199001

24V,NO.1

main81550-90K13iBJ7#..LHD..HT..(LX,STD)¥12,300198510-198708

24V,NO.2

main81550-90K14iBJ73,LJ7#,RJ7#..LHD¥15,800198510-199001

12V,NO.1

main81550-90K15iBJ73,LJ7#,RJ7#..LHD¥12,300198510-198708

12V,NO.2

main81550-90K17iBJ75..PIC¥14,600198706-199001

main81550-90K18iBJ73,LJ7#,RJ7#..LHD¥7,500198708-199001

12V,NO.2

main81550-90K18iLJ70..RHD..VX¥7,500198801-199001

NO.2

main81550-90K19iBJ7#..LHD..HT..(LX,STD)198708-199001

24V,NO.2

main81550-90K20iLJ70..RHD..VX¥10,500198801-199001

NO.1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBJ7#..LHD..(LX,STD)¥270198411-199001

24V 21W,24V 21W(BACK,TURN & RR FOG)

main90981-16015iBJ7#..LX,STD¥350198411-199001

24V 21/5W,24V 21/5W(TAIL & STOP)

main99132-11210iLJ70..RHD..VX¥170198411-199001

12V 21W,12V 21W(BACK,TURN & RR FOG)

main99132-11230iLJ70..RHD..LX198608-199001

12V 23W,12V 23W(BACK & TURN)

main99132-21210iBJ73,LJ70,RJ7#¥190198411-199001

12V 21/5W,12V 21/5W(TAIL & STOP)

main99134-11250iBJ70..RHD¥230198608-198808

24V 25W,24V 25W(BACK & TURN)

81551LENS, REAR COMBINATION LAMP, RH

main81551-90K00iLJ70..RHD..LX¥14,800198608-199001

main81551-90K01iBJ7#,LJ70,RJ70..HT¥15,100198411-198510

main81551-90K03iBJ70..RHD¥9,400198608-198808

main81551-90K14iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)¥10,600198510-199001

NO.1

sub81551-60A21¥3,410

main81551-90K15iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)¥1,530198510-199001

NO.2

sub81551-60350

main81551-90K20iLJ70..RHD..VX¥7,400198801-199001

NO.1

main81551-95403iBJ75..PIC¥3,130198411-199001

sub81551-95417¥3,120

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-90K00iLJ70..RHD..LX¥2,440198608-199001

main81555-90K01iBJ73,LJ70,RJ70¥5,500198411-198510

12V

main81555-90K03iBJ70..RHD¥2,440198608-198808

sub81555-90K00¥2,440

main81555-90K04iBJ7#..HT¥5,500198411-198510

24V

sub81555-90K01¥5,500

main81555-90K12iBJ7#..LHD..HT..STD¥2,840198510-199001

24V

sub81555-90K14¥2,840

main81555-90K14iBJ73,LJ7#,RJ7#..LHD¥2,840198510-199001

12V

main81565-90K14iLJ70..RHD..VX¥3,580198801-199001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-69115iBJ73,LJ70,RJ70¥16,900198411-198510

12V

main81560-69145iBJ7#..HT¥16,900198411-198510

24V

main81560-69155iBJ75..PIC¥12,900198411-198608

sub81560-90K06¥12,400

main81560-90K00iLJ70..RHD..LX¥17,000198608-199001

main81560-90K03iBJ70..RHD¥16,700198608-199001

main81560-90K06iBJ75..PIC¥12,400198608-198706

sub81560-90K17¥14,600

main81560-90K12iBJ7#..LHD..HT..(LX,STD)¥16,700198510-199001

24V,NO.1

main81560-90K13iBJ7#..LHD..HT..(LX,STD)¥12,300198510-198708

24V,NO.2

main81560-90K14iBJ73,LJ7#,RJ7#..LHD¥16,700198510-199001

12V,NO.1

main81560-90K14iLJ70..RHD..VX¥16,700198801-199001

NO.1

main81560-90K15iBJ73,LJ7#,RJ7#..LHD¥12,300198510-198708

12V,NO.2

main81560-90K17iBJ75..PIC¥14,600198706-199001

main81560-90K18iLJ70..RHD..VX¥7,500198801-199001

NO.2

main81560-90K18iBJ73,LJ7#,RJ7#..LHD¥7,500198708-199001

12V,NO.2

main81560-90K19iBJ7#..LHD..HT..(LX,STD)198708-199001

24V,NO.2

81561LENS, REAR COMBINATION LAMP, LH

main81561-90K00iLJ70..RHD..LX¥14,800198608-199001

main81561-90K01iBJ7#,LJ70,RJ70..HT¥15,000198411-198510

main81561-90K03iBJ70..RHD¥9,400198608-198808

main81561-90K14iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)¥10,600198510-199001

NO.1

sub81561-60861¥6,700

main81561-90K15iLJ70..RHD..VX¥1,530198510-199001

NO.2

sub81561-60270

main81561-95403iBJ75..PIC¥3,130198411-199001

sub81561-95418¥3,130

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-90K00iLJ70..RHD..LX¥2,440198608-199001

main81555-90K03iBJ70..RHD¥2,440198608-198808

sub81555-90K00¥2,440

main81565-90K01iBJ73,LJ70,RJ70¥5,500198411-198510

12V

main81565-90K04iBJ7#..HT¥5,500198411-198510

24V

sub81565-90K01¥5,500

main81565-90K12iBJ7#..LHD..HT..STD¥3,580198510-199001

24V

sub81565-90K14¥3,580

main81565-90K14iBJ73,LJ7#,RJ7#..LHD¥3,580198511-199001

12V

main81565-90K14iLJ70..RHD..VX¥3,580198801-199001

9015950081

main90159-50081¥190

9018905037

main90189-05037¥130

9 parts on this diagram · 3 diagrams in section
