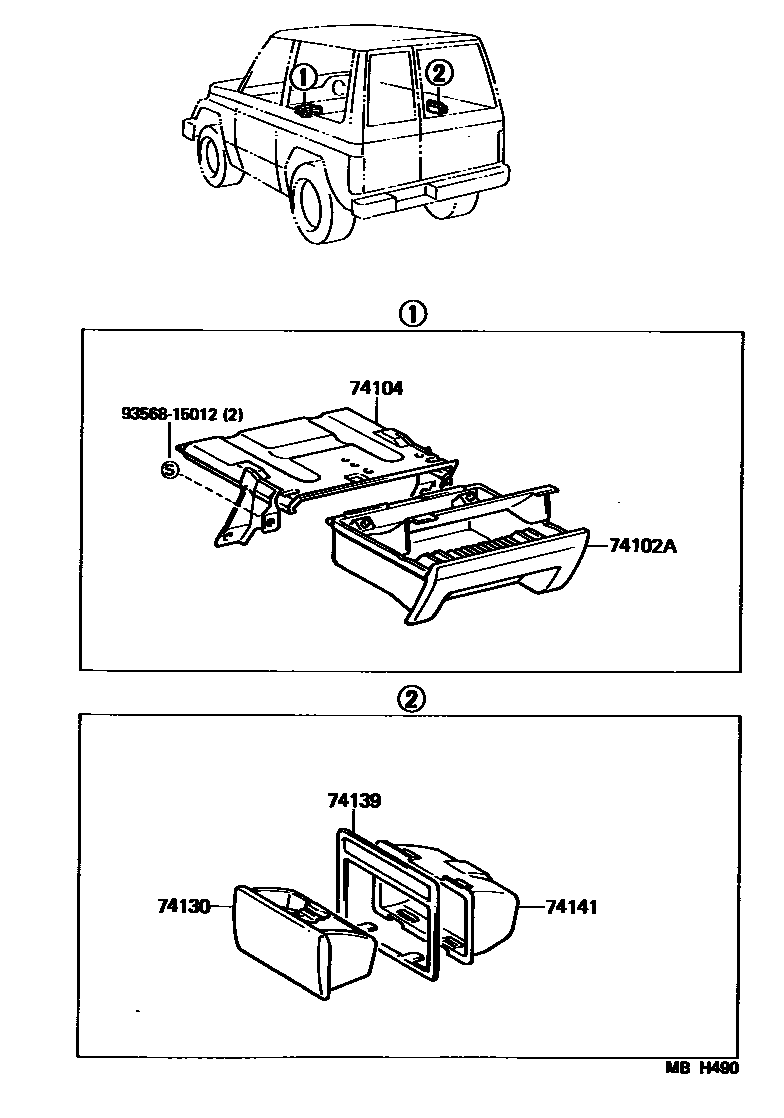

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-90K00-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,GRAY

sub74102-60040

main74102-90K00-05iBJ7#,LJ7#,RJ7#198411-199001

BEIGE,BEIGE

sub74102-60040

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-90K00iBJ7#,LJ7#,RJ7#198411-199001

sub74104-60030

74130RECEPTACLE ASSY, REAR ASH

main74105-10010-10iBJ73,LJ73,RJ73198411-199001

GRAY,SEPIA BROWN

sub74105-10010

main74105-10010-16iBJ73,LJ73,RJ73198411-199001

BROWN,BROWN

sub74105-10010

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iBJ73,LJ73,RJ73198411-199001

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iBJ73,LJ73,RJ73198411-199001

9356815012

main93568-15012

6 parts on this diagram · 1 diagram in section
