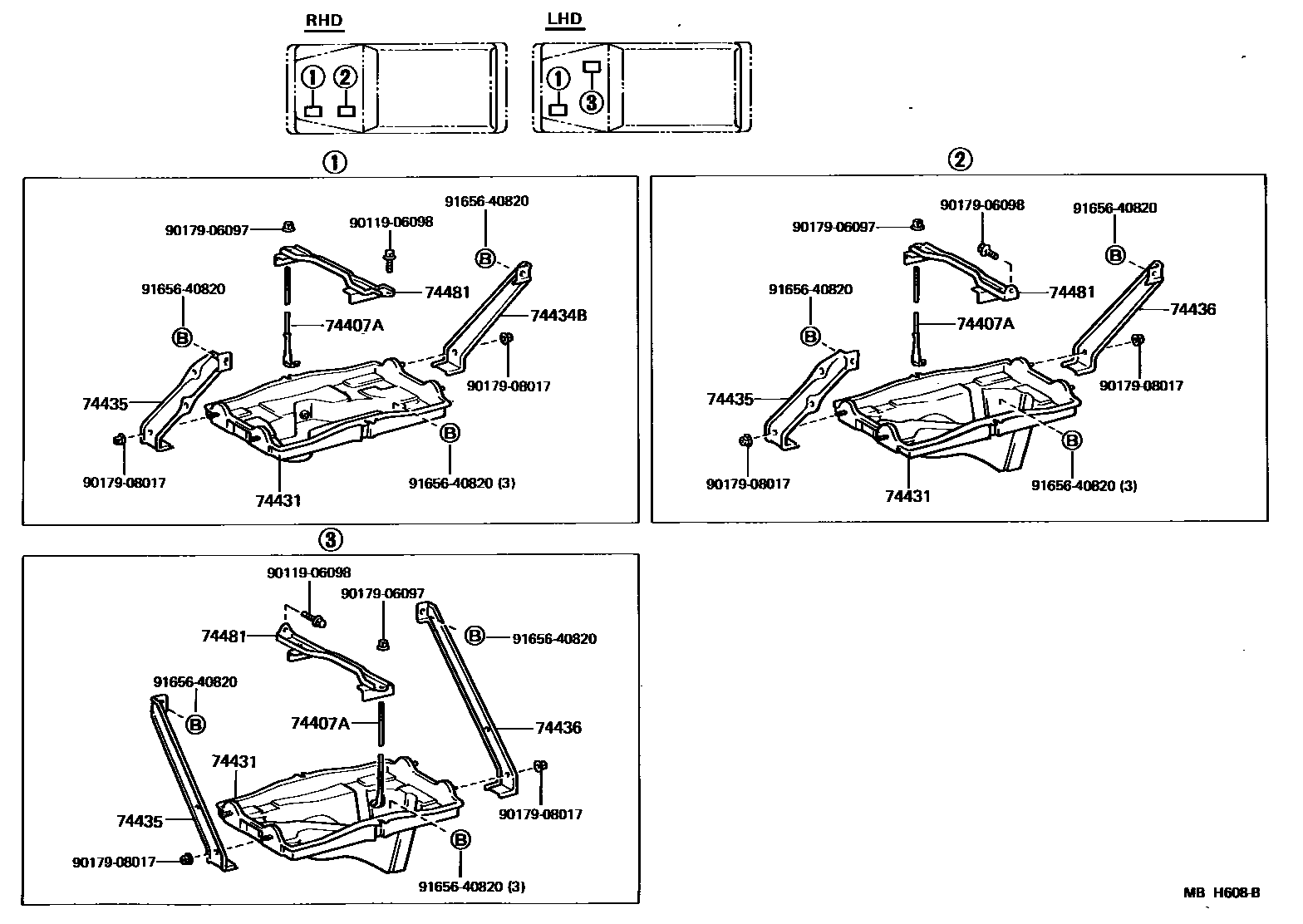

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-90K00iLJ7#..LHD¥390198411-198704

RH,COLD SPEC

main74407-90K00iBJ7#,RJ7#¥390198411-198704

LH

main74451-30080iLJ70..RHD¥380198608-198610

LH,COLD SPEC

main74451-90K02iLJ70..RHD¥390198610-199001

LH,COLD SPEC

sub74451-30080¥380

74431TRAY, BATTERY

main74431-30010iLJ70..RHD¥3,640198608-198704

LH,COLD SPEC

main74431-90K00iLJ7#..LHD¥6,500198411-198704

RH,COLD SPEC

sub74431-60050¥6,500

sub74407-60010¥1,140

main74431-90K00iRJ7#¥6,500198411-198704

LH

sub74431-60050¥6,500

sub74407-60010¥1,140

main74431-90K00iBJ70..RHD¥6,500198608-198704

FR

sub74431-60050¥6,500

sub74407-60010¥1,140

main74432-90K01iBJ70..RHD¥7,600198608-198704

RR

main74432-90K01iBJ7#..LHD¥7,600198411-198704

RH

74434BSUPPORT, BATTERY TRAY, NO.2

main74402-90K00iLJ70..RHD¥7,100198608-199001

LH,COLD SPEC

main74402-90K00iRJ70..CBR¥7,100198808-199001

main74402-90K01iLJ7#..LX,STD¥4,940198608-199001

LH

main74402-90K01iRJ7#..EFI¥4,940198812-199001

main74434-90K00iRJ7#¥4,680198411-198808

main74434-90K01iLJ7#¥2,530198411-198608

LH

main74434-90K02iBJ7#¥2,490198411-198510

sub74434-90K03¥3,590

main74434-90K03iBJ7#¥3,590198510-199001

74435SUPPORT, BATTERY TRAY, NO.3

main74435-90K00iLJ7#..LHD¥4,630198411-199001

RH,COLD SPEC

main74435-90K01iBJ7#..LHD¥2,940198411-199001

RH

main74435-90K02iBJ70,73,75..LHD¥3,940198411-199001

LH

main74435-90K02iBJ70..RHD¥3,940198608-199001

FR

main74435-90K03iBJ71¥3,940198510-199001

LH

main74435-90K03iBJ70..RHD¥3,940198608-199001

RR

74436SUPPORT, BATTERY TRAY, NO.4

main74436-90K00iLJ7#..LHD¥6,300198411-199001

RH,COLD SPEC

main74436-90K01iBJ7#..LHD¥4,170198411-199001

RH

main74436-90K02iBJ70..RHD¥4,170198608-199001

74481CLAMP, BATTERY HOLD DOWN

main74404-90K00iRJ7#¥2,520198411-199001

LH

main74404-90K01iBJ7#..LX,STD¥2,260198411-199001

LH

sub74404-60090¥2,270

main74404-90K01iBJ70..RHD¥2,260198608-199001

FR

sub74404-60090¥2,270

main74404-90K03iLJ70..RHD¥2,710198608-199001

LH,COLD SPEC

main74405-90K00iLJ7#..LHD198411-199001

RH,COLD SPEC

main74405-90K01iBJ70..RHD¥2,260198608-199001

RR

sub74405-60030¥2,270

main74405-90K01iBJ7#..LHD¥2,260198411-199001

RH

sub74405-60030¥2,270

9011906098

main90119-06098¥80

9017906097

main90179-06097¥320

9017906098

main90179-06098¥300

9017908017

main90179-08017¥190

9165640820

main91656-40820¥140

11 parts on this diagram · 4 diagrams in section
