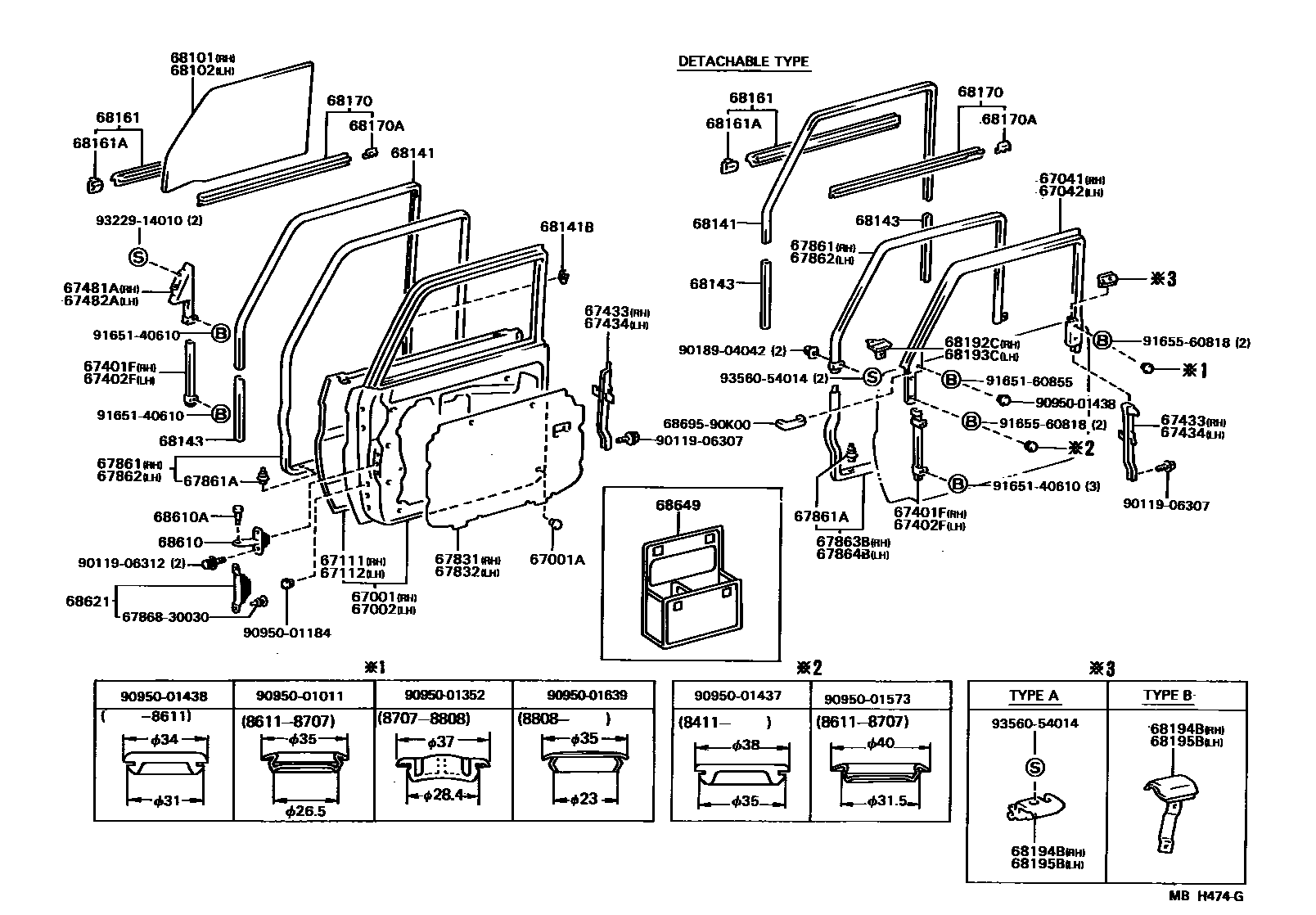

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90K05iBJ70,75,LJ70,RJ70..HT¥76,300198411-198510

sub67001-90K21¥76,700

main67001-90K06iBJ73;BJ75,LJ70..PIC,SOT¥76,300198411-198510

sub67001-90K22¥76,700

main67001-90K07iBJ73;LJ70..SOT¥86,700198411-198510

W/*DTY DOOR FRAME

sub67001-90K23¥87,100

main67001-90K21iBJ70,71,75,LJ70,RJ70..HT¥76,700198510-198708

main67001-90K22iBJ73,LJ73,RJ73..LX,STD¥76,700198510-198708

main67001-90K23iBJ73,LJ73,RJ73¥87,100198510-198708

W/*DTY DOOR FRAME

main67001-90K37iBJ70,71,75,LJ70,RJ70..HT¥77,100198708-199001

sub67001-60100¥76,400

main67001-90K38iBJ75,LJ70..PIC,SOT¥77,100198708-199001

sub67001-60110¥76,400

main67001-90K39iLJ70..SOT¥87,500198708-199001

W/*DTY DOOR FRAME

sub67001-60120¥76,400

67001ACUSHION, FRONT DOOR PANEL

main90541-09038iBJ7#,LJ7#,RJ7#¥200198411-199001

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-90K04iBJ73;LJ70..SOT¥86,700198411-198510

W/*DTY DOOR FRAME

sub67002-90K20¥87,100

main67002-90K05iBJ70,75,LJ70,RJ70..HT¥76,300198411-198510

sub67002-90K21¥76,700

main67002-90K06iBJ73;BJ75,LJ70..PIC,SOT¥76,300198411-198510

sub67002-90K22¥76,700

main67002-90K20iLJ70..SOT¥87,100198510-198708

W/*DTY DOOR FRAME

main67002-90K21iBJ70,71,75,LJ70,RJ70..HT¥76,700198510-198708

main67002-90K22iBJ75,LJ70..PIC,SOT¥76,700198510-198708

main67002-90K36iLJ70..SOT¥87,500198708-199001

W/*DTY DOOR FRAME

sub67002-60100¥76,400

main67002-90K37iBJ70,71,75,LJ70,RJ70..HT¥77,100198708-199001

sub67002-60110¥76,400

main67002-90K38iBJ75,LJ70..PIC,SOT¥77,100198708-199001

sub67002-60120¥76,400

67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH

main67041-90K02iBJ73,LJ73,RJ73¥11,900198411-199001

sub67041-60040¥7,400

67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH

main67042-90K02iBJ73,LJ73,RJ73¥11,900198411-199001

sub67042-60040¥7,400

67111PANEL, FRONT DOOR, OUTER RH

main67111-90K03iBJ73,LJ73,RJ73¥28,600198411-199001

W/*DTY DOOR FRAME

sub67111-60080¥31,200

main67111-90K05iBJ7#,LJ7#,RJ7#..LX,STD,VX¥28,600198411-199001

sub67111-60100¥31,200

67112PANEL, FRONT DOOR, OUTER LH

main67112-90K04iBJ7#,LJ7#,RJ7#..LX,STD,VX¥28,600198411-199001

sub67112-60100¥31,200

main67112-90K05iBJ73,LJ73,RJ73¥28,600198411-199001

W/*DTY DOOR FRAME

sub67112-60080¥31,200

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VX¥1,550198411-199001

main67401-90K01iBJ73,LJ73,RJ73¥1,980198411-199001

W/*DTY DOOR FRAME

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VX¥1,550198411-199001

main67402-90K01iBJ73,LJ73,RJ73¥1,980198411-199001

W/*DTY DOOR FRAME

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-90K00iBJ73,LJ73,RJ73¥1,400198411-199001

W/*DTY DOOR FRAME

main67403-90K01iBJ70,71,73,LJ7#,RJ7#..LX,STD¥1,810198411-199001

main67403-90K02iBJ7#,LJ7#,RJ7#..STD¥2,560198510-199001

W/*EL

main67403-90K03iLJ70..SOT¥2,120198510-199001

W/*EL,*DTY DOOR FRAME

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-90K00iBJ73,LJ73,RJ73¥1,400198411-199001

W/*DTY DOOR FRAME

main67404-90K01iBJ7#,LJ7#,RJ7#..LX,STD¥1,810198411-199001

main67404-90K02iBJ70,71,73,LJ7#,RJ7#..STD¥2,560198510-199001

W/*EL

main67404-90K03iBJ73,LJ73,RJ73¥2,120198510-199001

W/*EL,*DTY DOOR FRAME

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-90K00iBJ7#,LJ7#,RJ7#..LX,STD¥1,810198411-198612

sub67481-90K02¥1,140

main67481-90K02iBJ7#,LJ7#,RJ7#..LX,STD,VX¥1,140198612-199001

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-90K00iBJ7#,LJ7#,RJ7#..LX,STD¥1,810198411-198612

sub67482-90K02¥1,140

main67482-90K02iBJ7#,LJ7#,RJ7#..LX,STD,VX¥1,140198612-199001

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-90K02iBJ7#,LJ70,RJ70¥950198411-198510

sub67831-90K04¥950

main67831-90K04iBJ7#,LJ7#,RJ7#¥950198510-199001

sub67831-60070¥940

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-90K02iBJ7#,LJ70,RJ70¥950198411-198510

sub67831-90K04¥950

main67831-90K04iBJ7#,LJ7#,RJ7#¥950198510-199001

sub67831-60070¥940

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90K00iBJ75..HT¥6,400198411-199001

sub67861-60030¥6,300

main67861-90K01iBJ75,LJ70..PIC,SOT¥6,300198411-199001

sub67861-60040¥3,870

main67861-90K02iBJ73,LJ73,RJ73¥2,130198411-199001

W/DETACHABLE DOOR FRAME

main67861-90K06iBJ70,71,LJ70,RJ70..HT¥7,800198411-199001

sub67861-60050¥7,500

main67861-90K07iBJ73,LJ73,RJ73..LX,STD¥11,800198411-199001

sub67861-60060¥11,600

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iBJ7#,LJ7#,RJ7#¥110198411-199001

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90K00iBJ75..HT¥6,400198411-199001

sub67862-60030¥6,300

main67862-90K01iBJ75,LJ70..PIC,SOT¥6,300198411-199001

sub67862-60040¥3,870

main67862-90K02iBJ73,LJ73,RJ73¥2,130198411-199001

W/DETACHABLE DOOR FRAME

main67862-90K06iBJ70,71,LJ70,RJ70..HT¥7,800198411-199001

sub67862-60050¥7,500

main67862-90K07iBJ73,LJ73,RJ73..LX,STD¥11,800198411-199001

sub67862-60060¥11,600

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-90K00iBJ73,LJ73,RJ73¥3,300198411-199001

W/DETACHABLE DOOR FRAME

sub67863-60010¥2,060

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-90K00iBJ73,LJ73,RJ73¥3,300198411-199001

W/DETACHABLE DOOR FRAME

sub67864-60010¥2,060

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-90K00iBJ70,71,75,LJ70,RJ70..HT..(LX,STD)¥18,900198411-199001

*TEM,T=4.0,*TEM,T=4.0

sub68111-60170¥12,200

main68111-90K01iBJ73,LJ73,RJ73¥18,900198411-199001

*TEM,T=4.0,*TEM,T=4.0

sub68111-60190¥12,200

main68111-90K04iBJ70,71,75,LJ70,RJ70..HT¥19,600198411-199001

*TT,T=4.0,*TT,T=4.0

sub68111-60170¥12,200

main68111-90K05iBJ75,LJ70..PIC,SOT¥19,600198411-199001

*TT,T=4.0,*TT,T=4.0

sub68111-60190¥12,200

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-90K00iLJ70..LHD..VX¥18,900198411-199001

*TEM,T=4.0,*TEM,T=4.0

sub68112-60160¥12,200

main68112-90K01iBJ73,LJ73,RJ73¥18,900198411-199001

*TEM,T=4.0,*TEM,T=4.0

sub68112-60180¥12,200

main68112-90K04iBJ70,71,75,LJ70,RJ70..HT¥19,600198411-199001

*TT,T=4.0,*TT,T=4.0

sub68112-60160¥12,200

main68112-90K05iBJ73,LJ73,RJ73¥19,600198411-199001

*TT,T=4.0,*TT,T=4.0

sub68112-60180¥12,200

68141RUN, FRONT DOOR GLASS

main68141-90K02iLJ70..SOT¥1,560198411-199001

W/*DTY DOOR FRAME

main68141-90K03iBJ70,71,75,LJ70,RJ70..HT¥2,110198411-199001

main68141-90K04iBJ75,LJ70..PIC,SOT¥2,110198411-199001

68141BCLIP, DOOR GLASS RUN

main62367-10010iBJ7#,LJ7#,RJ7#¥180198411-199001

68143RUN, FRONT DOOR GLASS, LOWER

main68142-90K00iBJ73,LJ73,RJ73¥400198411-199001

RR,W/*DTY DOOR FRAME

main68143-90K00iBJ7#,LJ7#,RJ7#¥460198411-199001

FR

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VX¥2,820198411-199001

RH

main68160-90K02iBJ73,LJ73,RJ73¥2,820198411-199001

RH,W/*DTY DOOR FRAME

main68210-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VX¥2,820198411-199001

LH

main68210-90K02iBJ73,LJ73,RJ73¥2,820198411-199001

LH,W/*DTY DOOR FRAME

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-90K00iBJ7#,LJ7#,RJ7#¥130198411-199001

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-90K00iBJ7#,LJ7#,RJ7#..LX,STD¥2,190198411-199001

RH

main68170-90K02iLJ70..SOT¥2,190198411-199001

RH,W/*DTY DOOR FRAME

main68170-90K03iLJ70..VX¥3,720198708-199001

RH

sub68170-60070¥3,700

main68220-90K00iBJ7#,LJ7#,RJ7#..LX,STD¥2,190198411-199001

LH

main68220-90K02iBJ73,LJ73,RJ73¥2,190198411-199001

LH,W/*DTY DOOR FRAME

main68220-90K03iLJ70..VX¥3,720198708-199001

LH

sub68220-60030¥3,700

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iBJ7#,LJ7#,RJ7#¥240198411-199001

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-90K00iBJ73,LJ73,RJ73¥590198411-199001

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-90K00iBJ73,LJ73,RJ73¥590198411-199001

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-90K00iLJ70..SOT¥380198411-199001

TYPE A

main68194-90K01iBJ73,LJ73,RJ73¥1,000198411-199001

TYPE B

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-90K00iBJ73,LJ73,RJ73¥380198411-199001

TYPE A

main68195-90K01iBJ73,LJ73,RJ73¥1,000198411-199001

TYPE B

68610CHECK ASSY, FRONT DOOR

main68610-12030iBJ7#,LJ7#,RJ7#¥3,700198411-199001

sub68610-60040¥2,330

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010iBJ7#,LJ70,RJ70¥300198411-198510

sub68617-12010¥280

main68617-90A01iBJ7#,LJ7#,RJ7#¥300198510-199001

68621SEAL, DOOR CHECK

main68621-90K00iBJ7#,LJ7#,RJ7#¥620198411-199001

68649BAG, DOOR WINDOW FRAME HOLE COVER

main68649-90K00iBJ73,LJ73,RJ73¥1,360198411-199001

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030¥190

6869590K00PAD, BACK DOOR WINDOW FRAME

main68695-90K00¥230

9011906307

main90119-06307¥160

9011906312

main90119-06312¥70

9018904042

main90189-04042¥110

9095001011

main90950-01011¥170

9095001184

main90950-01184¥520

9095001352

main90950-01352¥270

9095001437

main90950-01437¥130

9095001438

main90950-01438¥330

9095001573

main90950-01573¥200

9095001639

main90950-01639¥120

9165140610

main91651-40610¥160

9165160855

main91651-60855¥230

9165560818

main91655-60818¥170

9322914010

main93229-14010¥110

9356054014

main93560-54014¥60

54 parts on this diagram · 2 diagrams in section
