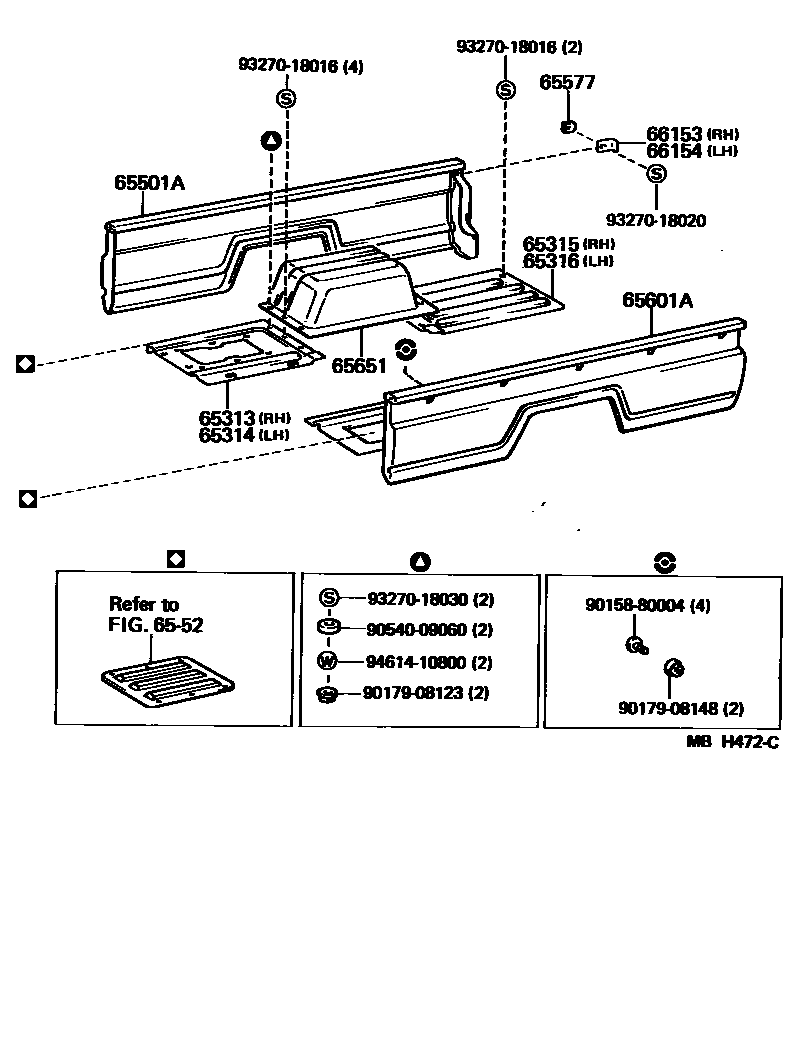

REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
65314PANEL, FLOOR FRONT CORNER, LH
65315PANEL, FLOOR REAR CORNER, RH
sub65315-37010
65316PANEL, FLOOR REAR CORNER, LH
sub65316-37010
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
W/TARPORIN
6552
65577RETAINER, TAIL GATE LATCH FEMALE
65601APANEL SUB-ASSY, REAR BODY SIDE, LH
W/TARPORIN
65651PANEL, WHEEL HOUSE
sub65651-37010
66153LATCH, TAIL GATE FEMALE, RH
66154LATCH, TAIL GATE FEMALE, LH
9015880004
main90158-80004
9017908123
main90179-08123
9017908148
main90179-08148
9054009060
main90540-09060
9327018016
main93270-18016
9327018020
main93270-18020
9327018030
main93270-18030
9461410800
main94614-10800
19 parts on this diagram · 1 diagram in section
