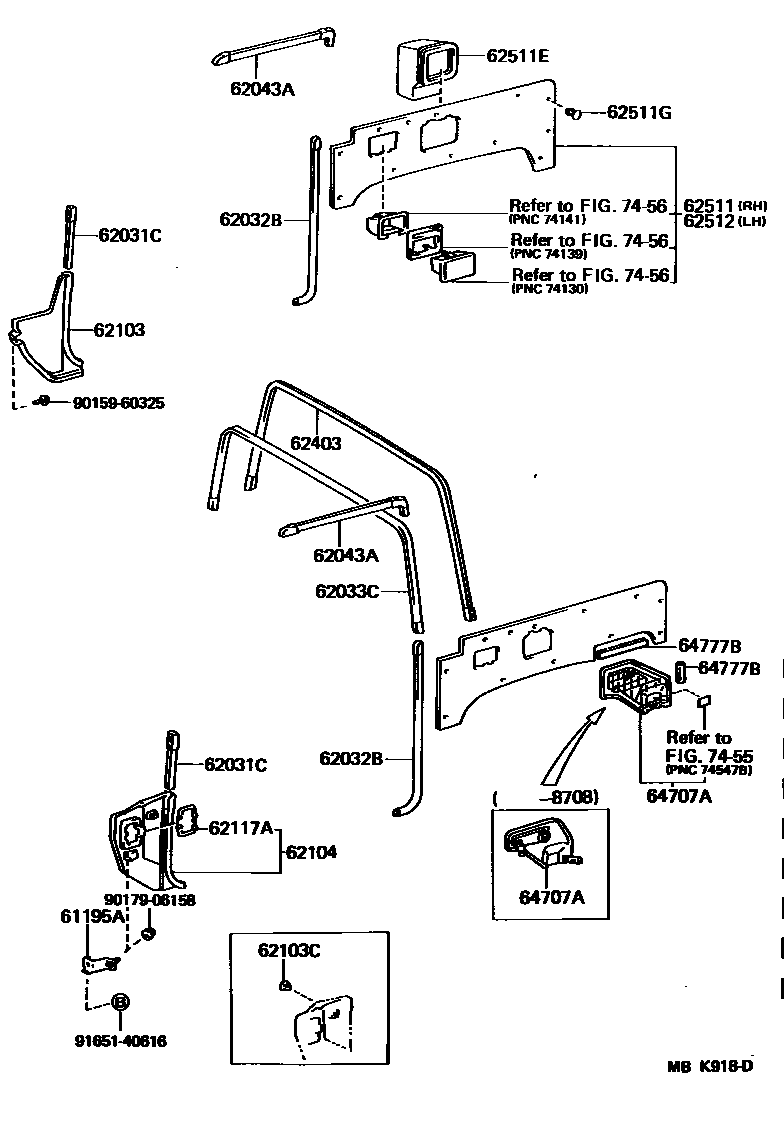

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1

61195ABRACKET, COWL SIDE TRIM, LH

main61195-90K00iBJ7#,LJ7#,RJ7#..LHD198608-199001

62031CTRIM SUB-ASSY, FRONT DOOR OPENING, NO.1

main62031-90K00-03iBJ73,LJ73,RJ73198411-199001

GRAY,SHADOW GRAY

sub62031-90K00

main62031-90K00-06iBJ75,LJ70..PIC,SOT198411-199001

BROWN,SEPIA BROWN

sub62031-90K00

62032BTRIM SUB-ASSY, FRONT DOOR OPENING, NO.2

main62032-90K00-03iBJ75,LJ70..PIC,SOT198411-199001

GRAY,SHADOW GRAY

sub62032-90K00

main62032-90K00-06iBJ75,LJ70..PIC,SOT198411-199001

BROWN,SEPIA BROWN

sub62032-90K00

62033CTRIM SUB-ASSY, FRONT DOOR OPENING, NO.3

main62033-90K00-03iBJ75..PIC198411-199001

GRAY,SHADOW GRAY

sub62033-90K00

main62033-90K00-06iBJ75..PIC198411-199001

BROWN,SEPIA BROWN

sub62033-90K00

main62033-90K01-08iLJ70..SOT198411-199001

IVORY,IVORY

main63331-90K00-08iBJ73,LJ73,RJ73198411-199001

IVORY,IVORY

sub63391-60050

62043ATRIM SUB-ASSY, FRONT DOOR OPENING, NO.4

main62043-90K00-08iLJ70..SOT198411-199001

RH,IVORY,IVORY

main62044-90K00-08iBJ73,LJ73,RJ73198411-199001

LH,IVORY,IVORY

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-90K03-03iBJ7#,LJ7#,RJ7#..LHD198411-199001

GRAY,SHADOW GRAY

sub62101-90K03

main62101-90K03-06iBJ7#,LJ7#,RJ7#..LHD198411-199001

BROWN,SEPIA BROWN

sub62101-90K03

main62101-90K07-03iBJ70,LJ70..RHD198608-199001

GRAY,SHADOW GRAY

sub62101-90K07

main62101-90K07-06iBJ70,LJ70..RHD198608-199001

BROWN,SEPIA BROWN

sub62101-90K07

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-09012-23iBJ7#,LJ7#,RJ7#198411-198608

GRAY,SHADOW GRAY

sub90467-09012

main90467-09012-36iBJ7#,LJ7#,RJ7#198411-198608

BROWN,SEPIA BROWN

sub90467-09012

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-90K00-03iBJ7#,LJ7#,RJ7#198411-198608

GRAY,SHADOW GRAY

sub62102-90K07

sub61195-90K00

sub90179-06158

main62102-90K00-06iBJ7#,LJ7#,RJ7#198411-198608

BROWN,SEPIA BROWN

sub62102-90K07

sub61195-90K00

sub90179-06158

main62102-90K01-03iBJ70,LJ70..RHD198608-199001

GRAY,SHADOW GRAY

sub62102-90K01

sub62102-90K02

main62102-90K01-06iBJ70,LJ70..RHD198608-199001

BROWN,SEPIA BROWN

sub62102-90K01

sub62102-90K02

main62102-90K06-03iBJ7#..LHD198608-199001

W/*DL,GRAY,SHADOW GRAY

main62102-90K06-06iBJ75198608-199001

W/*DL,BROWN,SEPIA BROWN

main62102-90K07-03iBJ7#,LJ7#,RJ7#..LHD198608-199001

GRAY,SHADOW GRAY

sub62102-90K07

main62102-90K07-06iBJ7#,LJ7#,RJ7#..LHD198608-199001

BROWN,SEPIA BROWN

sub62102-90K07

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-90K00-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub62117-90K00

main62117-90K00-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub62117-90K00

62403TRIM SUB-ASSY, ROLL OVER PANEL

main62403-90K00-08iBJ73,LJ73,RJ73198411-199001

IVORY,IVORY

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-90K00-03iLJ70..SOT198411-198608

GRAY,GRAY

main62510-90K00-05iLJ70..SOT198411-198608

BEIGE,BEIGE

main62510-90K01-03iBJ70,LJ70,RJ70..HT..STD198411-199001

GRAY,GRAY

main62510-90K01-05iBJ70,71,LJ70,RJ70..HT198411-199001

BEIGE,BEIGE

main62510-90K04-03iBJ73..STD,VM198411-199001

GRAY,GRAY

main62510-90K04-05iBJ73,LJ73,RJ73198411-199001

BEIGE,BEIGE

main62510-90K06-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

W/*RW,GRAY,GRAY

main62510-90K06-05iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

W/*RW,BEIGE,BEIGE

main62510-90K08-03iBJ70..LHD198608-198808

*SWZ,W/PARALLEL SEAT,*RW,GRAY,GRAY

sub62510-90K08

main62510-90K08-03iRJ70..EFI198812-199001

W/PARALLEL SEAT,*RW,GRAY,GRAY

sub62510-90K08

main62510-90K08-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

W/O RR SEAT,W/*RW,GRAY,GRAY

sub62510-90K08

main62510-90K08-05iBJ70..LHD198608-198808

*SWZ,W/PARALLEL SEAT,*RW,BEIGE,BEIGE

sub62510-90K08

main62510-90K08-05iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

W/O RR SEAT,W/*RW,BEIGE,BEIGE

sub62510-90K08

main62510-90K08-05iRJ70..EFI198812-199001

W/PARALLEL SEAT,*RW,BEIGE,BEIGE

sub62510-90K08

main62510-90K09-03iBJ73,LJ73,RJ73198411-199001

W/*RW,GRAY,GRAY

main62510-90K09-05iBJ73,LJ73,RJ73198411-199001

W/*RW,BEIGE,BEIGE

main62510-90K18-03iBJ73,LJ73,RJ73198411-199001

W/O RR SEAT,W/*RW,GRAY,GRAY

sub62510-90K10

main62510-90K18-03iBJ73..LX,STD198608-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62510-90K10

main62510-90K18-05iBJ73..LX,STD198608-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62510-90K10

main62510-90K18-05iBJ73,LJ73,RJ73..LX,STD198411-199001

W/O RR SEAT,W/*RW,BEIGE,BEIGE

sub62510-90K10

main62510-90K21-03iBJ75..HT198411-199001

FR,GRAY,GRAY

sub62510-90K21

main62510-90K21-05iBJ75..HT198411-199001

FR,BEIGE,BEIGE

sub62510-90K21

main62510-90K22-03iBJ75..HT198411-199001

FR,W/RR SEAT BELT,GRAY,GRAY

sub62510-90K22

main62510-90K22-05iBJ75..HT198411-199001

FR,W/RR SEAT BELT,BEIGE,BEIGE

sub62510-90K22

main62510-90K23-03iBJ75..HT198411-199001

FR,W/*REH,GRAY,GRAY

sub62510-90K23

main62510-90K23-05iBJ75..HT198411-199001

FR,W/*REH,BEIGE,BEIGE

sub62510-90K23

main62510-90K24-03iBJ75..HT198411-199001

FR,W/RR SEAT BELT,*REH,GRAY,GRAY

sub62510-90K24

main62510-90K24-05iBJ75..HT198411-199001

FR,W/RR SEAT BELT,*REH,BEIGE,BEIGE

sub62510-90K24

main62510-90K29-03iLJ70..SOT198608-199001

GRAY,GRAY

main62510-90K29-05iLJ70..SOT198608-199001

BEIGE,BEIGE

main62510-90K32-03iLJ70..VX198708-199001

GRAY,SHADW GRAY

main62510-90K32-05iLJ70..VX198708-199001

BEIGE,BEIGE

main62510-90K34-03iLJ70..LHD..VX198708-199001

W/O RR SEAT,GRAY,GRAY

main62510-90K34-05iLJ70..LHD..VX198708-199001

W/O RR SEAT,BEIGE,BEIGE

main62510-90K37-03iLJ70..SOT198909-199001

W/O RR SEAT,GRAY,GRAY

sub62510-90K37

main62510-90K37-05iLJ70..SOT198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K37

main62510-90K39-03iBJ73..STD198909-199001

W/O RR SEAT,GRAY,GRAY

sub62510-90K39

main62510-90K39-05iBJ73..STD198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K39

main62510-90K41-03iBJ70,LJ70..HT..STD198909-199001

W/O RR SEAT,GRAY,GRAY

sub62510-90K41

main62510-90K41-05iBJ70,LJ70..HT..STD198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K41

main62511-90K02-03iLJ70..SOT198411-198909

W/O RR SEAT,GRAY,GRAY

sub62510-90K37

main62511-90K02-05iLJ70..SOT198411-198909

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K37

main62511-90K04-03iBJ70,71,LJ70,RJ70..HT198411-198909

W/O RR SEAT,GRAY,GRAY

sub62510-90K41

main62511-90K04-03iBJ70..LHD..STD198608-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62510-90K41

main62511-90K04-05iBJ70,LJ70,RJ70..HT..STD198411-198909

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K41

main62511-90K04-05iBJ70..LHD..STD198608-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62510-90K41

main62511-90K10-03iBJ73,LJ73,RJ73198411-198909

W/O RR SEAT,GRAY,GRAY

sub62510-90K39

main62511-90K10-03iBJ73..STD198608-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62510-90K39

main62511-90K10-05iBJ73..STD198411-198909

W/O RR SEAT,BEIGE,BEIGE

sub62510-90K39

main62511-90K10-05iBJ73..STD198608-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62510-90K39

main62630-90K00-03iBJ75..HT198411-199001

RR,GRAY,GRAY

sub62630-90K00

main62630-90K00-05iBJ75..HT198411-199001

RR,BEIGE,BEIGE

sub62630-90K00

main62630-90K06-03iBJ75..HT198510-199001

RR,W/*RW,GRAY,GRAY

main62630-90K06-05iBJ75..HT198510-199001

RR,W/*RW,BEIGE,BEIGE

62511EPOCKET, QUARTER TRIM

main62607-90K00-03iBJ70,71,LJ70,RJ70198411-199001

GRAY,SHADOW GRAY

sub62607-90K00

main62607-90K00-06iBJ73,LJ73,RJ73198411-199001

BROWN,SEPIA BROWN

sub62607-90K00

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-12031-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

GRAY,GRAY

sub90467-12031

main90467-12031-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

W/O RR SEAT,GRAY,GRAY

sub90467-12031

main90467-12031-03iBJ70..LHD198608-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub90467-12031

main90467-12031-03iRJ70..EFI198812-199001

W/PARALLEL SEAT GRAY,GRAY

sub90467-12031

main90467-12031-05iLJ70..SOT198411-199001

BEIGE,BEIGE

sub90467-12031

main90467-12031-05iBJ73,LJ73,RJ73198411-199001

W/O RR SEAT,BEIGE,BEIGE

sub90467-12031

main90467-12031-05iBJ70..LHD198608-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub90467-12031

main90467-12031-05iRJ70..EFI198812-199001

W/PARALLEL SEAT,BEIGE,BEIGE

sub90467-12031

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-90K02-03iLJ70..SOT198411-198708

W/O RR SEAT,GRAY,GRAY

main62512-90K02-05iLJ70..SOT198411-198708

W/O RR SEAT,BEIGE,BEIGE

main62512-90K04-03iBJ70..LHD198608-198708

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62512-90K04

main62512-90K04-03iBJ70,71,LJ70,RJ70..HT198411-198708

W/O RR SEAT,GRAY,GRAY

sub62512-90K04

main62512-90K04-05iBJ70..LHD198608-198708

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62512-90K04

main62512-90K04-05iBJ70,71,LJ70,RJ70..HT198411-198708

W/O RR SEAT,BEIGE,BEIGE

sub62512-90K04

main62512-90K10-03iBJ73,LJ73..LX,STD198608-198708

W/O RR SEAT,GRAY,GRAY

main62512-90K10-03iBJ73,LJ73..LX,STD198608-198708

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

main62512-90K10-05iBJ73,LJ73..LX,STD198608-198708

W/O RR SEAT,BEIGE,BEIGE

main62512-90K10-05iBJ73,LJ73..LX,STD198608-198708

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

main62512-90K22-03iBJ73,LJ73,RJ73198411-198708

W/O RR SEAT,GRAY,GRAY

main62512-90K22-05iBJ73,LJ73,RJ73198411-198708

W/O RR SEAT,BEIGE,BEIGE

main62512-90K30-03iLJ70..SOT198708-198909

W/O RR SEAT,GRAY,GRAY

sub62520-90K36

main62512-90K30-05iLJ70..SOT198708-198909

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K36

main62512-90K33-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198708-198909

W/O RR SEAT,GRAY,GRAY

sub62520-90K39

main62512-90K33-03iRJ70..EFI198812-198909

W/PARALLEL SEAT,*RW,GRAY,GRAY

sub62520-90K39

main62512-90K33-03iBJ70..LHD198708-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62520-90K39

main62512-90K33-05iBJ70,71,LJ70,RJ70..HT..(LX,STD)198708-198909

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K39

main62512-90K33-05iBJ70..LHD198708-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62520-90K39

main62512-90K33-05iRJ70..EFI198812-198909

W/PARALLEL SEAT,*RW,BEIGE,BEIGE

sub62520-90K39

main62512-90K42-03iBJ73..LX,STD198708-198808

*SWZ,W/PARALLEL SEAT,GRAY,GRAY

sub62520-90K38

main62512-90K42-03iBJ73,LJ73,RJ73..LX,STD198708-198909

W/O RR SEAT,GRAY,GRAY

sub62520-90K38

main62512-90K42-05iBJ73,LJ73,RJ73..LX,STD198708-198909

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K38

main62512-90K42-05iBJ73..LX,STD198708-198808

*SWZ,W/PARALLEL SEAT,BEIGE,BEIGE

sub62520-90K38

main62520-90K00-03iLJ70..SOT198411-198608

GRAY,GRAY

main62520-90K00-05iLJ70..SOT198411-198608

BEIGE,BEIGE

main62520-90K01-03iBJ70,71,LJ70,RJ70..HT198411-198708

GRAY,GRAY

main62520-90K01-05iBJ70,71,LJ70,RJ70..HT198411-198708

BEIGE,BEIGE

main62520-90K04-03iBJ73,LJ73,RJ73198411-198708

GRAY,GRAY

main62520-90K04-05iBJ73,LJ73,RJ73198411-198708

BEIGE,BEIGE

main62520-90K13-03iBJ75..HT198411-199001

FR,GRAY,GRAY

sub62520-90K13

main62520-90K13-05iBJ75..HT198411-199001

FR,BEIGE,BEIGE

sub62520-90K13

main62520-90K14-03iBJ75..HT198411-199001

FR,W/RR SEAT BELT,GRAY,GRAY

sub62520-90K14

main62520-90K14-05iBJ75..HT198411-199001

FR,W/RR SEAT BELT,BEIGE,BEIGE

sub62520-90K14

main62520-90K18-03iLJ70..SOT198608-198708

GRAY,GRAY

main62520-90K18-05iLJ70..SOT198608-198708

BEIGE,BEIGE

main62520-90K23-03iLJ70..SOT198708-199001

GRAY,GRAY

sub62520-60280

main62520-90K23-05iLJ70..SOT198708-199001

BEIGE,BEIGE

sub62520-60280

main62520-90K24-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198708-199001

GRAY,GRAY

main62520-90K24-05iBJ70,71,LJ70,RJ70..HT..(LX,STD)198708-199001

BEIGE,BEIGE

main62520-90K27-03iBJ73,LJ73,RJ73198708-199001

GRAY,GRAY

main62520-90K27-05iBJ73,LJ73,RJ73198708-199001

BEIGE,BEIGE

main62520-90K32-03iLJ70..VX198708-199001

GRAY,GRAY

main62520-90K32-05iLJ70..VX198708-199001

BEIGE,BEIGE

main62520-90K33-03iLJ70..LHD..VX198708-199001

W/O RR SEAT,GRAY,GRAY

sub62520-90K33

main62520-90K33-05iLJ70..LHD..VX198708-199001

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K33

main62520-90K36-03iLJ70..SOT198909-199001

W/O RR SEAT,GRAY,GRAY

sub62520-90K36

main62520-90K36-05iLJ70..SOT198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K36

main62520-90K38-03iBJ73,LJ73,RJ73..LX,STD198909-199001

W/O RR SEAT,GRAY,GRAY

sub62520-90K38

main62520-90K38-05iBJ73,LJ73,RJ73..LX,STD198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K38

main62520-90K39-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198909-199001

W/O RR SEAT,GRAY,GRAY

sub62520-90K39

main62520-90K39-03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198909-199001

W/PARALLEL SEAT,*RW,GRAY,GRAY

sub62520-90K39

main62520-90K39-05iRJ70..EFI198909-199001

W/O RR SEAT,BEIGE,BEIGE

sub62520-90K39

main62520-90K39-05iRJ70..EFI198909-199001

W/PARALLEL SEAT,*RW,BEIGE,BEIGE

sub62520-90K39

main62640-90K00-03iBJ75..HT198411-199001

RR,GRAY,GRAY

sub62640-90K00

main62640-90K00-05iBJ75..HT198411-199001

RR,BEIGE,BEIGE

sub62640-90K00

64707ACOVER SUB-ASSY, QUARTER TRIM TOOL

main64707-90K00-03iBJ70,71,73,LJ7#,RJ7#198411-198708

GRAY,GRAY

sub64707-90K00

main64707-90K00-05iBJ70,71,73,LJ7#,RJ7#198411-198708

BEIGE,BEIGE

sub64707-90K00

main64707-90K01-03iBJ75..HT198411-198708

GRAY,GRAY

sub64707-90K01

main64707-90K01-05iBJ75..HT198411-198708

BEIGE,BEIGE

sub64707-90K01

main64707-90K02-03iBJ70,71,73,LJ7#,RJ7#198708-199001

GRAY,GRAY

sub64707-60030

main64707-90K02-05iBJ70,71,73,LJ7#,RJ7#198708-199001

BEIGE,BEIGE

sub64707-60030

main64707-90K03-03iBJ75..HT198708-199001

GRAY,GRAY

sub64707-90K01

main64707-90K03-05iBJ75..HT198708-199001

BEIGE,BEIGE

sub64707-90K01

64777BPROTECTOR, QUARTER, INNER

main64777-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

L=318

sub64777-60030

main64778-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

L=150

sub64778-90K01

main64778-90K01iBJ75..HT198411-199001

L=210

7455

7456

9015960325

main90159-60325

9017906158

main90179-06158

9165140616

main91651-40616

21 parts on this diagram · 5 diagrams in section
