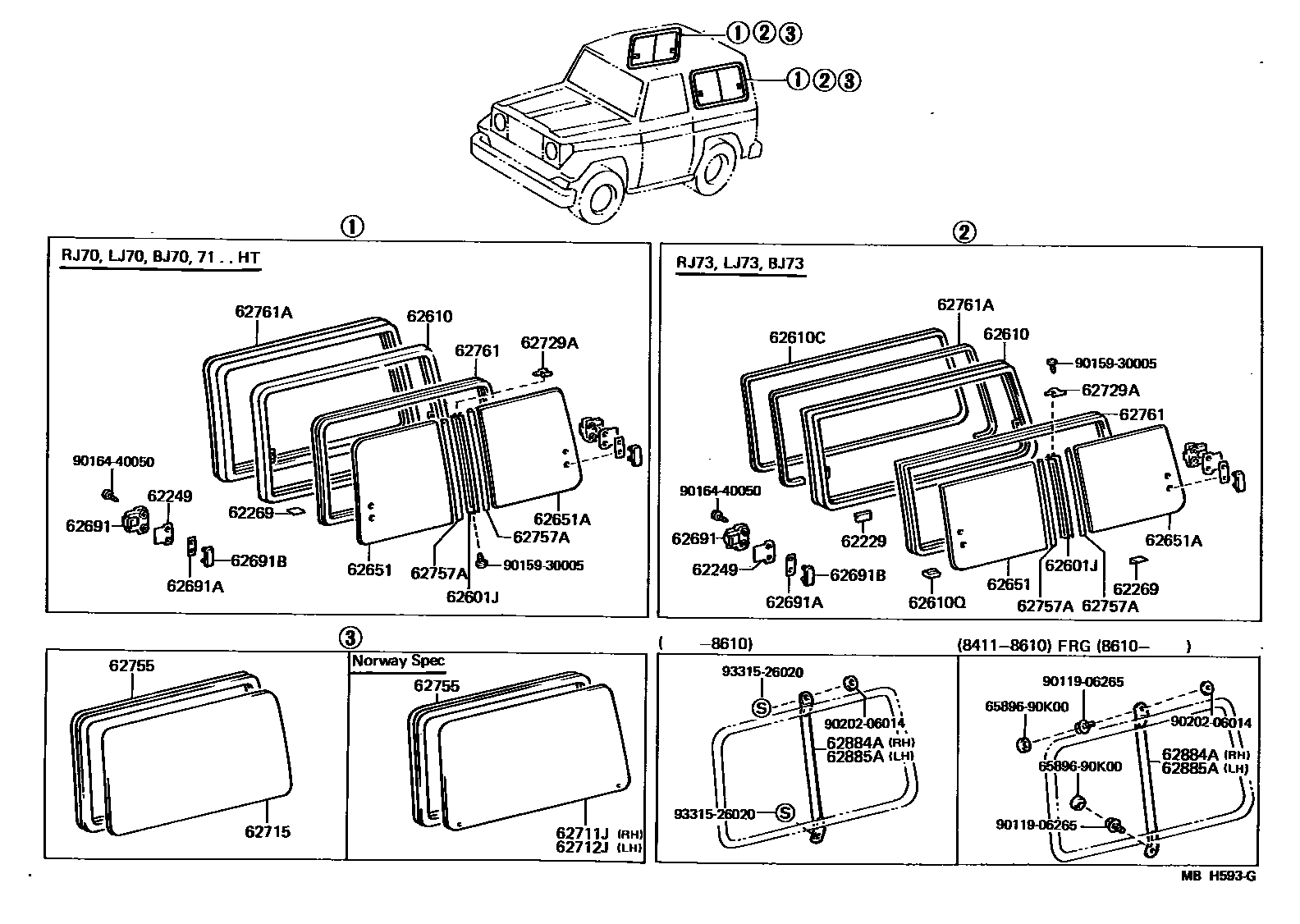

SIDE WINDOW

0001 1 0002 1

62229PACKING, SIDE WINDOW

main62229-95J00iBJ73,LJ73,RJ73198411-199001

62249PLATE, SIDE WINDOW, RH

main62249-95700iBJ70,71,73,LJ7#,RJ7#198411-199001

62269FILM, SIDE WINDOW FRAME, RH

main62269-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1

main67045-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

RH

main67045-90K01iBJ73,LJ73,RJ73198411-199001

RH

main67045-90K02iBJ75..HT198411-199001

RH

main67046-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

LH

main67046-90K01iBJ73,LJ73,RJ73198411-199001

LH

main67046-90K02iBJ75..HT198411-199001

LH

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62015-90K00iBJ75..HT198411-199001

RH

sub62015-60010

main62025-90K00iBJ75..HT198411-199001

LH

sub62025-60010

main62705-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

RH

sub62705-60031

main62705-90K01iBJ73,LJ73,RJ73198411-199001

RH

sub62705-60060

main62706-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

LH

sub62706-60021

main62706-90K01iBJ73,LJ73,RJ73198411-199001

LH

sub62706-60060

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62375-90K00-03iBJ75..HT198411-199001

GRAY,SHADOW GRAY

sub62375-90K00

main62375-90K00-06iBJ75..HT198411-199001

BROWN,SEPIA BROWN

sub62375-90K00

main62375-90K01iBJ73,LJ73,RJ73198411-199001

RH

main62376-90K00iBJ73,LJ73,RJ73198411-199001

LH

62610QSPACER, SIDE WINDOW FRAME

main62279-90K00iBJ73,LJ73,RJ73198411-199001

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62211-90K00iBJ75..HT198411-199001

*TEM,T=4.0,RH,*TEM,T=4.0

main62221-90K00iBJ75..HT198411-199001

*TEM,T=4.0,LH,*TEM,T=4.0

sub62221-60020

main62711-90K02iLJ70..LHD..VX198411-199001

*TEM,T=4.0,RH,*TEM,T=4.0

sub62711-60380

main62711-90K03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=4.0,RH,*TT,T=4.0

sub62711-60380

main62711-90K04iLJ70,RJ70..HT198411-199001

*TEM,T=4.0,*FRG,RH,*TEM,T=4.0

main62711-90K05iBJ73,LJ73,RJ73198411-199001

*TT,T=4.0,RH,*TT,T=4.0

sub62711-60400

main62711-90K11iLJ70,RJ70..HT198411-198510

*TT,T=4.0,*FRG,RH,*TT,T=4.0

main62711-90K11iLJ70..RHD..VX198801-199001

*TT,T=4.0,RH,*TT,T=4.0

main62711-90K18iLJ73198710-199001

*TT,T=4.0,*FRG,RH,*TT,T=4.0

main62712-90K02iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TEM,T=4.0,LH,*TEM,T=4.0

sub62712-60310

main62712-90K03iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=4.0,LH,*TT,T=4.0

sub62712-60310

main62712-90K04iLJ70,RJ70..LHD..HT198411-199001

*TEM,T=4.0,*FRG,LH,*TEM,T=4.0

main62712-90K05iBJ73,LJ73,RJ73198411-199001

*TT,T=4.0,LH,*TT,T=4.0

sub62712-60330

main62712-90K11iLJ70,RJ70..HT198411-198510

*TT,T=4.0,*FRG,LH,*TT,T=4.0

main62712-90K11iLJ70..RHD..VX198801-199001

*TT,T=4.0,LH,*TT,T=4.0

main62712-90K22iLJ73198710-199001

*TT,T=4.0,*FRG,LH,*TT,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62213-90K00iBJ75..HT198411-199001

*TEM,T=4.0,RH,*TEM,T=4.0

sub62213-60010

main62223-90K00iBJ75..HT198411-199001

*TEM,T=4.0,LH,*TEM,T=4.0

sub62223-60010

main62713-90K00iLJ70..LHD..VX198411-199001

*TEM,T=4.0,RH,*TEM,T=4.0

sub62713-60130

main62713-90K01iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=4.0,RH,*TT,T=4.0

sub62713-60130

main62713-90K02iLJ70,RJ70..LHD..HT198411-199001

*TEM,T=4.0,*FRG,RH,*TEM,T=4.0

main62713-90K03iBJ73,LJ73,RJ73198411-199001

*TT,T=4.0,RH,*TT,T=4.0

sub62713-60150

main62713-90K07iLJ70..RHD..VX198801-199001

*TT,T=4.0,RH,*TT,T=4.0

main62713-90K07iLJ70,RJ70..HT198411-198510

*TT,T=4.0,*FRG,RH,*TT,T=4.0

main62713-90K10iLJ73198710-199001

*TT,T=4.0,*FRG,RH,*TT,T=4.0

main62714-90K00iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TEM,T=4.0,LH,*TEM,T=4.0

sub62714-60120

main62714-90K01iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=4.0,LH,*TT,T=4.0

sub62714-60120

main62714-90K02iLJ70,RJ70..HT198411-199001

*TEM,T=4.0,*FRG,LH,*TEM,T=4.0

main62714-90K03iBJ73,LJ73,RJ73198411-199001

*TT,T=4.0,LH,*TT,T=4.0

sub62714-60140

main62714-90K07iLJ70..RHD..VX198801-199001

*TT,T=4.0,LH,*TT,T=4.0

main62714-90K07iLJ70,RJ70..HT198411-198510

*TT,T=4.0,*FRG,LH,*TT,T=4.0

main62714-90K14iLJ73198710-199001

*TT,T=4.0,*FRG,LH,*TT,T=4.0

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62910-95703iBJ7#,LJ7#,RJ7#..HT198411-199001

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iBJ7#,LJ7#,RJ7#..HT198411-199001

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95704iBJ7#,LJ7#,RJ7#..HT198512-199001

main62793-95J00iBJ7#,LJ7#,RJ7#..HT198411-198512

62711JPANEL, QUARTER WINDOW, RH

main62711-90K15iLJ70,RJ70..LHD..HT..(LX,STD)198608-199001

NORWAY SPEC

62712JPANEL, QUARTER WINDOW, LH

main62712-90K18iLJ70,RJ70..LHD..HT..(LX,STD)198608-199001

NORWAY SPEC

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62211-90K02iBJ75..HT198411-199001

*TEM,T=3.5,*TEM,T=3.5

main62711-90K00iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TEM,T=3.5,RH,*TEM,T=3.5

sub62711-60370

main62711-90K01iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=3.5,RH,*TT,T=3.5

sub62711-60370

main62712-90K00iLJ70..LHD..VX198411-199001

*TEM,T=3.5,LH,*TEM,T=3.5

sub62712-60300

main62712-90K01iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

*TT,T=3.5,LH,*TT,T=3.5

sub62712-60300

62729APAD, WINDOW CENTER SASH

main62729-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main62729-90K01iBJ73,LJ73,RJ73198411-199001

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62252-90K00iBJ75..HT198411-199001

main62741-90K00iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

RH

main62742-90K00iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

LH

62757APROTECTOR, SIDE WINDOW GLASS, NO.1

main62758-90K00iLJ73198411-199001

*FRG

main62758-90K00iLJ70..RHD..VX198801-199001

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62471-90K00iBJ75..HT198411-199001

RH

sub62471-60320

main62481-90K00iBJ75..HT198411-199001

LH

sub62481-60010

main62755-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

RH

sub62755-60050

main62755-90K01iBJ73,LJ73,RJ73198411-199001

RH

sub62755-60040

main62756-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

LH

sub62756-60050

main62756-90K01iBJ73,LJ73,RJ73198411-199001

LH

sub62756-60040

62761AWEATHERSTRIP, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62741-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

RH

sub62741-60100

main62742-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

LH

sub62742-60090

main62793-90K00iBJ73,LJ73,RJ73198411-199001

RH

main62794-90K00iBJ73,LJ73,RJ73198411-199001

LH

62884AGUARD, QUARTER WINDOW, RH

main62884-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

62885AGUARD, QUARTER WINDOW, LH

main62884-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

6589690K00CAP, SET BOLT

main65896-90K00

9011906265

main90119-06265

9015930005

main90159-30005

9016440050

main90164-40050

9020206014

main90202-06014

9331526020

main93315-26020

28 parts on this diagram · 2 diagrams in section
