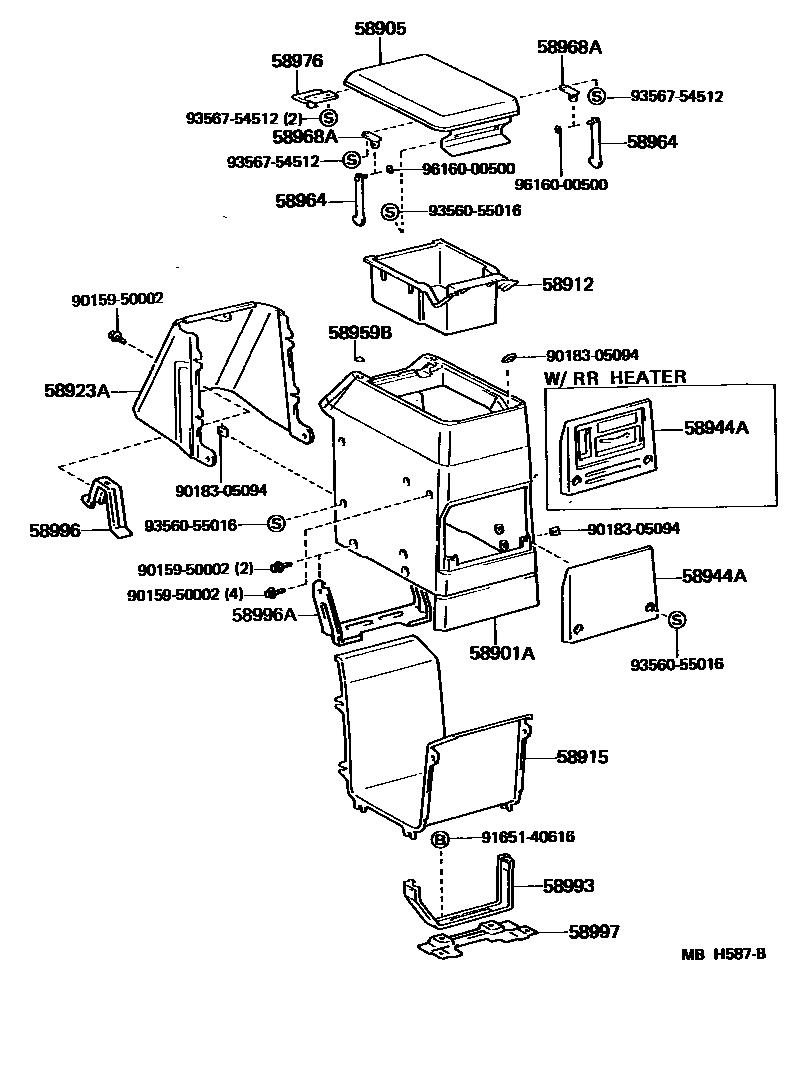

CONSOLE BOX & BRACKET

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-90K00-03iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

GRAY,SHADOW GRAY

sub58911-90K00

main58911-90K00-06iLJ70..LHD..VX198411-199001

BROWN,SEPIA BROWN

sub58911-90K00

main58911-90K01-03iBJ70,71,73,LJ7#,RJ7#198411-199001

W/RR HEATER,GRAY,SHADOW GRAY

sub58911-90K01

main58911-90K01-06iBJ70,71,73,LJ7#,RJ7#198411-199001

W/RR HEATER,BROWN,SEPIA BROWN

sub58911-90K01

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-90K00-03iBJ70,71,73,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub58951-90K00

main58951-90K00-06iBJ70,71,73,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub58951-90K00

58912BOX, REAR CONSOLE, NO.2

main58912-90K00-03iBJ70,71,73,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub58912-90K00

main58912-90K00-06iBJ70,71,73,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub58912-90K00

58915PANEL, BOX BOTTOM

main58915-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

58923APANEL, CONSOLE REAR END

main58923-90K00-03iBJ70,LJ70..RHD198608-199001

GRAY,SHADOW GRAY

sub58923-90K00

main58923-90K00-06iBJ70,LJ70..RHD198608-199001

BROWN,SEPIA BROWN

sub58923-90K00

main58923-90K01-03iBJ70,71,73,LJ7#,RJ7#..LHD198411-199001

GRAY,SHADOW GRAY

sub58923-90K01

main58923-90K01-06iBJ70,71,73,LJ7#,RJ7#..LHD198411-199001

BROWN,SEPIA BROWN

sub58923-90K01

58944ACOVER, CONSOLE, REAR

main58944-90K00-03iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

GRAY,SHADOW GRAY

sub58944-90K00

main58944-90K00-06iLJ70..LHD..VX198411-199001

BROWN,SEPIA BROWN

sub58944-90K00

main58944-90K01-03iBJ70,71,73,LJ7#,RJ7#198411-199001

W/RR HEATER,GRAY,SHADOW GRAY

sub58944-90K01

main58944-90K01-06iBJ70,71,73,LJ7#,RJ7#198411-199001

W/RR HEATER,BROWN,SEPIA BROWN

sub58944-90K01

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iBJ70,71,73,LJ7#,RJ7#198411-199001

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iBJ70,71,73,LJ7#,RJ7#198411-199001

LH

main58964-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

RH

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-89101iBJ70,71,73,LJ7#,RJ7#198411-199001

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iBJ70,71,73,LJ7#,RJ7#198411-199001

sub58908-12080

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-90K00iBJ70,71,73,LJ7#,RJ7#..LX,STD198411-199001

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

9015950002

main90159-50002

9018305094

main90183-05094

9165140616

main91651-40616

9356055016

main93560-55016

9356754512

main93567-54512

9616000500

main96160-00500

20 parts on this diagram · 1 diagram in section
