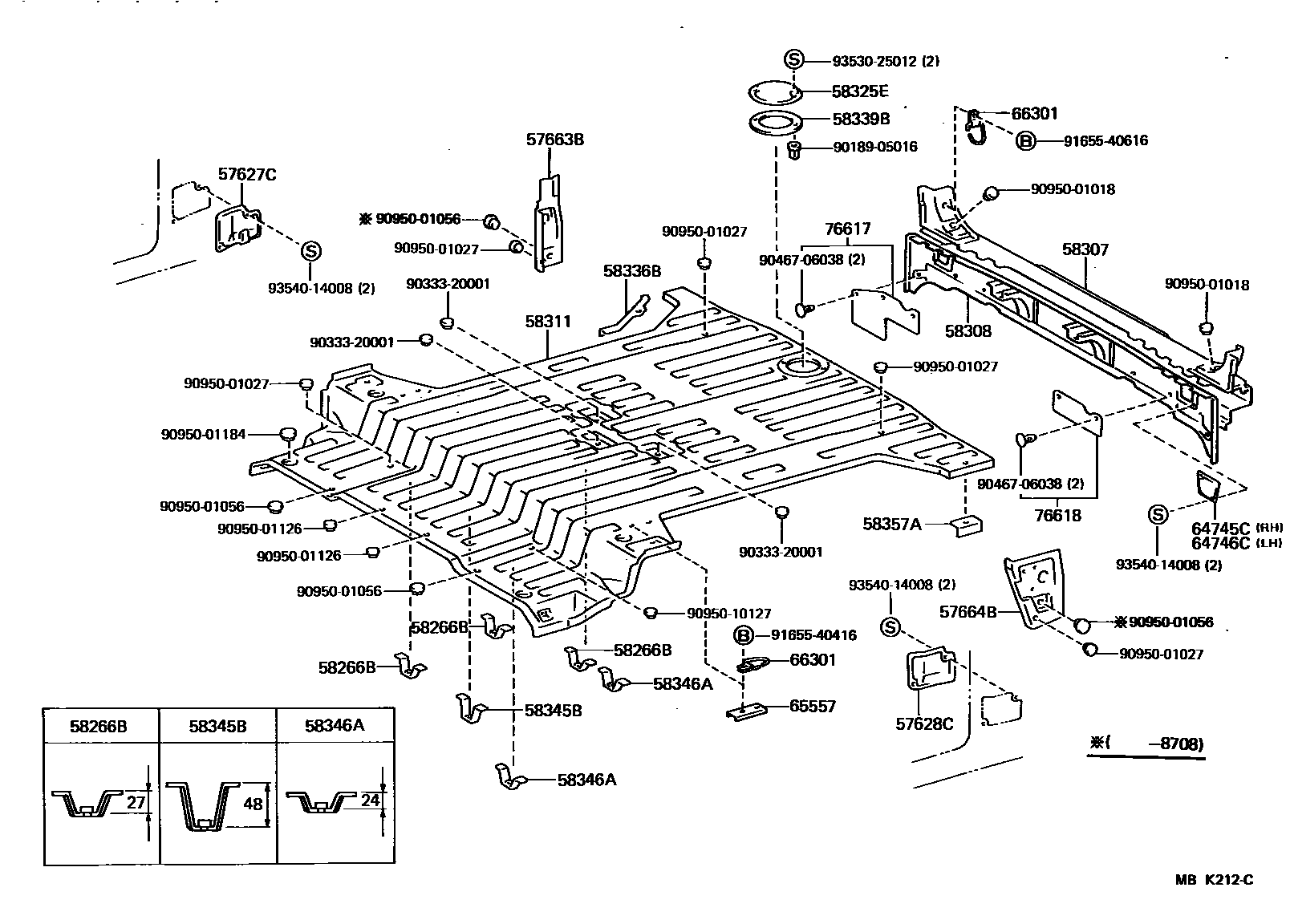

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-90K00iBJ70,71,LJ70,RJ70¥670198411-199001

sub57627-60020¥450

main57627-90K01iBJ73,LJ73,RJ73¥670198411-199001

sub57627-60030¥1,070

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-90K00iBJ70,71,LJ70,RJ70¥670198411-199001

main57628-90K01iBJ73,LJ73,RJ73¥670198411-199001

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-90K00iBJ70,71,73,LJ7#,RJ7#¥2,270198411-199001

sub57663-60050¥1,420

main57663-90K01iBJ75..HT¥6,800198411-199001

sub57663-60040

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-90K00iBJ70,71,73,LJ7#,RJ7#¥2,250198411-198708

main57664-90K02iBJ70,71,73,LJ7#,RJ7#¥1,170198708-199001

main58306-90K00iBJ75..HT¥8,900198411-198708

main58306-90K01iBJ75..HT¥2,870198708-199001

58266BBRACKET, FUEL TUBE CLAMP

main58266-90K00iBJ70,71,73,LJ7#,RJ7#¥310198411-199001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90K01iBJ70,71,73,LJ7#,RJ7#198411-198608

main58307-90K02iBJ75..HT198411-198601

main58307-90K03iBJ75..HT¥41,100198411-198608

W/RR MAT

sub58307-90K19¥41,300

main58307-90K11iBJ70,71,73,LJ7#,RJ7#¥41,100198510-198608

W/ROPE HOOK

sub58307-90K17¥41,300

main58307-90K17iBJ70,71,73,LJ7#,RJ7#¥41,300198608-199001

sub58307-60090¥22,200

main58307-90K19iBJ75..HT¥41,300198608-199001

sub58307-60110¥22,200

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90K00iBJ70,71,73,LJ7#,RJ7#¥13,100198411-199001

main58308-90K01iBJ75..HT¥13,100198411-199001

58311PAN, REAR FLOOR

main58311-90K00iLJ70..LHD..VX¥55,400198411-199001

W/O RR SEAT

main58311-90K00iBJ70..LHD¥55,400198608-198808

*SWZ,W/PARALLEL SEAT

main58311-90K02iBJ70,71,LJ70,RJ70¥55,400198411-199001

sub58311-60160¥51,800

main58311-90K05iBJ75..HT¥94,700198411-198510

W/*FFRS

sub58311-90K25

main58311-90K07iBJ73..LX,STD¥74,000198608-198808

*SWZ,W/PARALLEL SEAT

main58311-90K07iBJ73,LJ73,RJ73¥74,000198411-199001

W/O RR SEAT

main58311-90K09iBJ73,LJ73,RJ73¥74,000198411-199001

sub58311-60290¥73,700

main58311-90K17iBJ75..HT¥94,700198411-198510

sub58311-90K31

main58311-90K25iBJ75..HT198510-198608

W/*FFRS

main58311-90K31iBJ75..HT198510-198608

main58311-90K36iBJ75..HT¥95,100198608-198708

W/*FFRS

main58311-90K38iBJ75..HT¥95,100198608-198708

main58311-90K47iBJ75..HT¥45,700198708-199001

W/*FFRS

main58311-90K49iBJ75..HT¥45,700198708-199001

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90K00iBJ75..PIC¥750198411-199001

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥480198411-199001

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-90K00iBJ75..PIC¥230198411-199001

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-90K00iBJ73,LJ73,RJ73¥380198411-199001

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-90K00iBJ70,71,73,LJ7#,RJ7#¥380198411-199001

58357AREINFORCEMENT, JACK CARRIER

main58357-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥610198411-198708

main58357-90K01iBJ7#,LJ7#,RJ7#..HT,SOT¥230198708-199001

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥740198411-199001

64746CCOVER, LOWER BACK SERVICE HOLE, LH

main64746-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥740198411-199001

65557RETAINER, ROPE HOOK

main65557-90K00iBJ70,71,73,LJ7#,RJ7#¥310198510-199001

66301HOOK SUB-ASSY, ROPE

main66301-90K00iBJ70,71,73,LJ7#,RJ7#¥630198510-198608

sub66301-90K02¥380

main66301-90K02iBJ70,71,73,LJ7#,RJ7#¥380198608-199001

76617MUDGUARD, LOWER BACK PANEL, FRONT RH

main76617-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥1,330198411-198606

sub76617-90K01¥1,340

main76617-90K01iBJ7#,LJ7#,RJ7#..HT,SOT¥1,340198606-199001

76618MUDGUARD, LOWER BACK PANEL, FRONT LH

main76618-90K00iBJ7#,LJ7#,RJ7#..HT,SOT¥690198411-198606

sub76618-90K01¥680

main76618-90K01iBJ7#,LJ7#,RJ7#..HT,SOT¥680198606-199001

9018905016

main90189-05016¥210

9033320001

main90333-20001¥70

9046706038

main90467-06038¥160

9095001018

main90950-01018¥200

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001126

main90950-01126¥360

9095001184

main90950-01184¥520

9095010127

main90950-10127

9165540416

main91655-40416

9165540616

main91655-40616¥120

9353025012

main93530-25012¥170

9354014008

main93540-14008¥90

33 parts on this diagram · 3 diagrams in section
