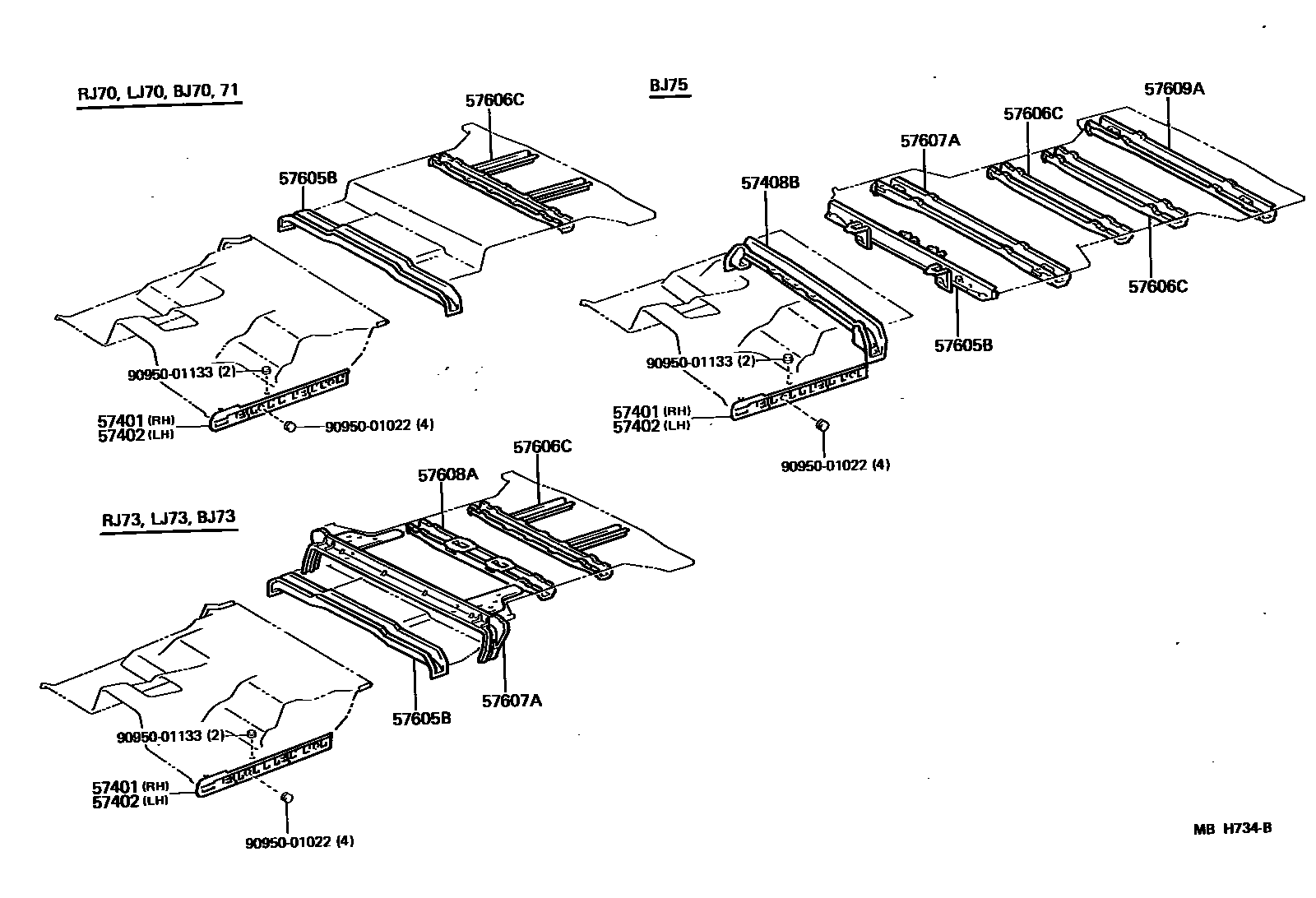

FLOOR MEMBER

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-90K00iBJ7#,LJ7#,RJ7#¥10,700198411-199001

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-90K00iBJ7#,LJ70,RJ70¥11,000198411-198510

main57402-90K01iBJ7#,LJ7#,RJ7#¥17,300198510-199001

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-90K00iBJ75..HT¥23,300198411-198510

sub57408-90K03¥23,600

main57408-90K02iBJ75..PIC¥23,300198411-198510

sub57408-90K03¥23,600

sub58114-90K01

main57408-90K03iBJ75¥23,600198510-199001

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-90K00iBJ70,71,73,LJ7#,RJ7#¥15,400198411-198608

sub57605-90K10¥18,400

main57605-90K04iBJ75..HT¥10,700198411-198510

sub57605-90K09¥10,700

main57605-90K09iBJ75..HT¥10,700198510-199001

sub57605-60290

main57605-90K10iBJ70,71,73,LJ7#,RJ70¥18,400198608-198708

sub57605-60210¥13,100

main57605-90K19iBJ70,71,LJ70,RJ70198708-199001

sub57605-90K20¥18,400

main57605-90K20iBJ73,LJ73,RJ73¥18,400198708-199001

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-90K04iBJ70,71,LJ70,RJ70¥9,800198411-199001

main57606-90K05iBJ70,71,LJ70,RJ70..LX,STD¥9,800198411-199001

W/O RR SEAT

main57606-90K05iBJ70..LHD¥9,800198608-199001

*SWZ,W/PARALLEL SEAT

main57606-90K06iBJ75..HT¥15,400198411-198510

sub57606-90K10¥9,800

main57606-90K10iBJ75..HT¥9,800198510-198608

main57606-90K10iBJ75..HT¥9,800198608-199001

FR

main57606-90K12iBJ75..HT¥9,800198608-199001

RR

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-90K00iBJ73,LJ73,RJ73¥17,800198411-199001

main57607-90K01iBJ75..HT¥15,400198411-198510

sub57607-90K05

main57607-90K03iBJ73,LJ73,RJ73¥15,700198411-199001

W/O RR SEAT

main57607-90K03iBJ73..LX,STD¥15,700198608-198808

*SWZ,W/PARALLEL SEAT

main57607-90K05iBJ75..HT198510-198608

main57607-90K07iBJ75..HT¥15,400198608-198708

sub57607-90K08¥9,800

main57607-90K08iBJ75..HT¥9,800198708-199001

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-90K05iBJ73198411-198510

main57608-90K09iBJ73,LJ73,RJ73¥13,200198510-199001

main57655-90K01iBJ73198411-198510

W/O RR SEAT

main57655-90K03iBJ73,LJ73,RJ73¥8,600198510-199001

W/O RR SEAT

main57655-90K03iBJ73..LX,STD¥8,600198608-198808

*SWZ,W/PARALLEL SEAT

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-90K01iBJ75..HT¥15,400198411-198510

sub57609-90K03¥9,800

main57609-90K03iBJ75..HT¥9,800198510-198708

main57609-90K04iBJ75..HT¥9,800198708-199001

9095001022

main90950-01022¥200

9095001133

main90950-01133¥590

10 parts on this diagram · 1 diagram in section
