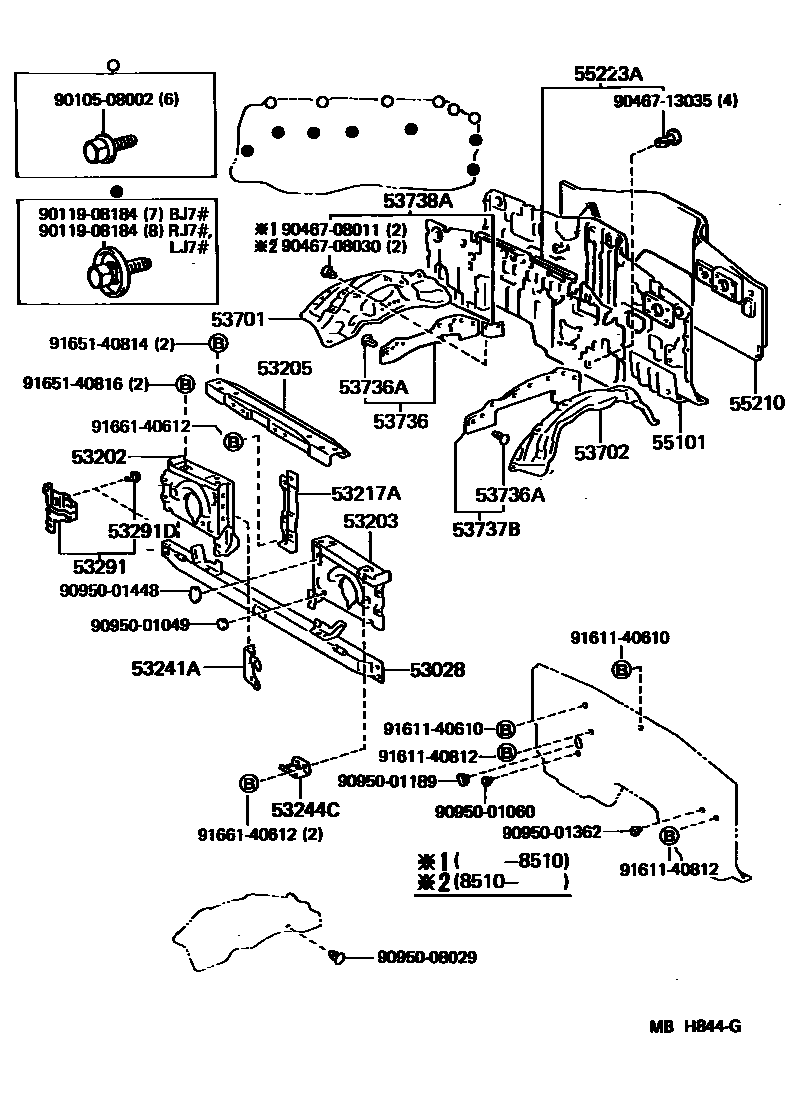

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-90K01iLJ7#,RJ7#198411-199001

main53028-90K03iBJ7#198411-199001

sub53028-60040

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-90K01iBJ7#198411-198708

main53202-90K03iLJ7#,RJ7#198411-199001

main53202-90K05iBJ7#198708-199001

sub53202-60080

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-90K01iBJ7#198411-198708

main53203-90K03iLJ70,RJ70198411-198510

main53203-90K05iLJ7#,RJ7#198510-198708

main53203-90K07iBJ7#198708-199001

sub53203-60080

main53203-90K09iLJ7#,RJ7#198708-199001

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-90K02iBJ7#198411-199001

sub53205-60020

main53216-90K03iLJ7#,RJ7#198411-199001

sub53216-60040

53217ABRACE, HOOD LOCK SUPPORT

main53217-90K02iBJ7#198411-199001

sub53217-60060

main53217-90K03iLJ7#,RJ7#198411-199001

53241AGUIDE, SIDE WIND, RH

main53241-90K00iBJ7#198411-198708

main53241-90K01iLJ7#198411-198708

main53241-90K02iBJ7#198708-199001

main53241-90K03iLJ7#198708-199001

53244CPLATE, SEAL SET

main53244-90K00iLJ7#198510-199001

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-90K00iBJ7#..LHD198411-199001

main53291-90K01iLJ7#,RJ7#..LHD198411-198708

main53291-90K02iLJ7#,RJ7#..LHD198708-199001

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-09030iBJ7#198411-199001

main90467-10016iLJ7#,RJ7#198708-199001

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-90K02iLJ70198411-198510

BATTERY 12V

sub53701-90K38

main53701-90K06iLJ70198411-198510

BATTERY 24V

sub53701-90K41

main53701-90K08iBJ7#198411-198510

BATTERY 24V

sub53701-90K50

main53701-90K23iRJ70198411-198510

sub53701-90K46

main53701-90K32iBJ73198411-198510

BATTERY 12V

sub53701-90K66

main53701-90K38iLJ7#198510-198608

BATTERY 12V

sub53701-60230

main53701-90K38iLJ70..RHD198608-199001

sub53701-60230

main53701-90K40iLJ7#..LHD198608-199001

BATTERY 12V

sub53701-60240

main53701-90K41iLJ7#..LHD198510-199001

BATTERY 24V

sub53701-60250

main53701-90K46iRJ7#198510-199001

sub53701-60140

main53701-90K50iBJ7#..LHD198510-199001

BATTERY 24V

sub53701-60330

main53701-90K57iBJ70..RHD198608-199001

sub53701-60280

main53701-90K66iBJ73..LX,STD198510-199001

BATTERY 12V

sub53701-60320

main53701-90K70iRJ7#..EFI198812-199001

sub53701-60200

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-90K02iRJ70198411-198510

sub53702-90K78

main53702-90K05iLJ70198411-198510

sub53702-90K81

main53702-90K12iBJ7#198411-198510

sub53702-90K96

main53702-90K78iRJ7#198510-199001

main53702-90K81iLJ7#198510-199001

main53702-90K96iBJ7#..LHD198510-199001

main53702-90L45iBJ70..RHD198608-199001

main53702-90L48iBJ70..RHD198608-199001

W/ELECTRIC WINCH

main53702-90L53iRJ7#..EFI198812-199001

W/ELECTRIC WINCH

53736SEAL, FRONT FENDER APRON, RH

main53737-90K00iLJ7#,RJ7#198411-198606

sub53737-90K02

main53737-90K01iBJ7#198411-198606

sub53737-90K03

main53737-90K02iLJ7#,RJ7#198606-199001

main53737-90K03iBJ7#198606-199001

sub53737-60040

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011iBJ7#,LJ70,RJ70198411-198510

main90467-08030iBJ7#,LJ7#,RJ7#198510-199001

53737BSEAL, FRONT FENDER APRON, LH

main53737-90K00iLJ7#,RJ7#198411-198606

sub53737-90K02

main53737-90K01iBJ7#198411-198606

sub53737-90K03

main53737-90K02iLJ7#,RJ7#198606-199001

main53737-90K03iBJ7#198606-199001

sub53737-60040

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-90K00iRJ70198411-198510

sub53738-90K02

main53738-90K02iRJ7#198510-198606

sub53738-90K04

main53738-90K04iRJ7#198606-199001

sub53738-60030

55101PANEL SUB-ASSY, DASH

main55101-90441iBJ70..RHD198608-199001

W/CLUTCH BOOSTER

main55101-90446iBJ71198510-198608

main55101-90447iBJ71198510-198608

W/CLUTCH BOOSTER

main55101-90448iBJ71198510-199001

W/POWER STRG

main55101-90449iBJ71198510-199001

W/CLUTCH BOOSTER,POWER STRG

main55101-90612iBJ73..VM198510-199001

main55101-90621iBJ70,75..HT198608-198808

*SWZ

main55101-90621iBJ71,73..LX,STD198608-199001

main55101-90622iBJ70,75..HT198608-198808

*SWZ,W/CLUTCH BOOSTER

main55101-90622iBJ71,73..LX,STD198608-199001

W/CLUTCH BOOSTER

main55101-90K34iBJ75..PIC198411-198510

main55101-90K35iBJ75..PIC198411-198510

W/CLUTCH BOOSTER

main55101-90K82iBJ7#..HT198411-198510

main55101-90K83iBJ7#..HT198411-198510

W/CLUTCH BOOSTER

main55101-90L00iLJ70198411-198510

main55101-90L25iBJ70..RHD198608-199001

main55101-90L27iLJ70..RHD198608-199001

main55101-90L59iBJ73..LX,STD198510-199001

main55101-90L60iBJ73..LX,STD198510-199001

W/CLUTCH BOOSTER

main55101-90L74iLJ7#..LHD198510-199001

main55101-90L79iRJ7#198510-199001

main55101-90L96iBJ75..PIC198510-199001

main55101-90L97iBJ75..PIC198510-199001

W/CLUTCH BOOSTER

main55101-90S01iRJ7#..EFI198812-199001

55210INSULATOR ASSY, DASH PANEL

main55210-90K01iBJ7#,LJ70,RJ70198411-198510

main55210-90K02iBJ70,LJ70..RHD198608-199001

main55210-90K03iBJ7#,LJ7#,RJ7#..LHD198510-198810

sub55210-90K04

main55210-90K04iBJ7#,LJ7#,RJ7#..LHD198810-199001

55223AINSULATOR, DASH PANEL, OUTER

main55223-90K01iBJ71198510-199001

sub55223-60040

main55223-90K02iBJ70,73,75..LX,STD198608-198808

*SWZ

main55223-90K03iRJ7#..EFI198812-199001

sub55223-60160

main55223-90K04iBJ73..VM198904-199001

sub55223-60170

9010508002

main90105-08002

9011908184

main90119-08184

9046708011

main90467-08011

9046708030

main90467-08030

9046713035

main90467-13035

9095001049

main90950-01049

9095001060

main90950-01060

9095001189

main90950-01189

9095001362

main90950-01362

9095001448

main90950-01448

9095008029

main90950-08029

9161140610

main91611-40610

9161140812

main91611-40812

9165140814

main91651-40814

9165140816

main91651-40816

9166140612

main91661-40612

34 parts on this diagram · 2 diagrams in section
