HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-90K00iLJ70..SOT198411-198507

sub53301-90K11

main53301-90K01iLJ70,RJ70..HT198411-198507

sub53301-90K12

main53301-90K03iBJ73198411-198507

W/WINDSHIELD REST CRADLE

sub53301-90K14

main53301-90K05iBJ7#198411-198507

sub53301-90K13

main53301-90K11iLJ73,RJ73198507-198608

W/WINDSHIELD REST CRADLE

sub53301-90K25

main53301-90K12iLJ7#,RJ7#198507-198608

sub53301-90K26

main53301-90K13iBJ7#..STD198507-198608

sub53301-90K27

main53301-90K14iBJ73198507-198608

W/WINDSHIELD REST CRADLE

sub53301-90K28

main53301-90K25iLJ73,RJ73198608-199001

W/WINDSHIELD REST CRADLE

main53301-90K26iLJ7#,RJ7#198608-199001

main53301-90K27iBJ7#..LX,STD198608-199001

sub53301-60150

main53301-90K28iBJ73198608-199001

W/WINDSHIELD REST CRADLE

sub53301-60170

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-90K03iBJ7#..LHD198411-199001

main53303-90K04iBJ70..RHD198608-199001

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-90K03iBJ7#198411-198510

sub53304-90K12

main53304-90K04iBJ7#198411-198608

W/RADIO

sub53304-90K13

main53304-90K12iBJ70..RHD198608-199001

sub53304-60100

main53304-90K13iBJ70,71,73..LHD198608-199001

sub53304-60090

53341BINSULATOR, HOOD

main53341-90K00iLJ70,RJ70198411-198510

sub53341-90K04

main53341-90K01iBJ7#198411-198510

sub53341-90K05

main53341-90K04iLJ7#,RJ7#198510-199001

main53341-90K05iBJ70,73,75198510-199001

sub53341-90K06

main53341-90K06iBJ70,73,75..HT198608-198808

*SWZ

main53341-90K06iBJ71198608-199001

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iBJ7#,LJ7#,RJ7#198411-198702

main90467-09014iBJ7#,LJ7#,RJ7#198702-199001

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-90K00iLJ7#,RJ7#198411-199001

main53381-90K01iBJ7#198411-199001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iBJ7#,LJ7#,RJ7#198411-199001

53382BUMPER, HOOD, FRONT

main53382-90K00iBJ7#,LJ7#,RJ7#198511-198805

sub53382-90K01

main53382-90K01iBJ7#,LJ7#,RJ7#198805-199001

main53382-95189iBJ7#,LJ7#,RJ7#198411-198511

sub53382-90K00

53386BUMPER, HOOD, REAR

main53382-30060iBJ7#,LJ7#,RJ7#198411-199001

sub53384-60030

53390CRADLE ASSY, WINDSHIELD REST

main53390-90K00iBJ73;LJ70..SOT198411-199001

53801FENDER SUB-ASSY, FRONT RH

main53801-90K02iLJ7#,RJ7#..LHD198411-198710

main53801-90K04iBJ7#198411-199001

main53801-90K11iLJ7#,RJ7#..LHD198510-198710

W/OVER FENDER

main53801-90K13iBJ73198411-199001

W/OVER FENDER

main53801-90K17iLJ70..RHD198608-198710

main53801-90K18iLJ70..RHD198608-198710

W/OVER FENDER

main53801-90K20iLJ7#,RJ7#..LHD198710-199001

main53801-90K22iLJ7#,RJ7#..LHD198710-199001

W/OVER FENDER

main53801-90K23iLJ70..RHD..LX198710-199001

main53801-90K24iLJ70..RHD198710-199001

W/OVER FENDER

53802FENDER SUB-ASSY, FRONT LH

main53802-90K02iLJ70,RJ70198411-198510

W/RADIO

sub53802-90K18

main53802-90K04iBJ7#198411-199001

main53802-90K05iLJ70,RJ70198411-198510

sub53802-90K27

main53802-90K15iBJ73198411-199001

W/OVER FENDER

main53802-90K18iLJ7#,RJ7#..LHD198510-198710

W/RADIO

main53802-90K27iLJ7#,RJ7#198510-198710

main53802-90K28iLJ70..RHD198510-198710

W/OVER FENDER

main53802-90K29iLJ7#,RJ7#..LHD198510-198710

W/OVER FENDER,RADIO

main53802-90K32iLJ70..RHD..LX198710-199001

W/RADIO

main53802-90K33iLJ7#,RJ70..LHD..HT198710-199001

*FRG

main53802-90K35iLJ70..RHD198710-199001

W/OVER FENDER

main53802-90K36iLJ7#,RJ7#..LHD198710-199001

W/OVER FENDER,RADIO

53833PANEL, FRONT FENDER SIDE, LOWER

main53833-90K01iBJ7#198411-199001

RH

main53834-90K01iBJ7#198411-199001

LH

53878CSPACER, FRONT FENDER

main53878-90K00iBJ7#198411-199001

RH

main53879-90K00iBJ7#198411-199001

LH

53911PANEL, FRONT VALANCE

main53911-90K00iLJ7#,RJ7#..LX,STD198411-199001

main53911-90K01iLJ7#,RJ7#..HT198411-199001

W/HEADLAMP CLEANER

main53911-90K02iBJ7#198411-199001

sub53911-60010

main53911-90K03iBJ7#198411-199001

W/HEADLAMP CLEANER

sub53911-60020

9011908563

main90119-08563

9017008028

main90170-08028

9017906097

main90179-06097

9046709036

main90467-09036

9046709046

main90467-09046

9095003041

main90950-03041

9165140816

main91651-40816

9165140820

main91651-40820

9166140612

main91661-40612

9412040800

main94120-40800

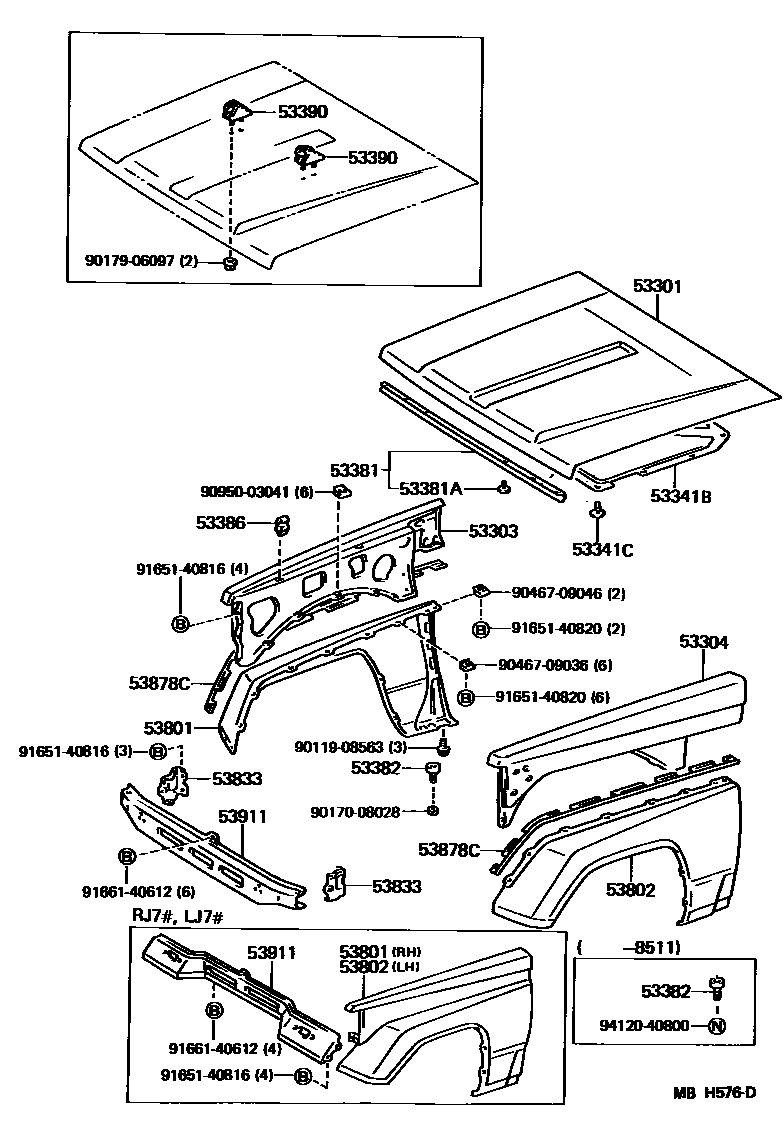

25 parts on this diagram · 2 diagrams in section
