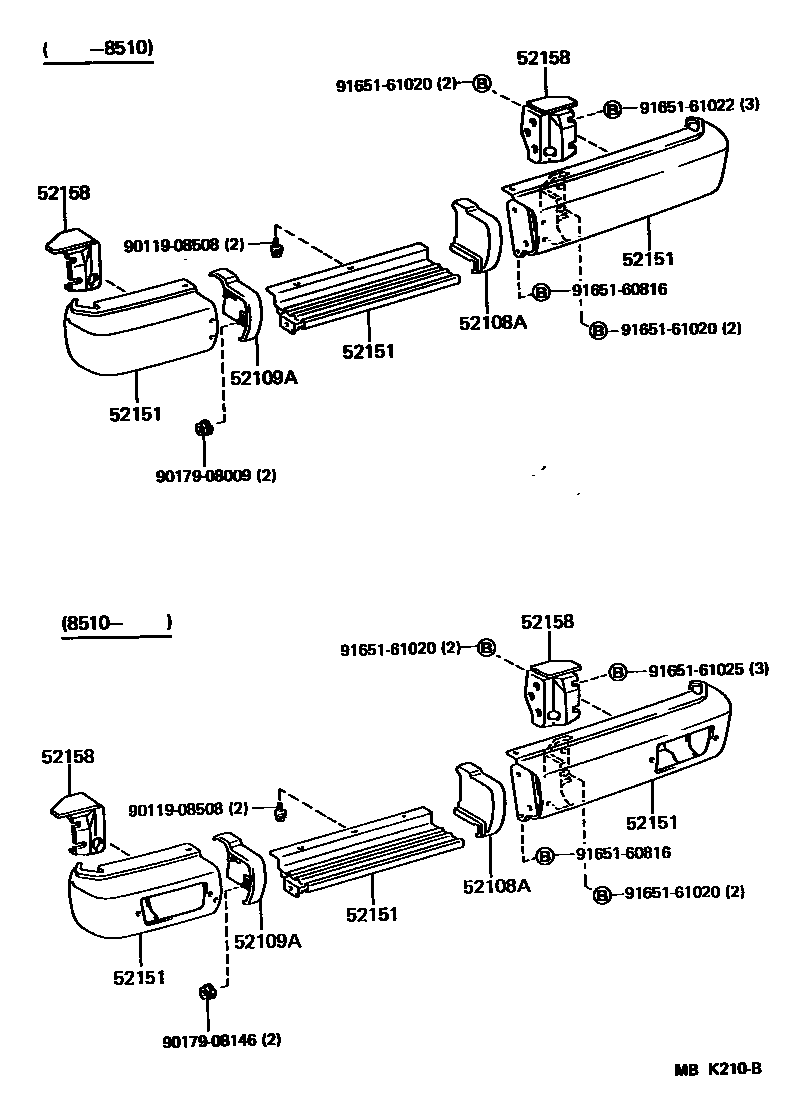

REAR BUMPER & BUMPER STAY

52108ABUMPER SUB-ASSY, REAR SIDE, RH

main52108-60010iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

52109ABUMPER SUB-ASSY, REAR SIDE, LH

main52109-60010iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

52151BUMPER ASSY, REAR

main52106-60030iBJ70,LJ70..RHD..(LX,STD)198608-199001

RH

sub52106-60901

main52106-60040iBJ70,LJ70..RHD..(LX,STD)198608-199001

RH,CHORE PLATING

main52106-60070iBJ7#,LJ70,RJ70..HT,SOT198411-198510

RH

sub52106-60903

main52106-60080iBJ7#,LJ70,RJ70..HT,SOT198411-198510

RH,CHROME PLATING

main52106-90K00iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)198510-199001

RH

main52106-90K01iLJ70..RHD..VX198801-199001

RH

main52106-90K01iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)198510-199001

RH,CHROME PLATING

main52107-60040iBJ7#,LJ70,RJ70..HT,SOT198411-198510

LH

sub52107-60901

main52107-60050iBJ7#,LJ70,RJ70..HT,SOT198411-198510

LH,CHROME PLATING

main52107-90K00iBJ70,LJ70..RHD..(LX,STD)198608-199001

LH

sub52107-60903

main52107-90K01iBJ70,LJ70..RHD..(LX,STD)198608-199001

LH,CHORE PLATING

main52107-90K02iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)198510-199001

LH

main52107-90K03iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)198510-199001

LH,CHROME PLATING

main52107-90K03iLJ70..RHD..VX198801-199001

LH

main52151-60070iLJ70..LHD..VX198411-199001

CTR,W/PINTLE HOOK

main52151-60090iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

CTR

52158BRACKET, REAR BUMPER

main52173-60010iBJ7#,LJ70,RJ70..HT,SOT198411-199001

RH

main52173-90K00iBJ7#,LJ7#,RJ7#..LHD..(HT,SOT)198510-199001

RH

main52174-60010iBJ7#,LJ70,RJ70..HT,SOT198411-198510

LH

main52174-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198510-199001

LH

9011908508

main90119-08508

9017908009

main90179-08009

9017908146

main90179-08146

9165160816

main91651-60816

9165161020

main91651-61020

9165161022

main91651-61022

9165161025

main91651-61025

11 parts on this diagram · 1 diagram in section
