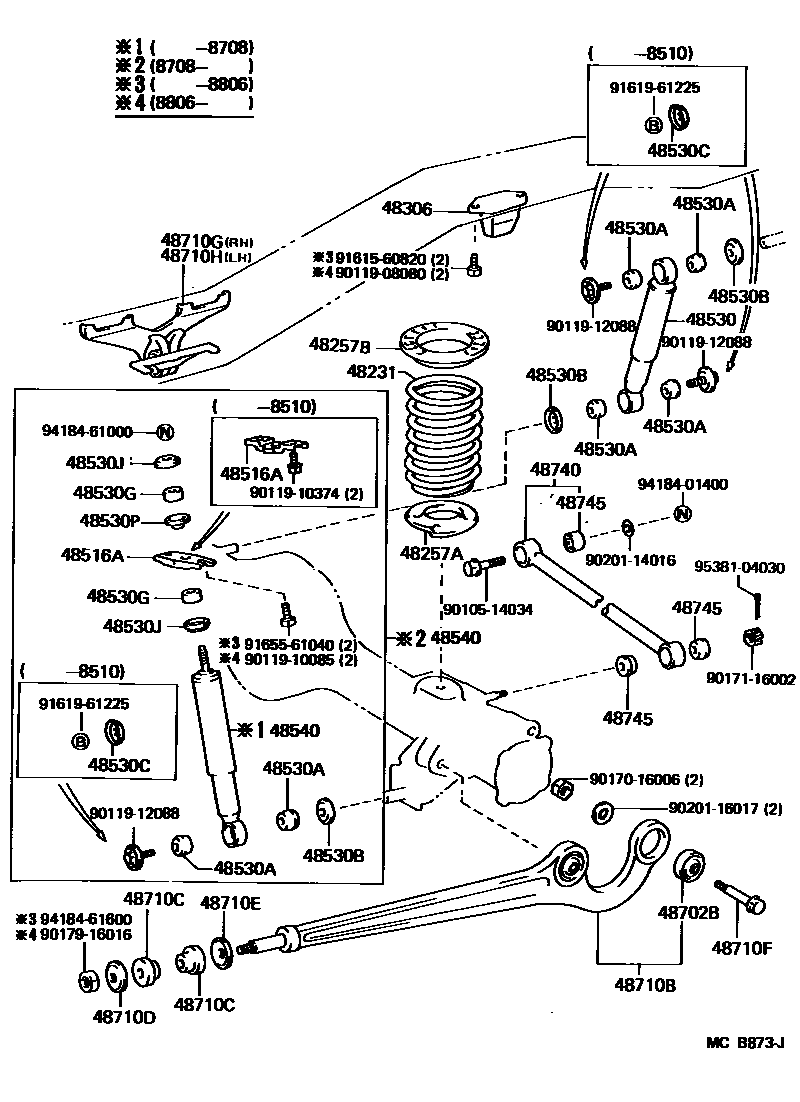

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
DENMARK SPEC
RH
RH
LH
48257AINSULATOR, REAR COIL SPRING, LOWER
48257BINSULATOR, REAR COIL SPRING, UPPER
48306BUMPER SUB-ASSY, REAR SPRING
48516ABRACKET, REAR SHOCK ABSORBER, UPPER
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-69165
sub48531-69138
sub48531-69148
sub48531-69158
sub48531-69216
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-69165
sub48531-69138
sub48531-69158
sub48531-69216
sub48541-69058
48702BBUSH SUB-ASSY, TRAILING ARM, NO.1
48710CCUSHION(FOR REAR TRAILING ARM)
48710DRETAINER, CUSHION, NO.1(FOR REAR TRAILING ARM)
48710ERETAINER, CUSHION, NO.2(FOR REAR TRAILING ARM)
48710FBOLT(FOR REAR TRAILING ARM)
48710GBRACKET, TRAILING ARM, RH
48710HBRACKET, TRAILING ARM, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
FRAME SIDE
FRAME SIDE
AXLE HOUSING SIDE,FR
AXLE HOUSING SIDE,RR
AXLE HOUSING SIDE
9010514034
main90105-14034
9011908080
main90119-08080
9011910085
main90119-10085
9011910374
main90119-10374
9011912088
main90119-12088
9017016006
main90170-16006
9017116002
main90171-16002
9017916016
main90179-16016
9020114016
main90201-14016
9020116017
main90201-16017
9161560820
main91615-60820
9161961225
main91619-61225
9165561040
main91655-61040
9418401400
main94184-01400
9418461000
main94184-61000
9418461600
main94184-61600
9538104030
main95381-04030
40 parts on this diagram · 6 diagrams in section
