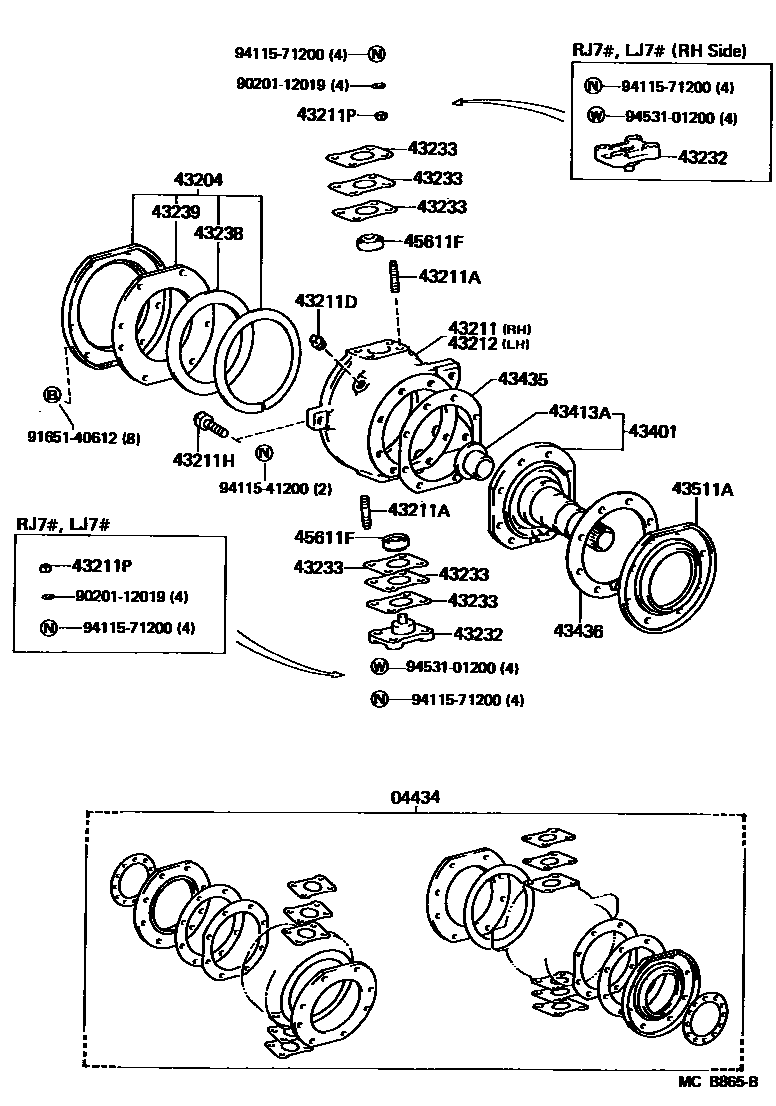

FRONT AXLE ARM & STEERING KNUCKLE
04434GASKET KIT, FRONT AXLE OVERHAUL
sub04434-60021
43204SEAL SUB-ASSY, STEERING KNUCKLE OIL
43211ABOLT, STUD (FOR STEERING SET)
sub90126-12005
43211DPLUG (FOR STEERING KNUCKLE)
43211HBOLT, ROUND HEXAGON
43211PWASHER, CONE (FOR STEERING KNUCKLE)
43232CAP, STEERING KNUCKLE BEARING
43233SHIM, STEERING KNUCKLE ADJUST, NO.1
T=0.20,T=0.2
T=0.50,T=0.5
T=1.0,T=1.0
T=0.1,T=0.1
T=0.30,T=0.3
43238SEAL, STEERING KNUCKLE OIL, INNER
43239SEAL, STEERING KNUCKLE OIL, OUTER
43401SPINDLE SUB-ASSY, STEERING KNUCKLE
sub43401-60060
43413ABUSH, SOLID (FOR DRIVE SHAFT)
43435GASKET, KNUCKLE SPINDLE
43436GASKET, KNUCKLE SPINDLE OIL RETAINER
43511ASEAL, DUST (FOR FRONT AXLE HUB)
45611FBEARING(FOR STEERING KNUCKLE ARM)
sub90366-17007
9020112019
main90201-12019
9165140612
main91651-40612
9411541200
main94115-41200
9411571200
main94115-71200
9453101200
main94531-01200
23 parts on this diagram · 2 diagrams in section
