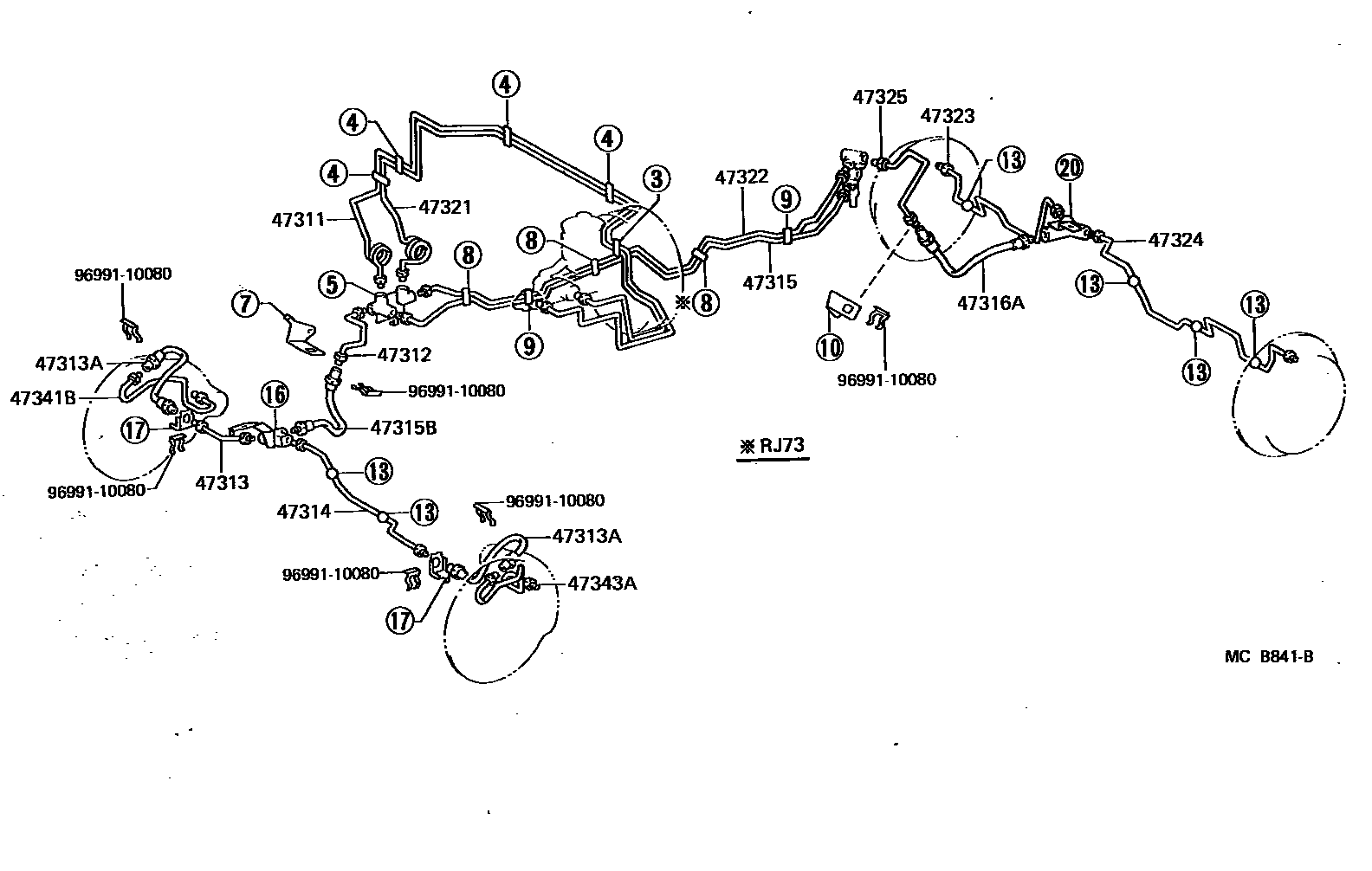

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
9699110080
main96991-10080
16 parts on this diagram · 8 diagrams in section
