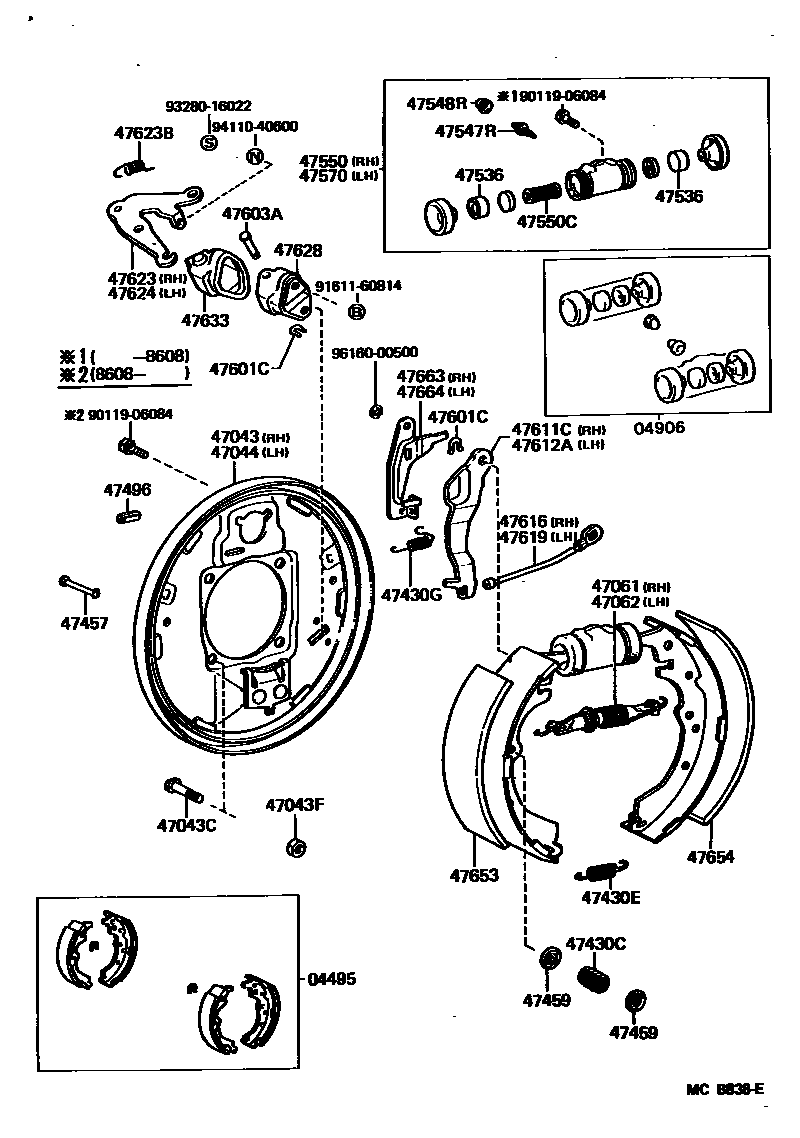

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
sub04495-26081
sub04495-26111
sub04495-40021
sub04495-60011
sub04495-60051
sub04495-60060
04906CUP KIT, REAR WHEEL CYLINDER
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
*10-1.25PX37-18.5
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47061STRUT SET, PARKING BRAKE SHOE, RH
47062STRUT SET, PARKING BRAKE SHOE, LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47601CWASHER, C(FOR REAR BRAKE)
T=1.2,T=1.2
T=1.6,T=1.6
47603APIN, W/HOLE(FOR REAR BRAKE)
47623CRANK, PARKING BRAKE BELL, NO.1
47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
47624CRANK, PARKING BRAKE BELL, NO.2
47628BRACKET, REAR BRAKE BELLCRANK
47633BOOT, PARKING BRAKE BELLCRANK
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
DENMARK SPEC
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
DENMARK SPEC
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
main90119-06084
9161160814
main91611-60814
9328016022
main93280-16022
9411040600
main94110-40600
9616000500
main96160-00500
40 parts on this diagram · 2 diagrams in section
