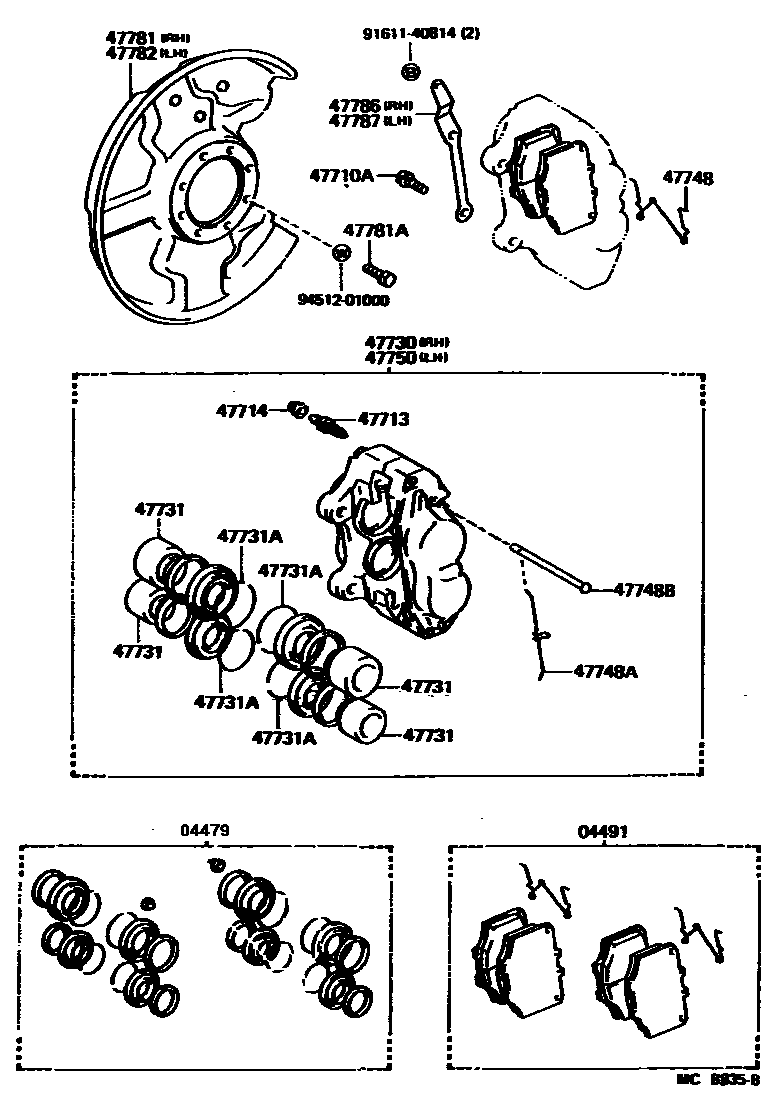

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30030iBJ7#,LJ7#,RJ7#198411-199001

sub04479-30031

04491PAD KIT, DISC BRAKE, FRONT

main04491-35080iLJ70..LHD198411-198808

sub04465-35170

main04491-60010iBJ7#198411-198808

sub04465-35170

main04491-60040iLJ70..RHD..VX198801-198808

DENMARK SPEC

sub04465-60060

main04491-60040iLJ7#,RJ7#198808-199001

sub04465-60060

main04491-60050iBJ7#198808-199001

sub04465-60060

main04491-60050iBJ73,75..(LX,STD)..CBU198801-198808

DENMARK SPEC

sub04465-60060

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12060iBJ7#,LJ7#,RJ7#198411-199001

*12-1.25PX38-23

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iBJ7#,LJ7#,RJ7#198411-199001

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBJ7#,LJ7#,RJ7#198411-199001

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35010iLJ7#,RJ7#198411-199001

main47730-60021iBJ7#198411-199001

47731PISTON, FRONT DISC BRAKE

main47731-30020iBJ7#,LJ7#,RJ7#198411-199001

OD=42.82

main47732-30010iBJ7#,LJ7#,RJ7#198411-199001

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iBJ7#,LJ7#,RJ7#198411-199001

PISTON OD=33.93

main90522-48044iBJ7#,LJ7#,RJ7#198411-199001

PISTON OD=42.82

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-30013iLJ7#,RJ7#198411-199001

main47748-60010iBJ7#198411-199001

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12003iBJ7#,LJ7#,RJ7#198411-199001

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06006iLJ7#,RJ7#198411-199001

main90240-06158iBJ7#198411-199001

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35010iLJ7#,RJ7#198411-199001

main47750-60021iBJ7#198411-199001

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-60020iBJ7#198411-199001

W/O AIR SCOOP

main47703-60031iBJ75198411-199001

W/AIR SCOOP

main47703-60040iLJ7#,RJ7#198411-199001

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iBJ7#,LJ7#,RJ7#198411-199001

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-60020iBJ7#198411-199001

W/O AIR SCOOP

main47704-60031iBJ75198411-199001

W/AIR SCOOP

main47704-60040iLJ7#,RJ7#198411-199001

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iBJ7#,LJ7#,RJ7#198411-199001

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iBJ7#,LJ7#,RJ7#198411-199001

9161140814

main91611-40814

9451201000

main94512-01000

19 parts on this diagram · 2 diagrams in section
