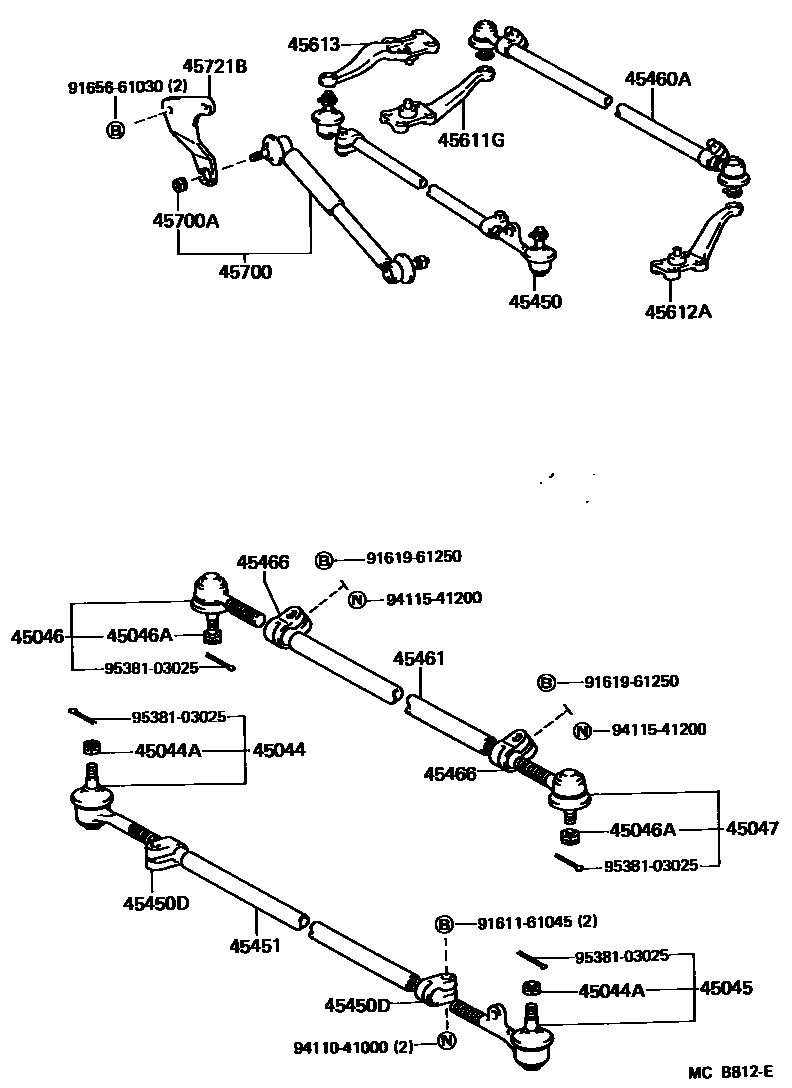

FRONT STEERING GEAR & LINK
45044END SUB-ASSY, STEERING RELAY ROD, RH
sub45044-60H02
sub45044-60H04
sub45044-69115
sub45045-60H02
sub45045-69065
45044ANUT, CASTLE(FOR RELAY ROD)
45045END SUB-ASSY, STEERING RELAY ROD, LH
sub45044-60H03
sub45044-60H05
sub45044-69125
sub45045-60H02
sub45045-69065
45046ANUT, CASTLE(FOR TIE ROD END)
45450DCLAMP, STEERING RELAY ROD END
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45611GARM, STEERING KNUCKLE, NO.1
45612AARM, STEERING KNUCKLE, NO.2
45613ARM, STEERING KNUCKLE, NO.3
45700DAMPER ASSY, STEERING
sub45700-69075
45700ANUT(FOR STEERING DAMPER)
9161161045
main91611-61045
9161961250
main91619-61250
9165661030
main91656-61030
9411041000
main94110-41000
9411541200
main94115-41200
9538103025
main95381-03025
24 parts on this diagram · 5 diagrams in section
