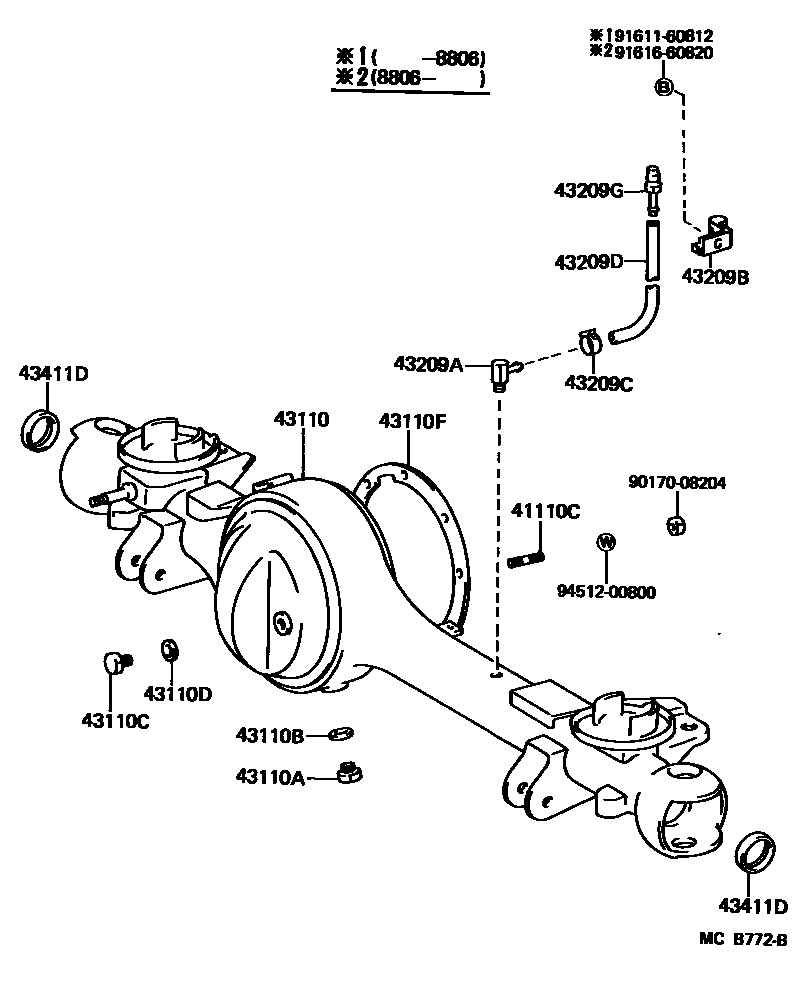

FRONT AXLE HOUSING & DIFFERENTIAL
41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)
S=14 & 14,L=42
S=14 & 14,L=42
S=17 & 12,L=37
S=16 & 12.5,L=40.5
S=18 & 12.5,L=53.5
S=19 & 12.5,L=78.4,W/*DL
43110HOUSING ASSY, FRONT AXLE
BRAKE DUST COVER=W/O AIR SCOOP
sub43110-60200
W/DIFFERENTIAL LOCK
BRAKE DUST COVER=W/AIR SCOOP
43110APLUG SUB-ASSY, DRAIN
43110BGASKET, DRAIN
43110CPLUG (FOR FRONT AXLE HOUSING)
43110DGASKET (FOR FRONT AXLE HOUSING PLUG)
43209AUNION (FOR FRONT AXLE BREATHER HOSE)
43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)
43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)
sub96132-51100
43209DHOSE, NO.1 (FOR FRONT AXLE BREATHER)
L=400,*H,L=380
43209GPLUG, BREATHER (FOR FRONT AXLE)
43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)
9017008204
main90170-08204
9161160812
main91611-60812
9161660820
main91616-60820
9451200800
main94512-00800
17 parts on this diagram · 6 diagrams in section
