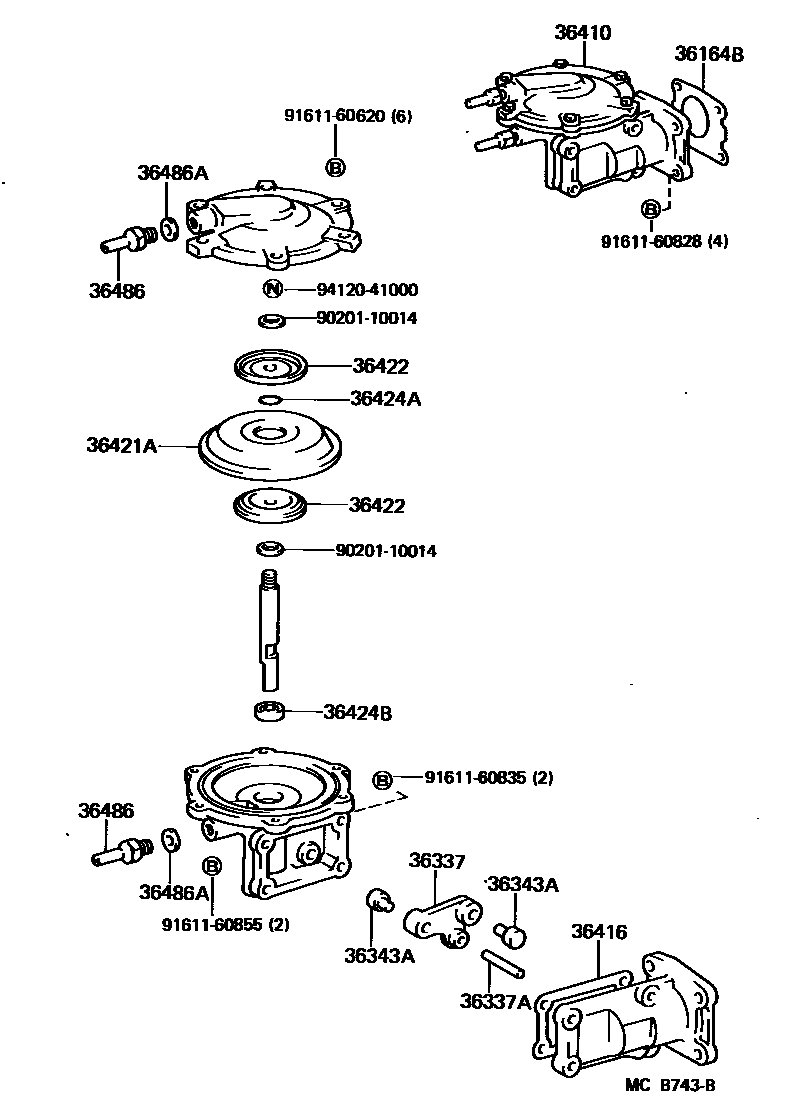

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

36164BGASKET, TRANSFER SHIFT SHAFT GUIDE

main36164-60040iBJ7#,LJ7#,RJ7#198411-199001

36337LEVER, FRONT DRIVE SHIFT LINK

main36337-60080iBJ7#,LJ7#,RJ7#198411-199001

36337APIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)

main90250-08024iBJ7#,LJ7#,RJ7#198411-199001

36343ASHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE)

main36343-60010iBJ7#,LJ7#,RJ7#198411-199001

OD=18

main36343-60040iBJ7#,LJ7#,RJ7#198411-199001

OD=12

36410CYLINDER ASSY, DIAPHRAGM

main36410-60030iBJ7#,LJ7#,RJ7#198411-199001

36416GASKET, DIAPHRAGM CYLINDER

main36416-36010iBJ7#,LJ7#,RJ7#198411-199001

36421ADIAPHRAGM (FOR DIAPHRAGM CYLINDER)

main36421-36010iBJ7#,LJ7#,RJ7#198411-199001

36422PLATE, TRANSFER DIAPHRAGM

main36422-36010iBJ7#,LJ7#,RJ7#198411-199001

36424ARING, O (FOR DIAPHRAGM PUSH ROD)

main96711-19010iBJ7#,LJ7#,RJ7#198411-199001

36424BSEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD)

main90311-13066iBJ7#,LJ7#,RJ7#198411-199001

36486TUBE, SUCTION

main36486-60010iBJ7#,LJ7#,RJ7#198411-199001

36486AGASKET (FOR SUCTION TUBE)

main90430-10022iBJ7#,LJ7#,RJ7#198411-199001

9020110014

main90201-10014

9161160620

main91611-60620

9161160828

main91611-60828

9161160835

main91611-60835

9161160855

main91611-60855

9412041000

main94120-41000

18 parts on this diagram · 1 diagram in section
