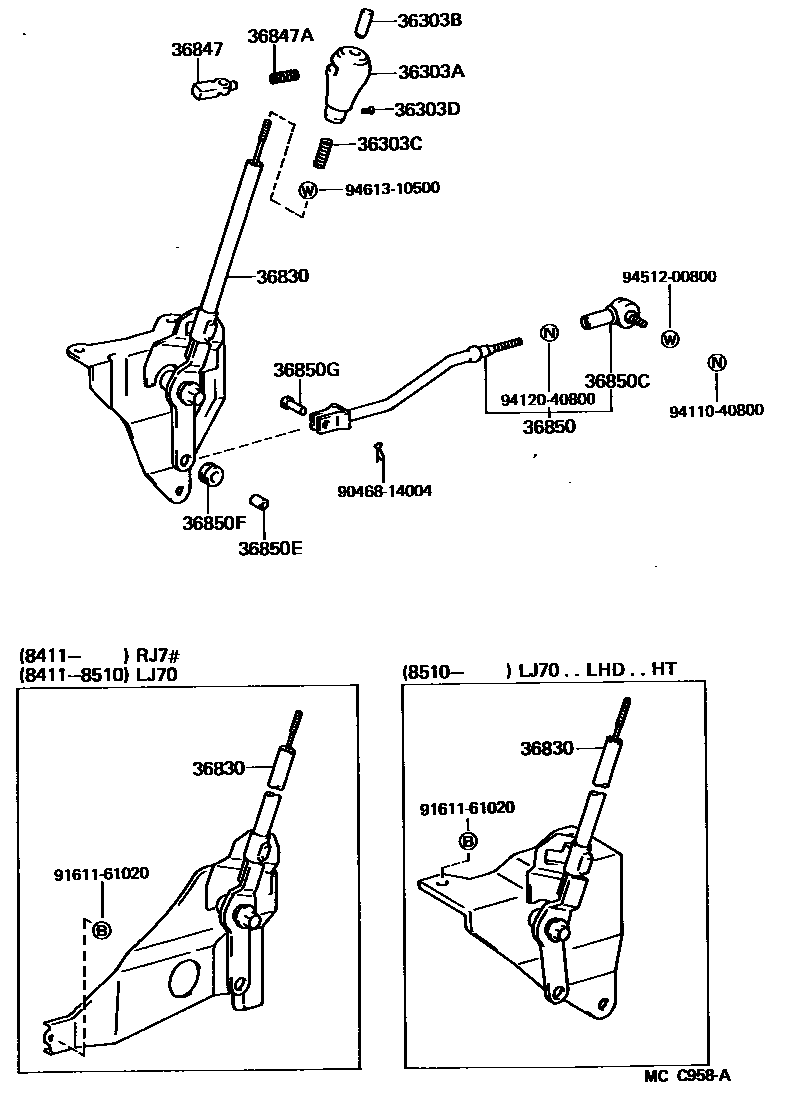

POWER TAKE-OFF LEVER & LINK

36303AKNOB SUB-ASSY, SHIFT LEVER (FOR POWER TAKE-OFF)

main36303-60140iBJ7#,RJ7#..LX,STD198411-199001

36303BBUTTON, SHIFT LEVER KNOB (FOR POWER TAKE-OFF)

main33623-60030iBJ7#,LJ70,RJ70198411-199001

36303CSPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-10073iLJ70..LHD..HT198411-199001

36303DSCREW (FOR SHIFT LEVER KNOB SETTING)

main90149-40004iBJ7#,LJ70,RJ70198411-199001

36830LEVER ASSY, POWER TAKE-OFF SHIFT

main36830-60060iBJ7#..LX,STD198411-199001

main36830-60080iRJ7#..CBR198411-199001

main36830-60110iLJ70..LHD..HT198510-199001

36847LEVER, POWER TAKE-OFF LOCK

main36847-60020iBJ7#,LJ70,RJ70198411-199001

36847ASPRING, COMPRESSION (FOR POWER TAKE-OFF LOCK LEVER)

main90501-05011iBJ7#,LJ70,RJ70198411-199001

36850ROD ASSY, POWER TAKE-OFF SHIFT

main36850-60040iLJ70,RJ70198411-199001

main36850-60050iRJ7#..CBR198411-199001

36850CEND ASSY, POWER TAKE-OFF SHIFT ROD

main33740-26010iBJ7#,RJ7#..(LX,STD)..(CBR,DSL,TD)198411-199001

36850EBUSH (FOR POWER TAKE-OFF SHIFT ROD)

main90389-08005iBJ7#,RJ7#..(LX,STD)..(CBR,DSL,TD)198411-199001

36850FGROMMET (FOR POWER TAKE-OFF SHIFT ROD)

main90480-17177iBJ7#,LJ70,RJ70198411-199001

36850GPIN, W/HOLE (FOR POWER TAKE-OFF SHIFT ROD)

main90240-08034iBJ7#,LJ70,RJ70198411-199001

9046814004

main90468-14004

9161161020

main91611-61020

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

9461310500

main94613-10500

18 parts on this diagram · 1 diagram in section
