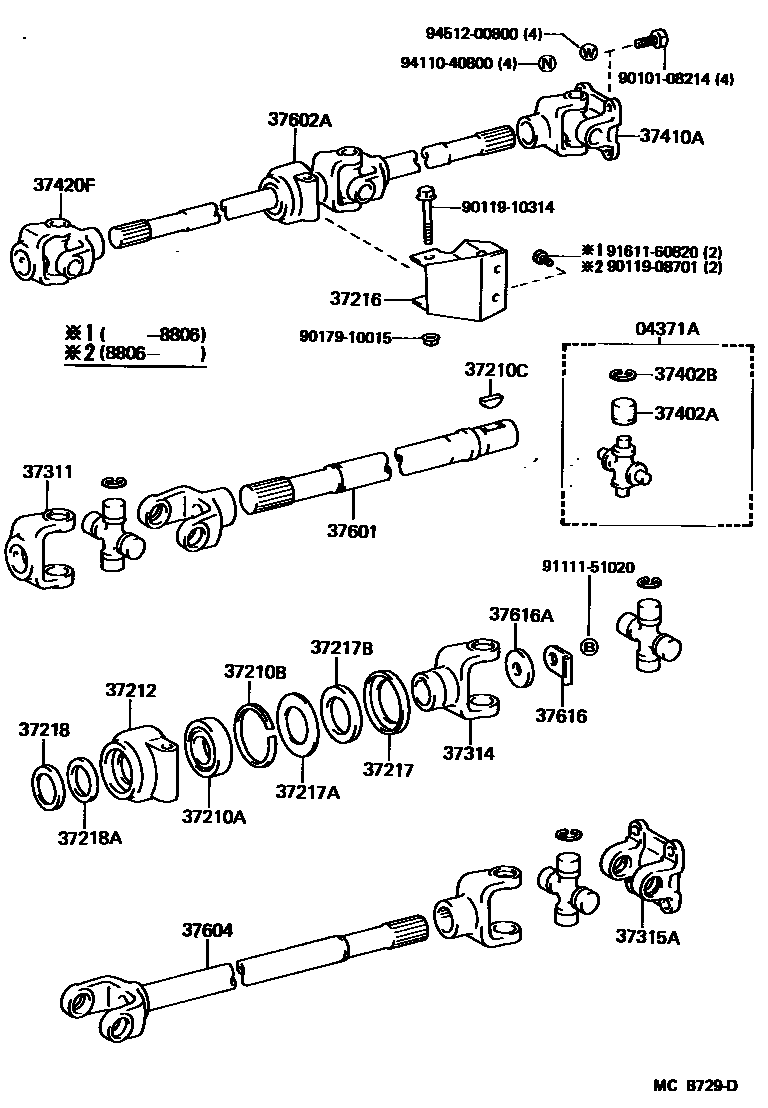

DRIVE SHAFT
04371ASPIDER KIT, UNIVERSAL JOINT(FOR WINCH DRIVE SHAFT)
37210ABEARING (FOR PILLOW BLOCK)
sub90363-25022
37210BRING, HOLE SNAP (FOR PILLOW BLOCK BEARING)
37210CKEY, WOODRUFF (FOR PILLOW BLOCK)
37212BODY, PILLOW BLOCK, NO.2
37216BRACKET, PILLOW BLOCK
RR
FR
37217RETAINER, DUST SEAL, NO.1
37217AWASHER, PLATE (FOR PILLOW BLOCK RETAINER)
37217BSEAL, DUST (FOR PILLOW BLOCK RETAINER)
37218RETAINER, DUST SEAL, NO.2
37218ASEAL, DUST (FOR NO.2 PILLOW BLOCK RETAINER)
37311YOKE, UNIVERSAL JOINT, NO.1 (FOR WINCH DRIVE SHAFT)
37314YOKE, UNIVERSAL JOINT SLEEVE
37315AYOKE, UNIVERSAL JOINT FLANGE (FOR WINCH DRIVE SHAFT)
37402ABEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (FOR WINCH)
37402BRING, HOLE SNAP (FOR WINCH DRIVE SHAFT SPIDER BEARING)
T=1.2,T=1.2
T=1.25,T=1.25
T=1.30,T=1.30
37410AJOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH)
37420FJOINT ASSY, UNIVERSAL, W/FLANGE YOKE
37601SHAFT SUB-ASSY, DRIVE, FRONT NO.1
37602ASHAFT SUB-ASSY, W/YOKE DRIVE, FRONT
37604SHAFT SUB-ASSY, DRIVE, FRONT NO.2
37616PLATE, DRIVE SHAFT LOCK
37616AWASHER (FOR DRIVE SHAFT LOCK PLATE)
9010108214
main90101-08214
9011908701
main90119-08701
9011910314
main90119-10314
9017910015
main90179-10015
9111151020
main91111-51020
9161160820
main91611-60820
9411040800
main94110-40800
9451200800
main94512-00800
31 parts on this diagram · 2 diagrams in section
