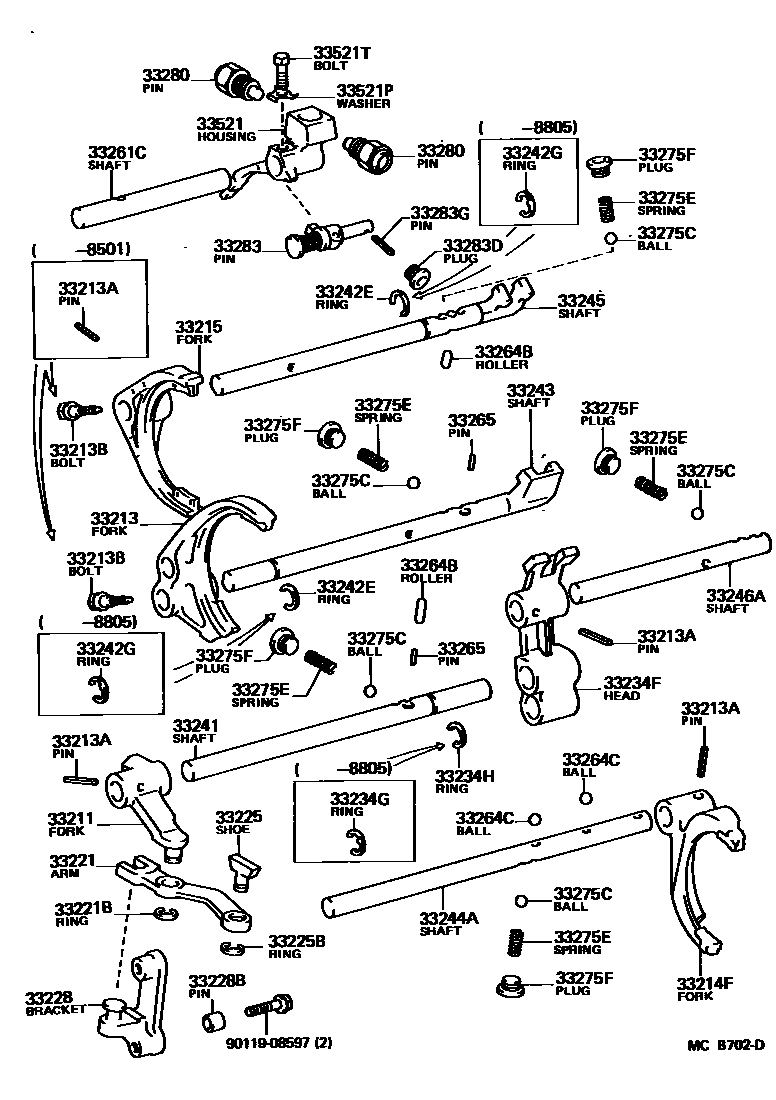

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33214FFORK, 5TH SHIFT
33215FORK, 3RD & 4TH SHIFT
sub33213-60051
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33234FHEAD, REVERSE & 5TH SHIFT
sub33202-60031
33234GRING, E (FOR REVERSE & 5TH SHIFT HEAD)
33234HRING, SNAP (FOR REVERSE & 5TH SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
sub33244-60040
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33242GRING, E (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33246ASHAFT, REVERSE & 5TH SHIFT HEAD
33261CSHAFT, SHIFT & SELECT LEVER
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=21.6,PIN,L=21.6
L=13.6,OD=9.5,L=13.6
L=17.9
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
L=11.5,OD=4.8
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=22.1
L=34.5
L=31.3
L=33.6
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521PWASHER, LOCK (FOR SHIFT LEVER HOUSING)
33521TBOLT (FOR SHIFT LEVER HOUSING)
9011908597
main90119-08597
37 parts on this diagram · 3 diagrams in section
