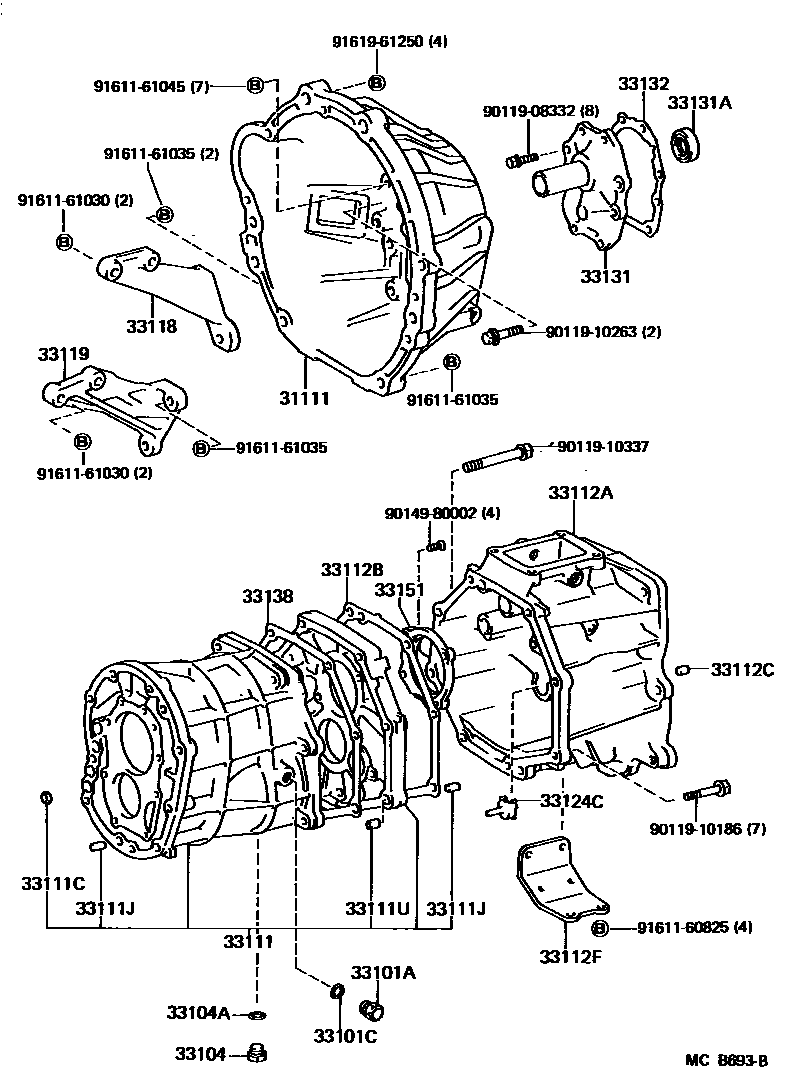

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
sub31111-22112
sub31111-35011
sub31111-60180
ITALY SPEC
ITALY SPEC,W/TACHOMETER
W/TACHOMETER
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=14,OD=10,L=14,OD=10
L=16,OD=12
L=17,OD=12,L=17,OD=12
L=14,OD=12,L=14,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=14,OD=15
33112BGASKET, TRANSFER ADAPTER
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
33112FBRACKET, TRANSFER ADAPTER
33118PLATE, STIFFENER, RH(MTM)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33132GASKET, FRONT BEARING RETAINER(MTM)
33138GASKET, INTERMEDIATE PLATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908332
main90119-08332
9011910186
main90119-10186
9011910263
main90119-10263
9011910337
main90119-10337
9014980002
main90149-80002
9161160825
main91611-60825
9161161030
main91611-61030
9161161035
main91611-61035
9161161045
main91611-61045
9161961250
main91619-61250
31 parts on this diagram · 5 diagrams in section
