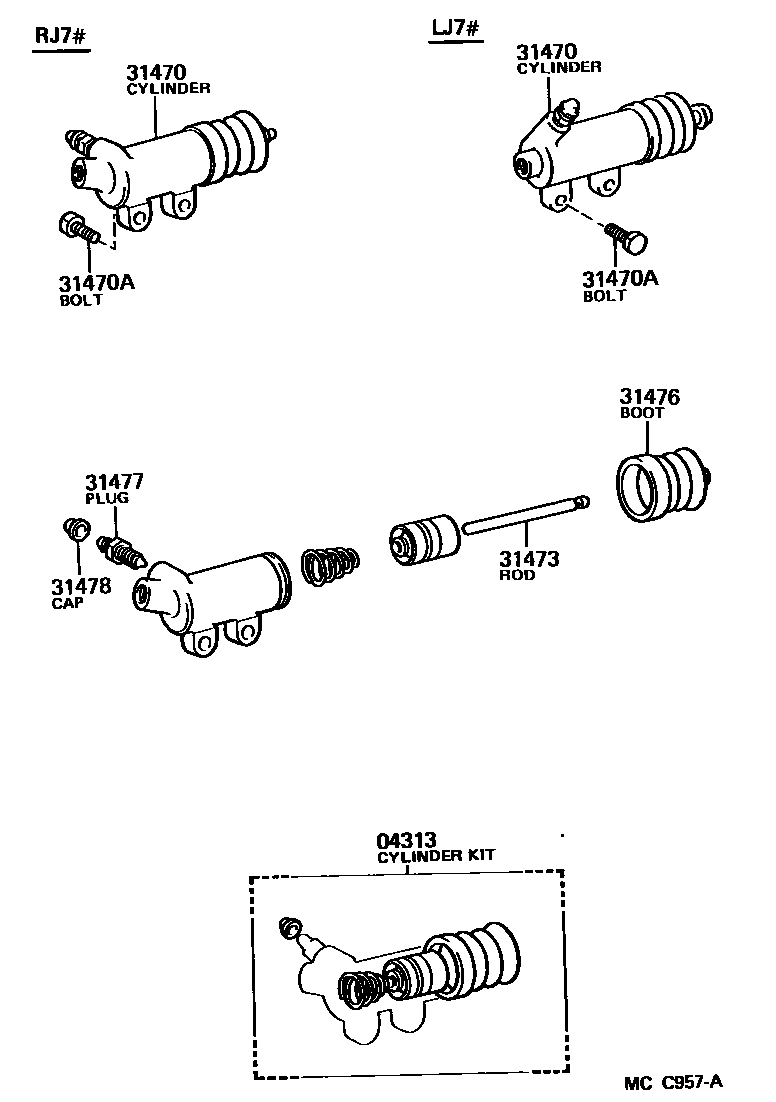

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLJ7#,RJ7#198411-199001

sub04313-12030

main04313-60050iBJ73198411-198510

ITALY SPEC

main04313-60050iBJ73..VM198510-199001

main04313-60060iBJ70,73,75..LX,STD198411-199001

main04313-60070iBJ71198510-199001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLJ7#198510-199001

sub31470-35110

main31470-30220iLJ70198411-198510

sub31470-30221

main31470-35050iRJ7#198411-199001

sub31470-30260

main31470-60100iBJ73198411-198510

ITALY SPEC

sub31470-60101

sub91611-41045

main31470-60100iBJ73..VM198510-198612

sub31470-60101

sub91611-41045

main31470-60101iBJ73..VM198612-199001

sub31470-60102

main31470-60120iBJ7#198411-198510

main31470-60130iBJ70,73,75..LX,STD198510-199001

main31470-60140iBJ71198510-199001

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iBJ73..VM198612-199001

main91611-60820iLJ7#198510-199001

*8-1.25PX20-20

sub91611-G0820

main91611-60825iLJ70,RJ70198411-199001

*8-1.25PX25-25

sub91611-B0825

main91611-60828iBJ7#..LX,STD198411-199001

*8-1.25PX28-28

main91611-61055iBJ73..VM198510-198612

main91611-61055iBJ73198411-198510

ITALY SPEC

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLJ7#,RJ7#198411-199001

main31473-60080iBJ73..VM198510-199001

main31473-60080iBJ73198411-198510

ITALY SPEC

main31473-60100iBJ7#198411-198510

main31473-60110iBJ70,73,75..LX,STD198510-199001

main31473-60120iBJ71198510-199001

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLJ7#,RJ7#198411-199001

main31476-36010iBJ73198411-198510

ITALY SPEC

main31476-36010iBJ73..VM198510-199001

main31476-60050iBJ7#..LX,STD198411-199001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ7#,LJ7#,RJ7#198411-199001

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ7#,LJ7#,RJ7#198411-199001

7 parts on this diagram · 3 diagrams in section
