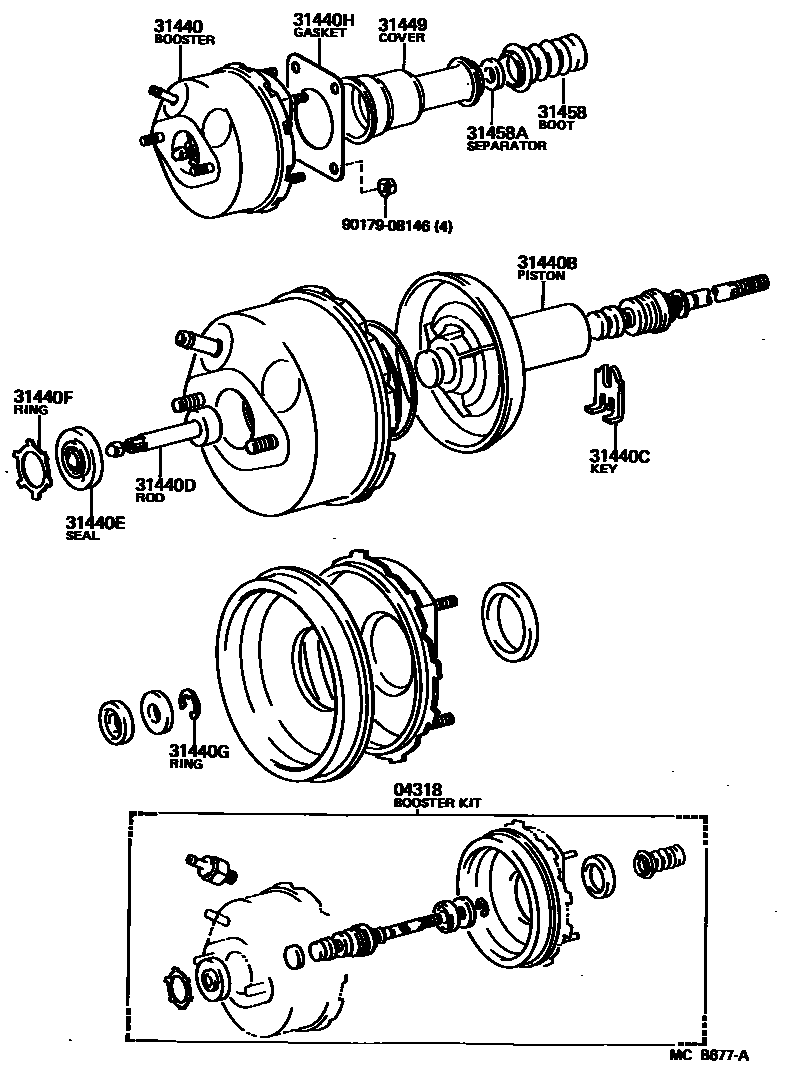

CLUTCH BOOSTER

0001 1 0002 1 0003 1

04318BOOSTER KIT, CLUTCH

main04318-60020iBJ7#..LHD..(LX,STD)198411-199001

main04318-60040iBJ70..RHD198608-198808

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-60040iBJ7#..LHD..(LX,STD)198411-199001

main31440-60070iBJ70..RHD198608-198808

31440BPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-87502iBJ7#..LX,STD198411-199001

31440CKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-12480iBJ7#..LX,STD198411-199001

31440DROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER)

main44606-12520iBJ7#..LX,STD198411-199001

31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)

main44621-28120iBJ7#..LX,STD198411-199001

31440FRING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER)

main44628-28120iBJ7#..LX,STD198411-199001

31440GRING, E(FOR CLUTCH BOOSTER AIR VALVE)

main96160-01000iBJ7#..LHD..(LX,STD)198411-199001

31440HGASKET, CLUTCH BOOSTER BRACKET

main44785-14010iBJ7#..LHD..(LX,STD)198411-199001

31449COVER, CLUTCH BOOSTER PISTON

main31449-60010iBJ7#..LHD..(LX,STD)198411-199001

31458BOOT, CLUTCH BOOSTER PISTON COVER

main31458-60010iBJ7#..LHD..(LX,STD)198411-199001

31458ASEPARATOR, AIR CLEANER(FOR CLUTCH BOOSTER)

main44672-22120iBJ7#..LHD..(LX,STD)198411-198610

9017908146

main90179-08146

13 parts on this diagram · 3 diagrams in section
