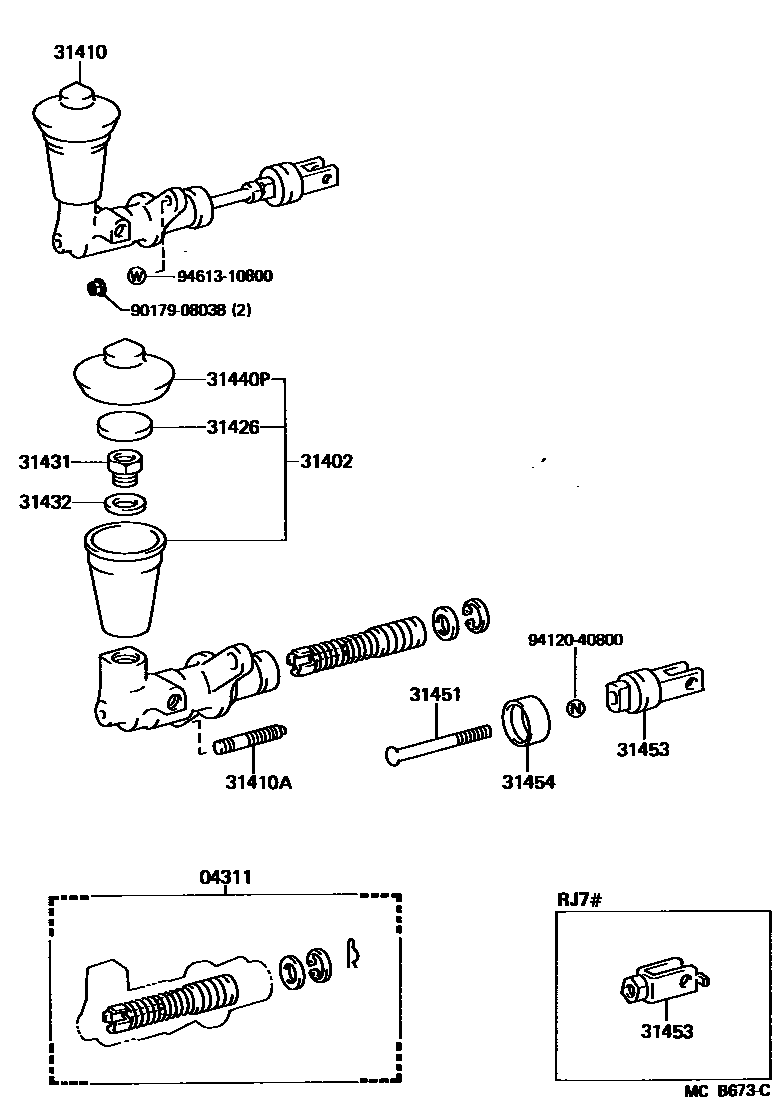

CLUTCH MASTER CYLINDER

0001 1 0004 1 0005 1 0006 1 0007 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12040iRJ70198610-198708

sub04311-12041

main04311-12041iRJ70198708-199001

sub04311-12050

main04311-17020iLJ7#198411-198703

sub04311-26040

main04311-22022iLJ7#198710-199001

sub04311-22050

main04311-26041iLJ7#198703-198710

main04311-60040iBJ7#..LX,STD198411-198703

W/CLUTCH BOOSTER

sub04311-60041

main04311-60041iBJ7#..LX,STD198703-198710

W/CLUTCH BOOSTER

sub04311-60042

main04311-60042iBJ7#..LX,STD198710-199001

W/CLUTCH BOOSTER

main04311-60050iBJ7#198411-198710

sub04311-60051

main04311-60051iBJ7#198710-199001

main04311-60070iRJ7#198411-198610

sub04311-12020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iBJ7#..LX,STD198411-199001

W/CLUTCH BOOSTER

main31402-30030iBJ7#198411-199001

main31402-60020iLJ70..RHD198608-199001

sub31402-30061

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60020iBJ7#..LHD..(LX,STD)198411-198703

W/CLUTCH BOOSTER

sub31401-60021

main31401-60021iBJ7#..LHD..(LX,STD)198703-198710

W/CLUTCH BOOSTER

sub31401-60022

main31401-60022iBJ7#..LHD..(LX,STD)198710-199001

W/CLUTCH BOOSTER

main31401-60030iBJ70..RHD198608-198703

W/CLUTCH BOOSTER

sub31401-60031

main31401-60031iBJ70..RHD198703-198710

W/CLUTCH BOOSTER

sub31401-60032

main31401-60032iBJ70..RHD198710-198808

W/CLUTCH BOOSTER

main31410-60190iLJ7#..LHD198411-198703

sub31410-60191

main31410-60191iLJ7#..LHD198703-198710

sub31410-60192

main31410-60192iLJ7#..LHD198710-198712

main31410-60210iRJ7#198411-198708

sub31410-60211

main31410-60211iRJ70198708-198805

sub31410-60212

main31410-60212iRJ7#198805-199001

sub31410-60192

main31410-60290iBJ7#198411-198710

sub31410-60291

main31410-60291iBJ7#198710-198805

sub31410-60292

main31410-60292iBJ7#198805-199001

main31410-60330iLJ70..RHD198608-198703

sub31410-60331

main31410-60331iLJ70..RHD198703-198710

sub31410-60332

main31410-60332iLJ70..RHD198710-199001

main31410-60340iLJ7#..LHD198712-199001

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iBJ7#,LJ7#,RJ7#198411-199001

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iBJ7#,LJ7#,RJ7#198411-199001

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ7#..LX,STD198411-199001

W/CLUTCH BOOSTER

main47231-20010iLJ70..RHD198608-199001

main47231-30010iLJ7#,RJ7#..LHD198411-199001

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLJ7#,RJ7#..LHD198411-199001

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iBJ7#,LJ7#,RJ7#198411-199001

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iRJ7#198411-198609

main31451-22070iLJ7#198609-199001

main31451-30060iLJ7#198411-198609

main31451-30120iRJ7#198609-199001

main31451-60070iBJ7#198411-199001

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30041iLJ7#198411-199001

main31404-36020iBJ7#198411-199001

sub31404-36021

main31404-36030iLJ7#..LHD198712-199001

sub31404-36031

main31453-22010iBJ7#..LHD..(LX,STD)198411-198610

W/CLUTCH BOOSTER

sub31453-35010

main31453-35010iBJ7#..LHD..(LX,STD)198610-199001

W/CLUTCH BOOSTER

main31453-60020iBJ70..RHD198608-198808

W/CLUTCH BOOSTER

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLJ7#,RJ7#198411-199001

main31454-30030iBJ7#198411-199001

main47265-20050iBJ7#..LX,STD198411-199001

W/CLUTCH BOOSTER

9017908038

main90179-08038

9412040800

main94120-40800

9461310800

main94613-10800

14 parts on this diagram · 5 diagrams in section
