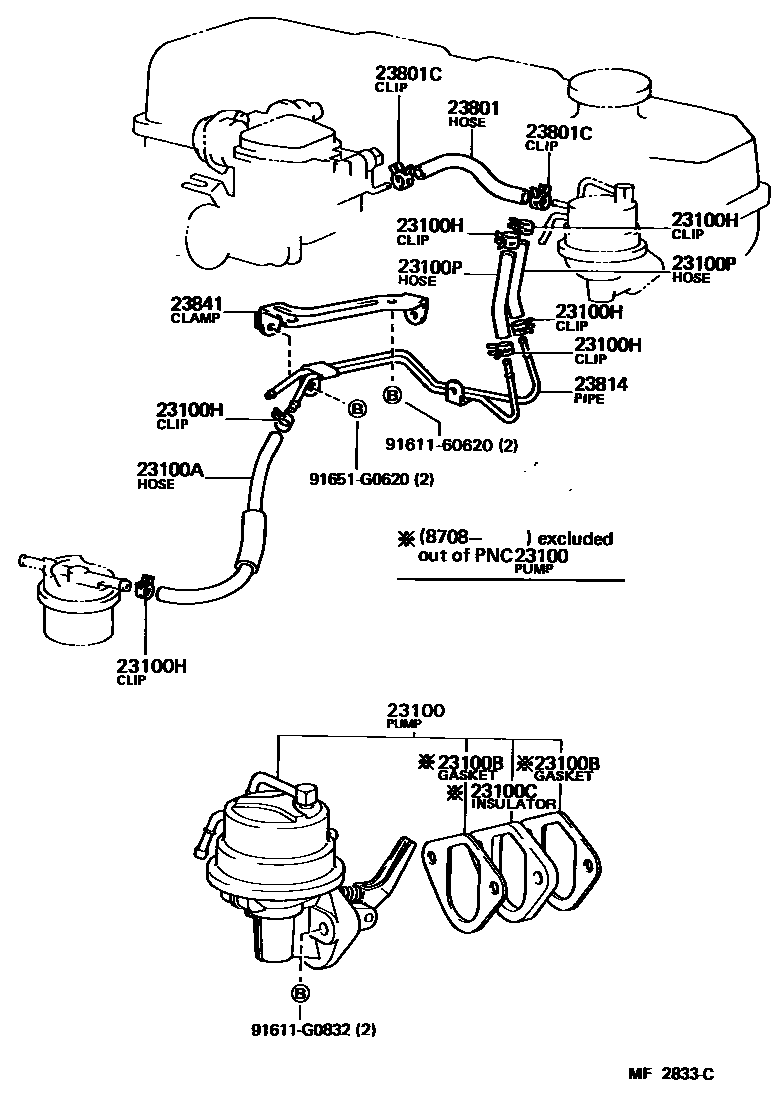

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-35031i22R..RJ70198708-198903

sub23100-39336

main23100-39336i22R..RJ7#198411-199001

23100AHOSE, FUEL

main23271-35060i22R..RJ70198411-198510

main90447-12058i22R..RJ7#198510-199001

23100BGASKET, FUEL PUMP

main90923-05005i22R..RJ7#198411-199001

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RJ7#198411-198808

sub90923-06009

main90923-06009i22R..RJ70198808-199001

23100HCLIP(FOR FUEL HOSE)

main96132-30600i22R..RJ70198808-199001

FILTER SIDE

sub96132-51100

main96132-30600i22R..RJ7#198411-198808

sub96132-51100

main96132-41100i22RE..RJ7#198808-199001

PUMP SIDE

sub96132-51100

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020i22R..RJ7#198411-198702

*H,L=120

sub95333-06020

main95333-06020i22R..RJ70198702-199001

*H,L=120

sub95337-06020

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-06020i22R..RJ7#198411-198702

L=200(*H,L=190)

sub95333-06020

main95333-06020i22R..RJ70198702-199001

L=200(*H,L=190)

sub95337-06020

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i22R..RJ7#198411-198808

sub96132-51100

main96132-41100i22R..RJ70198808-199001

sub96132-51100

23814PIPE, FUEL DELIVERY

main23814-37040i22R..RJ7#198411-199001

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i22R..RJ7#198411-199001

9161160620

main91611-60620

91611G0832

main91611-G0832

91651G0620

main91651-G0620

13 parts on this diagram · 1 diagram in section
