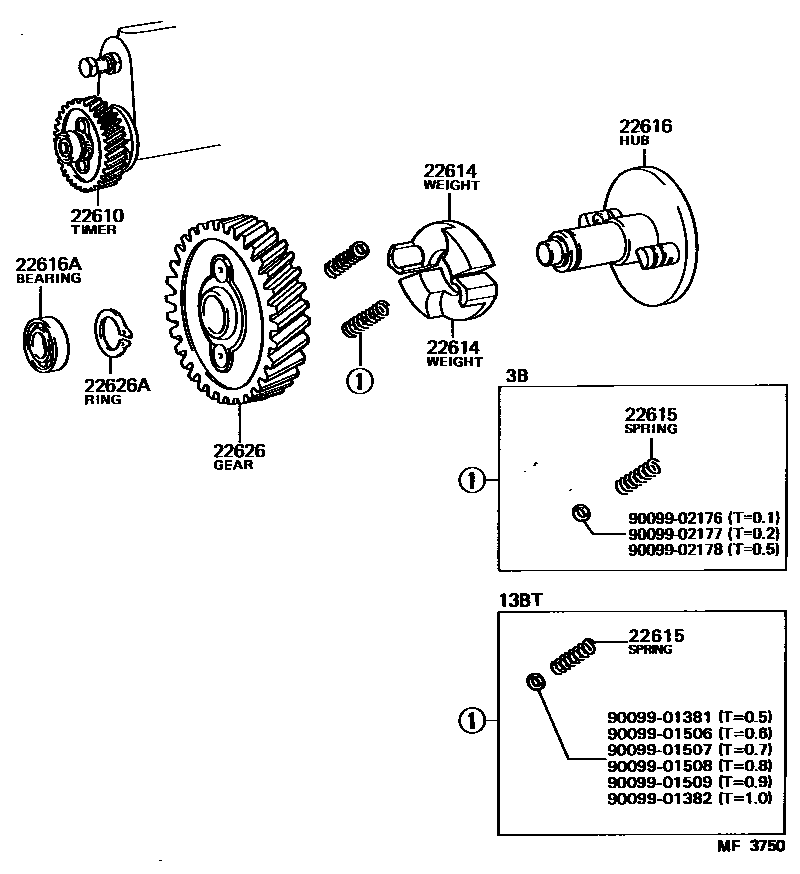

AUTOMATIC TIMER

22610TIMER ASSY, AUTOMATIC

main22610-58010i3B..BJ70,73,75198411-198808

main22610-58040i13BT..BJ71198510-199001

22614WEIGHT, TIMER

main22614-56020i3B..BJ70,73,75198411-198808

main22614-58040i13BT..BJ71198510-199001

22615SPRING, TIMER

main22615-56040i3B..BJ70,73,75198411-198808

main22615-58040i13BT..BJ71198510-199001

22616HUB, TIMER

main22616-56030i3B..BJ70,73,75198411-198808

main22616-58040i13BT..BJ71198510-199001

22616ABEARING(FOR TIMER HUB)

main90099-10018i13BT,3B..BJ7#198411-199001

22626GEAR, DRIVE

main22626-56050i3B..BJ70,73,75198411-198808

main22626-58020i13BT..BJ71198510-199001

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001i13BT,3B..BJ7#198411-199001

9009901381

main90099-01381

9009901382

main90099-01382

9009901506

main90099-01506

9009901507

main90099-01507

9009901508

main90099-01508

9009901509

main90099-01509

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

16 parts on this diagram · 1 diagram in section
