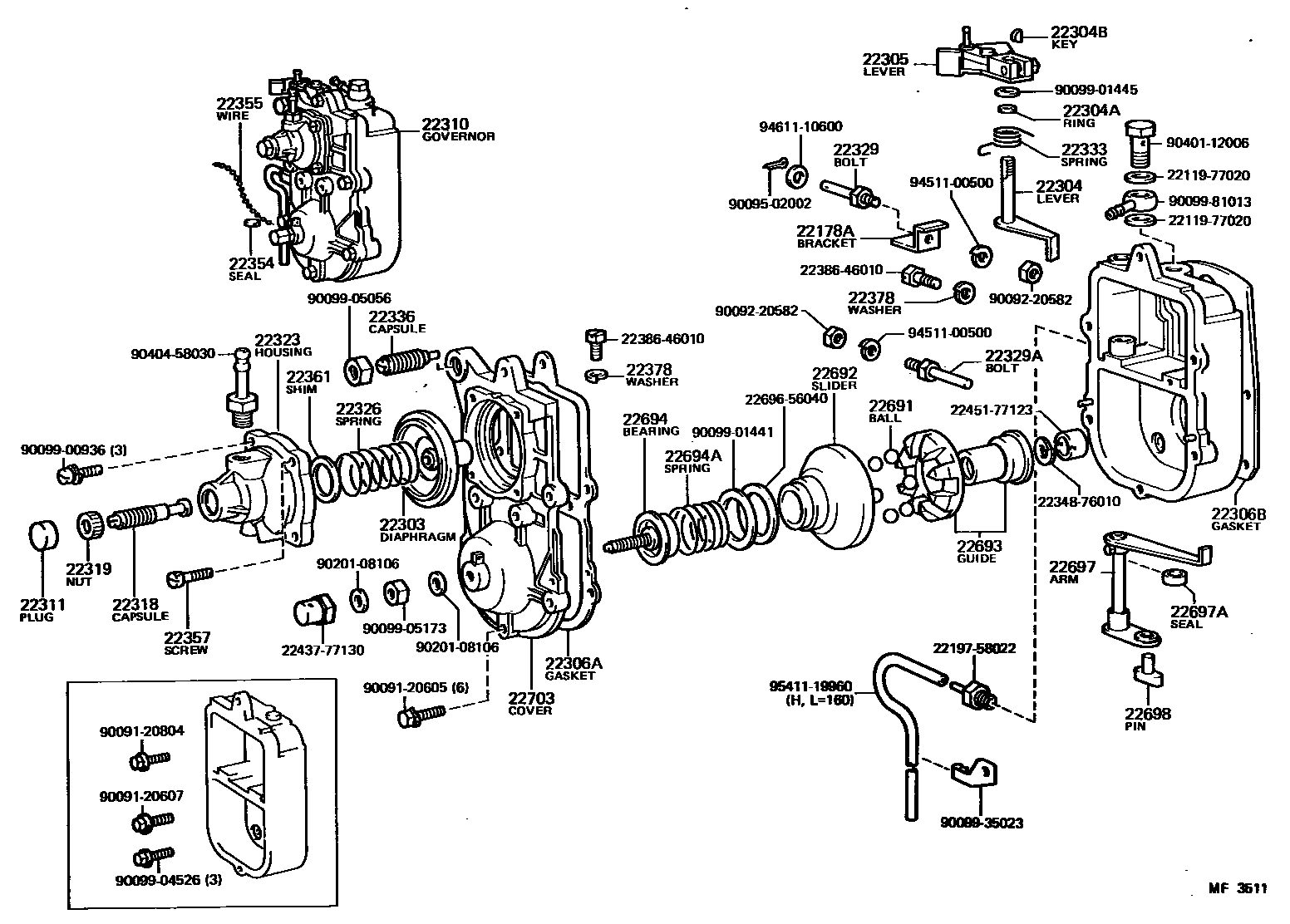

PNEUMATIC GOVERNOR
22178ABRACKET, DIAPHRAGM CONNECTING
22303DIAPHRAGM SUB-ASSY, GOVERNOR
22304LEVER SUB-ASSY, INJECTION PUMP, NO.3
22304BKEY(FOR NO.3 LEVER)
22305LEVER SUB-ASSY, INJECTION PUMP, NO.1
22306AGASKET(FOR GOVERNOR HOUSING)
22306BGASKET(FOR INJECTION PUMP HOUSING)
sub22442-58260
22310GOVERNOR ASSY, INJECTION PUMP
22311PLUG, DIAPHRAGM HOUSING SEALING SCREW
22318CAPSULE, IDLING
22319NUT, GOVERNOR IDLING SPRING SET
22323HOUSING, GOVERNOR DIAPHRAGM
22326SPRING, GOVERNOR MAIN
22329BOLT, DIAPHRAGM CONNECTING
22329ABOLT, DIAPHRAGM CONNECTING, NO.2
22333SPRING, DIAPHRAGM STOP LEVER RETURN
22336CAPSULE, FULL STOP
22354SEAL, LEAD
22355WIRE, GOVERNOR HOUSING SEAL
22357SCREW, DIAPHRAGM HOUSING SET
22361SHIM, MAIN SPRING
T=3.0,T=3.0
T=2.0,T=2.0
T=1.0,T=1.0
T=0.5,T=0.5
22691BALL, SPEED CONTROL
22692SLIDER(FOR SPEED CONTROL)
22693GUIDE, BALL
22694BEARING SUB-ASSY
22694ASPRING, SPEED CONTROL
22697ARM SUB-ASSY
22697ASEAL, OIL(FOR NO.3 LEVER)
22698PIN, SHIFTING
22703COVER, GOVERNOR
2211977020WASHER, AIR BLEEDER NIPPLE
main22119-77020
2219758022NIPPLE, OVER FLOW
main22197-58022
2234876010BUSH, GEAR SHAFT
main22348-76010
2238646010SCREW(FOR INJECTION PUMP GOVERNOR)
main22386-46010
2243777130ARM, SPRING
main22437-77130
2245177123ADAPTER
main22451-77123
2269656040SEAT, INJECTION PUMP SPRING, NO.1
main22696-56040
9009120605
main90091-20605
9009120607
main90091-20607
9009120804
main90091-20804
9009220582
main90092-20582
9009502002
main90095-02002
9009900936
main90099-00936
9009901441
main90099-01441
9009901445
main90099-01445
9009904526
main90099-04526
9009905056
main90099-05056
9009905173
main90099-05173
9009935023
main90099-35023
9009981013
main90099-81013
9020108106
main90201-08106
9040112006
main90401-12006
9040458030
main90404-58030
9451100500
main94511-00500
9461110600
main94611-10600
9541119960
main95411-19960
58 parts on this diagram · 1 diagram in section
